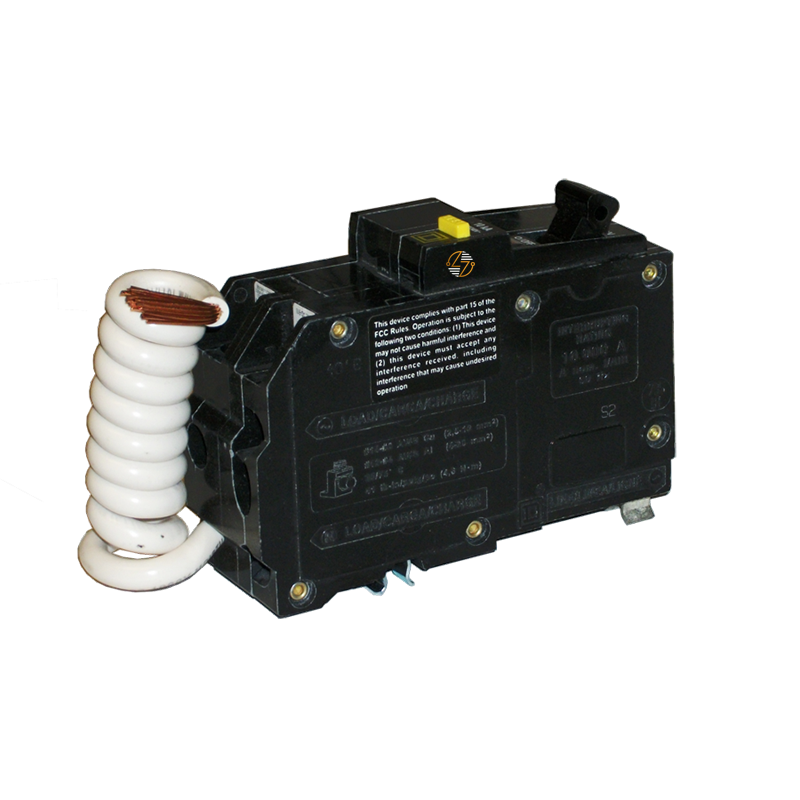

QO260GFI - 60 Amp Circuit Breaker

QO260GFI - 60 Amp Circuit Breaker

The Schneider Electric QO260GFI 60A Circuit Breaker is built to keep your electrical system safe and running smoothly. Designed for both AC and DC applications, this two-pole breaker handles 60 Amps and operates at 120/240VAC with a 10 kA interrupt rating. What sets it apart is its added ground fault protection, which trips at 6mA, helping prevent electrical hazards before they become serious problems. With its straightforward plug-in design and included pigtail connection, installation is quick and hassle-free.

Key Features and Benefits

• Added Safety: Offers standard overcurrent protection plus Class A 6mA ground fault detection for an extra layer of protection.
• Easy to Spot Issues: The built-in VisiTrip™ indicator makes it obvious when the breaker has tripped, saving time when troubleshooting.
• Fits Easily: Compact size (4.1” x 1.5” x 2.9”) takes up minimal space in your panel.
• Built to Last: UL Listed and CSA Certified, meeting strict safety and quality standards for long-term reliability.
• Eco-Conscious: RoHS and REACh compliant, mercury-free, and halogen-free—safer for both you and the environment.

Technical Specifications

• Amperage: 60 Amps
• Interrupt Rating: 10 kA at 120/240V AC
• Voltage: 120/240V AC
• Poles: 2-pole
• Trip Type: Thermal-magnetic with 6mA ground fault protection
• Mounting: Plug-in
• Wire Size: Copper AWG 14–6; Aluminum AWG 12–4
• Torque: 44.3 lbf.in (5 N.m)
• Dimensions:
  • Height: 4.1 inches
  • Width: 1.5 inches
  • Depth: 2.9 inches
• Weight: 0.981 lbs

Material Compliance and Certifications

• Certifications: UL Listed (UL File E84967) and CSA Certified (CSA Master Contract 153555)
• Environmental Compliance: RoHS/REACh compliant, mercury-free, halogen-free, and Green Premium™ label for meeting high environmental standards.

Where It Works Best

• This breaker is a solid choice for a wide range of applications. It’s commonly used in homes, small businesses, and light industrial setups to protect HVAC units, lighting circuits, and power distribution panels. If you need reliable overcurrent and ground fault protection in one breaker, the QO260GFI makes it simple and dependable.
