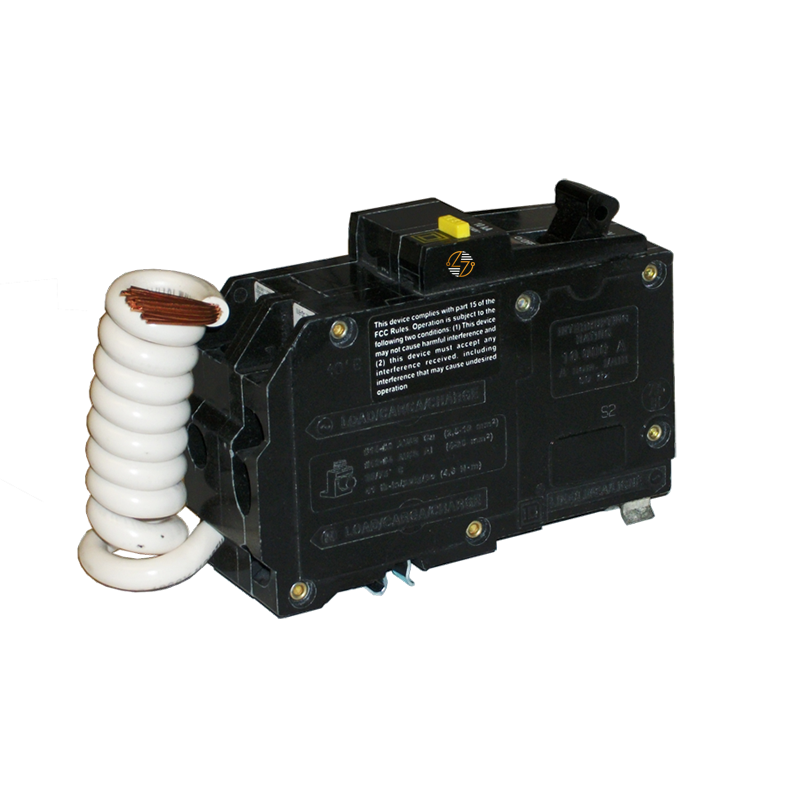

QO220GFI - 20 Amp Circuit Breaker

QO220GFI - 20 Amp Circuit Breaker

The Schneider Electric QO220GFI is a high-quality, dependable miniature circuit breaker built to deliver advanced safety and reliable performance for both residential and commercial electrical systems. Designed as a 2-pole breaker with a 20-amp rating and a 120/240VAC voltage capacity, this unit is ideal for protecting circuits where ground fault protection is required. With a 10kA interrupting rating and built-in Class A ground fault protection (6mA trip threshold), it quickly shuts off power during ground faults to help prevent electrical hazards and equipment damage. The breaker’s plug-in design makes installation fast and straightforward, fitting seamlessly into QO load centers. It also features Schneider Electric’s trusted Qwik-Gard™ technology for consistent, high-level protection and peace of mind.

Key Features and Benefits

• Comprehensive Protection: Safeguards circuits from overloads, short circuits, and ground faults with a 6mA trip sensitivity for enhanced safety.
• High Interrupting Rating: Delivers a 10kA interrupting capacity to handle fault currents safely and maintain system reliability.
• Easy Installation: Plug-in mounting makes setup quick and straightforward, with compatibility for QO distribution panels.
• VisiTrip™ Indicator: A built-in visual trip indicator helps you instantly identify and reset tripped breakers without guesswork.
• Qwik-Gard™ Technology: Offers dependable ground fault protection trusted by professionals for residential and commercial use.
• Eco-Friendly Design: Part of Schneider Electric’s Green Premium™ line, meeting strict environmental and safety standards.


Technical Specifications

• Amperage: 20 Amp

• Poles: 2-Pole

• Interrupting Capacity: 10kA at 120/240VAC

• Voltage Rating: 120/240 Volts AC

• Mounting Type: Plug-in

• Breaker Type: Class A Ground Fault (6mA)

• Dimensions:
  • Height: 4.1 in (105 mm)
  • Width: 1.5 in (38 mm)
  • Depth: 2.9 in (74 mm)
• Weight: 1 lb (0.454 kg)

• Compatible Wire Sizes: AWG 14–8 copper or aluminum

• Torque Requirements: 35.4 lbf.in (4 N.m) copper, 40.7 lbf.in (4.6 N.m) aluminum


Material Compliance and Certifications

• Green Premium™ Product: Meets environmental guidelines and ensures transparent reporting of environmental impact.
• Hazard-Free: Complies with RoHS and REACh standards, free from mercury and halogens.
• Certifications: UL Listed (UL File E84967) and CSA Certified (Master Contract 153555) for safety and performance assurance.

• Temperature Rating: Operates reliably in environments up to 104°F (40°C).


Where It Works Best

• The QO220GFI is an excellent choice for homes and businesses that require dependable circuit protection with added ground fault safety. Commonly used in kitchens, bathrooms, garages, workshops, and outdoor circuits, this breaker helps safeguard people and property from electrical hazards while maintaining efficient power distribution.
