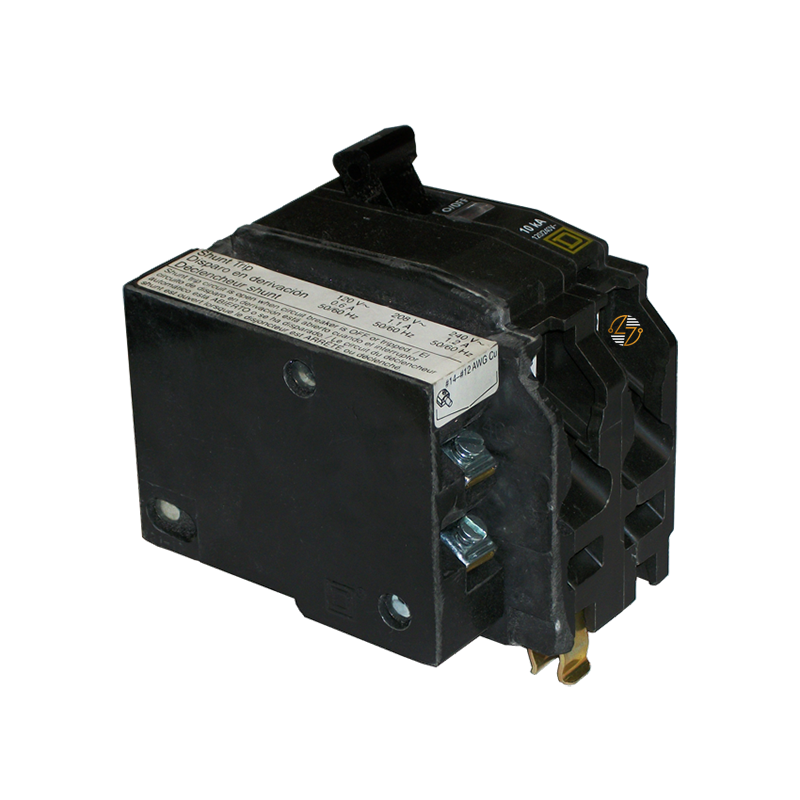

QO2201021 - 20 Amp Circuit Breaker

QO2201021 - 20 Amp Circuit Breaker

The QO2201021 is a 20-amp, 2-pole Type QO plug-on circuit breaker equipped with a 120VAC shunt trip device for applications that require remote breaker operation. In addition to providing protection against overloads and short circuits, the built-in shunt trip allows the breaker to open from a remote signal, making it a practical choice for emergency shutdown systems, fire alarm integration, and other control applications. Its plug-on design makes installation straightforward in compatible Type QO load centers and panelboards, while the 10kA interrupting rating at 120/240VAC provides dependable protection for a variety of commercial and industrial branch circuits. If you're replacing an existing breaker or maintaining an electrical distribution system, this model offers the convenience of remote tripping without sacrificing the reliable performance expected from a Type QO breaker.

Key Features and Benefits

• 20 Amp Thermal-Magnetic Circuit Breaker: Provides protection against overloads and short circuits.
• 2-Pole Configuration: Designed for applications requiring a 2-pole circuit breaker.
• Type QO Plug-On Mounting: Makes installation straightforward in compatible Type QO load centers and panelboards.
• Integrated 120VAC Shunt Trip: Allows remote breaker operation for emergency shutdown systems, fire alarm integration, and other control applications.
• 10kA Interrupting Capacity: Rated at 120/240VAC to provide dependable protection for a variety of commercial and industrial branch circuits.

Technical Specifications

• Part Number: QO2201021

• Type: QO

• Poles: 2

• Amperage: 20A

• Voltage: 120/240VAC

• Interrupt Rating: 10kA A.I.C.

• Shunt Trip: 120VAC

• Mounting: Plug-On

• Dimensions:
  • Height: 3.0 in.
  • Width: 2.25 in.
  • Depth: 2.5 in.

Material Compliance and Certifications

• Compatible Systems: Manufactured for use in compatible Type QO electrical systems.
• Voltage Rating: Rated for 120/240VAC applications.
• Interrupting Capacity: 10kA interrupting capacity.
• Installation: Install according to applicable electrical codes and manufacturer recommendations.

Where It Works Best

• The QO2201021 is commonly used anywhere remote breaker tripping is required. You'll often find it in commercial buildings, manufacturing facilities, schools, hospitals, and other installations where emergency shutdown capability is part of the electrical design. It's also a good fit for HVAC equipment, machinery controls, fire alarm interfaces, and building automation systems that rely on remotely operated circuit protection.
