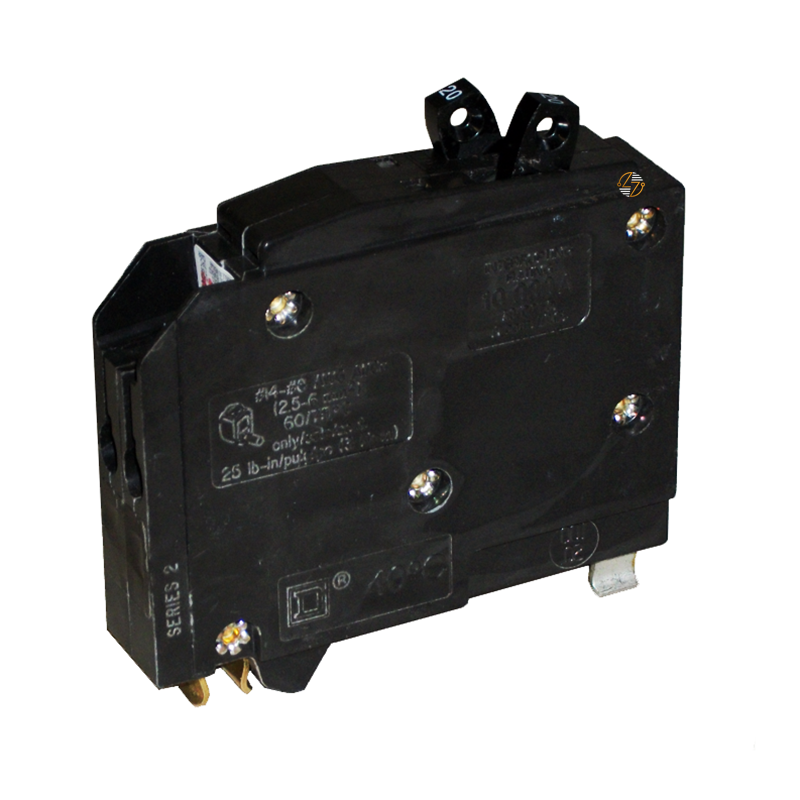

QO2030 Duplex 20/30 Circuit Breaker

QO2030 Duplex 20/30 Circuit Breaker

Running out of room in your electrical panel doesn't always mean it's time for a larger panel. The QO2030 duplex circuit breaker is made for situations where space is limited but another circuit is needed. By combining a 20 amp and 30 amp breaker into a single breaker space, it lets you add capacity without giving up two full positions.

This Type QO plug-on circuit breaker installs into compatible QO load centers and provides dependable protection against overloads and short circuits with a 10kA interrupting rating at 120VAC. Whether you're replacing a damaged breaker or making room for an additional branch circuit during a remodel, the compact design helps make the most of the panel you already have.

For electricians and maintenance professionals, it's a practical solution when every breaker space matters. For homeowners upgrading an existing panel, it can be an easy way to expand available circuits without a more extensive electrical project.

Key Features and Benefits

• Combines 20 amp and 30 amp protection into one compact breaker: Combines 20 amp and 30 amp protection into one compact breaker.
• Saves valuable panel space with a duplex design: Saves valuable panel space with a duplex design.
• Plug-on installation for compatible Type QO load centers: Plug-on installation for compatible Type QO load centers.
• 10kA interrupting capacity at 120VAC: 10kA interrupting capacity at 120VAC.
• Helps protect branch circuits from overloads and short circuits: Helps protect branch circuits from overloads and short circuits.
• Good choice for panel upgrades, remodeling projects, and breaker replacements: Good choice for panel upgrades, remodeling projects, and breaker replacements.


Technical Specifications

• Part Number: QO2030

• Type: QO

• Poles: Duplex

• Amperage: 20/30 Amp

• Voltage: 120VAC

• Interrupting Rating: 10kA @ 120VAC

• Dimensions:
  • Height: 3.25 in.
  • Width: 0.75 in.
  • Depth: 2.31 in.

Material Compliance and Certifications

• Industry Standards: The QO2030 is manufactured for use in compatible electrical distribution equipment and is designed to meet applicable industry performance standards for its product category.
• Installation Requirements: Always verify panel compatibility before installation and follow the National Electrical Code (NEC), local electrical codes, and manufacturer installation instructions.


Where It Works Best

• The QO2030 is commonly used in residential homes, apartments, condominiums, retail buildings, offices, and other light commercial properties. It's especially useful during electrical panel upgrades, renovations, or service work where adding another circuit is necessary but available breaker space is limited.
