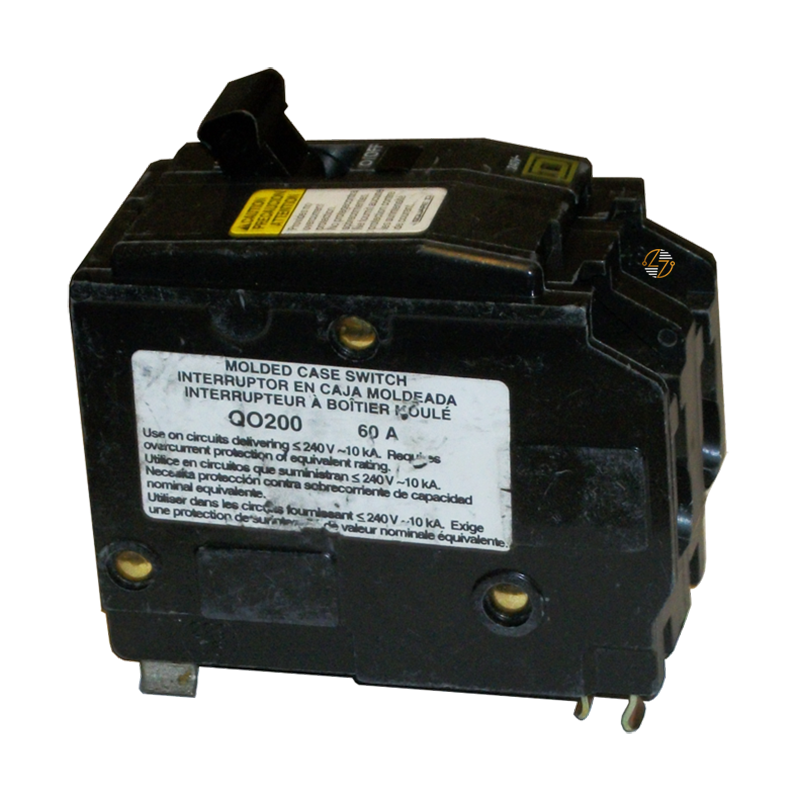

QO200 - 60 Amp Molded Case Switch

QO200 - 60 Amp Molded Case Switch

When your electrical system needs a dependable way to safely disconnect power, the QO200 molded case switch is a practical solution. Designed as a 2-pole, 60-amp Type QO molded case switch, this device gives you a reliable manual disconnect for 120/240VAC electrical systems where overcurrent protection is already provided elsewhere. Whether you're servicing HVAC equipment, isolating machinery for maintenance, or working within a compatible QO panel, the QO200 helps simplify the job with dependable switching performance and a compact design that fits easily into compatible load centers.

One important distinction is that the QO200 is a molded case switch—not a circuit breaker. It does not provide overcurrent or short-circuit protection. Instead, it's intended for applications where a dedicated disconnecting means is required while another protective device handles fault protection. With a 10kA interrupting rating at 120/240VAC, this switch is suitable for circuits delivering up to 240 volts AC, making it a dependable choice for residential, commercial, and light industrial electrical systems. Its straightforward design makes installation and future maintenance more convenient for electricians, contractors, and facility managers alike.

Key Features and Benefits

• Dependable Manual Disconnect: Provides a dependable manual disconnect for compatible electrical systems.
• 60 Amp Rating: 60 Amp current rating for a variety of residential and commercial applications.
• 2-Pole Configuration: 2-pole configuration for use on 120/240VAC circuits.
• Type QO Compatibility: Compatible with Type QO load centers and panelboards.
• Interrupting Capacity: 10kA A.I.C. rating at 120/240VAC.
• Compact Design: Compact size helps maximize available panel space.
• Dedicated Disconnect: Ideal when a disconnect is required and overcurrent protection is supplied by another device.
• Reliable Application: Trusted choice for maintenance, equipment isolation, and electrical service work.

Technical Specifications

• Part Number: QO200
• Product Type: Molded Case Switch
• Type: QO
• Poles: 2
• Amperage: 60 Amps
• Voltage Rating: 120/240VAC
• A.I.C. Rating: 10kA @ 120/240VAC
• Dimensions:
  • Height: 3.13 in.
  • Width: 1.50 in.
  • Depth: 2.75 in.
• Overcurrent Protection: None – This item provides NO overcurrent protection

Material Compliance and Certifications

• Compatibility: Designed for use in compatible Type QO electrical distribution equipment.
• Electrical Rating: Rated for use on 120/240VAC circuits with a 10kA interrupting capacity.
• Industry Standards: Manufactured to meet applicable industry standards for molded case switches.
• Installation Note: Always verify compatibility with your electrical panel and application before installation.

Where It Works Best

• The QO200 molded case switch is an excellent choice anywhere a manual disconnect is needed without replacing the function of a circuit breaker. It's commonly used for:
  • HVAC disconnect applications
  • Motor and equipment isolation
  • Electrical maintenance and servicing
  • Residential load centers
  • Commercial panelboards
  • Light industrial power distribution systems
