QO1520 Duplex 15/20 Circuit Breaker

QO1520 Duplex 15/20 Circuit Breaker

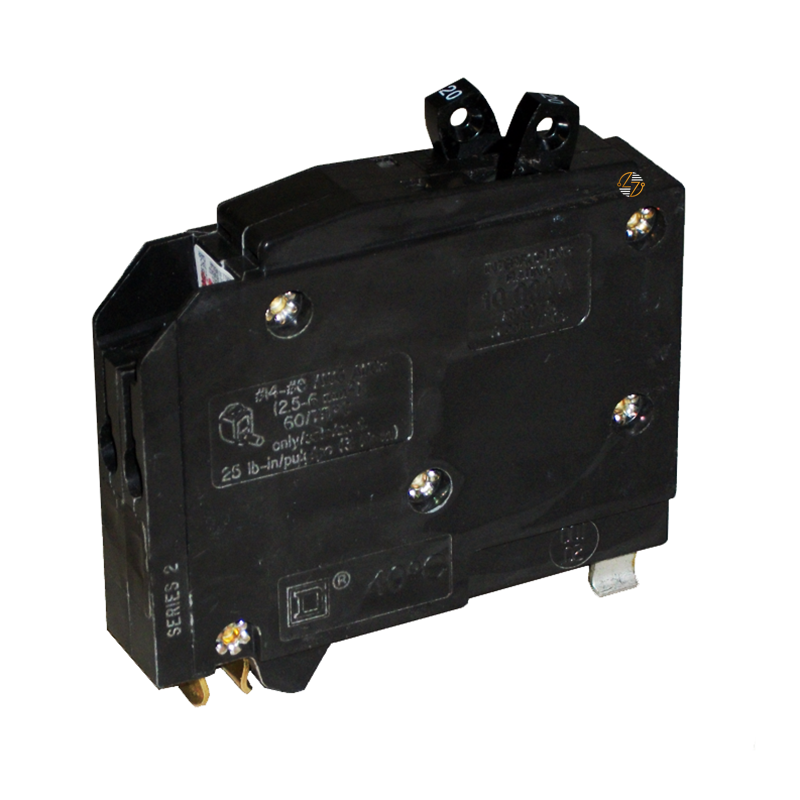

The QO1520 Duplex Plug-On Space-Saving Circuit Breaker is a practical solution for maximizing available panel space while delivering dependable overcurrent protection for residential and light commercial electrical systems. Designed as a Type QO duplex (tandem) circuit breaker, this unit combines 15-amp and 20-amp single-pole circuits into a compact, space-saving design, making it an excellent choice when additional branch circuits are needed without increasing panel size. Its plug-on installation allows for quick placement into compatible load centers, helping simplify maintenance, panel upgrades, and new installations. Built for reliable performance under normal operating conditions, the QO1520 provides a 10kA interrupting rating at 120VAC, helping protect electrical equipment and wiring from overloads and short circuits while maintaining the dependable operation expected from the QO product line.

Key Features and Benefits

• Duplex (Tandem) Design: Combines 15A and 20A circuits into a single space-saving breaker.
• Type QO Configuration: For compatibility with designated QO load centers.
• Plug-On Installation: Helps speed installation and replacement.
• 10kA A.I.C. Rating: 10kA @ 120VAC for dependable overcurrent protection.
• Branch Circuit Protection: Helps safeguard branch circuits from overloads and short-circuit conditions.
• Compact Footprint: Makes it ideal for maximizing available panel capacity.
• Application: Suitable for residential and light commercial electrical distribution applications.

Technical Specifications

• Part Number: QO1520
• Type: QO
• Breaker Style: Duplex (Space-Saving Plug-On)
• Poles: Duplex
• Amperage: 15A / 20A
• Voltage: 120VAC
• A.I.C. Rating: 10kA @ 120VAC
• Dimensions:
  • Height: 3.25 in.
  • Width: 0.75 in.
  • Depth: 2.31 in.

Material Compliance and Certifications

• Compatible Systems: Manufactured for use in compatible Type QO electrical distribution systems.
• Industry Requirements: Designed to meet applicable industry performance requirements for molded case circuit breakers.
• Installation Notice: Verify compatibility with your electrical panel and local electrical code requirements before installation.

Where It Works Best

• The QO1520 is well suited for electrical projects where panel space is limited but additional branch circuits are required. It is commonly used in residential load centers, home remodeling and electrical upgrades, light commercial buildings, service panel expansions, and branch circuit additions where a space-saving duplex breaker is compatible with the panel design. Before installation, always confirm that your load center is designed to accept Type QO duplex circuit breakers and that the application complies with all applicable electrical codes and manufacturer specifications.
