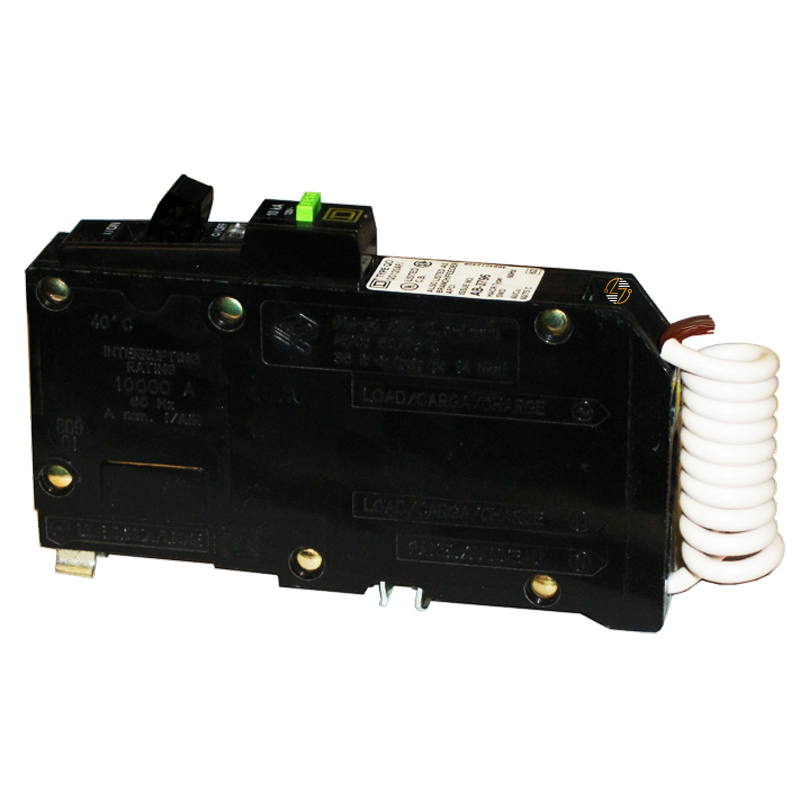

QO120AFI - 20 Amp Circuit Breaker

QO120AFI - 20 Amp Circuit Breaker

The QO120AFI is a 20 Amp, single-pole QO plug-on circuit breaker designed for use in your compatible 120VAC QO load centers and panelboards. Featuring Arc Fault Circuit Interruption (AFCI) technology, this breaker is intended to help you detect certain potentially hazardous arc fault conditions while providing branch circuit overcurrent protection. With a 10kA interrupting rating at 120VAC, it is well-suited for residential and light commercial electrical systems where AFCI protection is required or specified. Its compact plug-on design allows for straightforward installation in compatible equipment, making it a practical form, fit, and functional replacement for existing QO AFCI breakers. Built to last, the QO120AFI is engineered for dependable operation while maintaining compatibility with the electrical system it was designed to serve.

Key Features and Benefits

• Part Number: QO120AFI.
• 20 Amp Current Rating: For branch circuit protection.
• Single-Pole Design: For 120VAC applications.
• Plug-On Mounting: Designed for compatible QO load centers and panelboards.
• Arc Fault Circuit Interruption (AFCI): Helps detect certain hazardous arc fault conditions.
• 10kA Interrupting Capacity: Rated at 120VAC.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible QO AFCI circuit breakers.
• Compact Footprint: Helps simplify installation in compatible panels.
• Built to Last: Built to last for long-term service in properly maintained electrical systems.


Technical Specifications

• Part Number: QO120AFI

• Type: QO

• Poles: 1

• Amperes: 20A

• Voltage Rating: 120VAC

• Interrupting Rating (A.I.C.): 10kA @ 120VAC

• Mounting Style: Plug-On

• Protection Type: Arc Fault Circuit Interruption (AFCI)

• Dimensions:
  • Height: 4.75 in.
  • Width: 0.75 in.
  • Depth: 2.44 in.

Material Compliance and Certifications

• Compatible Equipment: Designed for installation in compatible QO electrical distribution equipment.
• AFCI Protection: Provides Arc Fault Circuit Interruption (AFCI) protection as specified for compatible applications.
• Industry Standards: Manufactured to meet applicable industry standards for its intended use and rating.
• Installation Requirements: Always verify compatibility with the existing panel and follow all applicable national, state, and local electrical codes before installation.


Where It Works Best

• The QO120AFI is well-suited for residential and light commercial branch circuits that require a 20 Amp, single-pole AFCI circuit breaker in compatible QO load centers or panelboards. It is commonly used on circuits serving living areas, bedrooms, hallways, and other locations where arc fault protection is required by applicable electrical codes or project specifications. Before installation, confirm that the breaker's type, amperage, pole configuration, voltage rating, and panel compatibility match the existing electrical system to ensure proper form, fit, and function.
