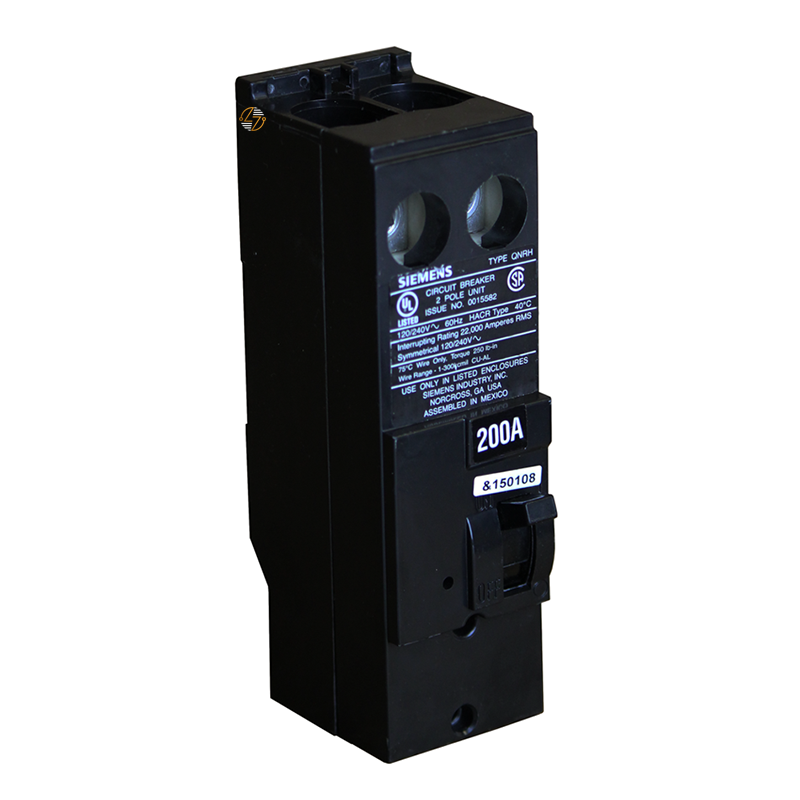

QNRH200 - 200Amp Circuit Breaker

QNRH200 - 200Amp Circuit Breaker

The QNRH200 is a 2-pole, 200-amp Type QNRH plug-in residential main circuit breaker engineered to provide dependable overcurrent and short-circuit protection for your compatible residential electrical distribution systems. Featuring a thermal magnetic trip mechanism, this breaker responds to both prolonged overloads and instantaneous fault conditions, helping you protect electrical equipment while supporting safe, reliable power distribution. Designed for 120/240VAC applications with a 22kA interrupting capacity (A.I.C.), the QNRH200 is well-suited for demanding residential service entrance installations. Its reversed handle configuration and plug-in design simplify installation in compatible load centers, while operation at 40°C and 50/60Hz makes it suitable for a wide range of standard residential electrical environments. Requiring four panel spaces, this breaker is an excellent choice for replacement projects, panel upgrades, or new installations where the specified Type QNRH breaker is required.

Key Features and Benefits

• 200 Amp Continuous Current Rating: 200 Amp continuous current rating for residential main service applications.
• 2-Pole Configuration: 2-pole configuration designed for 120/240VAC electrical systems.
• 22kA A.I.C. Rating: 22kA A.I.C. rating provides dependable interruption of high fault currents.
• Thermal-Magnetic Trip Mechanism: The thermal-magnetic trip mechanism protects against both overloads and short circuits.
• Plug-In Mounting Design: Plug-in mounting design allows installation in compatible electrical panels.
• Reversed Handle Configuration: Reversed handle configuration for applications requiring this specific operating orientation.
• HACR Type-Rated: HACR Type-rated for compatible heating, air conditioning, and refrigeration equipment.
• Operating Conditions: Operates at an ambient temperature of 40 °C and a frequency of 50/60Hz.
• Panel Space Requirement: Requires 4 panel spaces for installation.


Technical Specifications

• Part Number: QNRH200

• Type: QNRH

• Poles: 2

• Amperage: 200 Amps

• Voltage Rating: 120/240VAC

• Interrupting Capacity (A.I.C.): 22kA @ 120/240VAC

• Trip Unit: Thermal Magnetic

• Mounting Style: Plug-In

• Breaker Style: Residential Main

• Handle Configuration: Reversed Handle

• Frequency: 50/60Hz

• Ambient Temperature Rating: 40°C

• HACR Rated: Yes

• Panel Space Requirement: 4 Spaces

• Dimensions:
  • Height: 6.44 in.
  • Width: 2.00 in.
  • Depth: 2.38 in.

Material Compliance and Certifications

• Overcurrent Protection: Thermal magnetic overcurrent protection.
• HACR Rating: HACR Type-rated.
• Voltage Compatibility: Designed for 120/240VAC electrical systems.
• Ambient Temperature Rating: Rated for operation at 40°C ambient temperature.
• Frequency Compatibility: Operates on 50/60Hz electrical systems.


Where It Works Best

• The QNRH200 is ideal for compatible residential load centers that require a Type QNRH 200-amp plug-in main circuit breaker. It is commonly used for residential service entrance applications, electrical panel replacements, panel upgrades, and maintenance projects where matching the original breaker type, amperage, interrupting rating, and handle configuration is essential for proper system compatibility.
