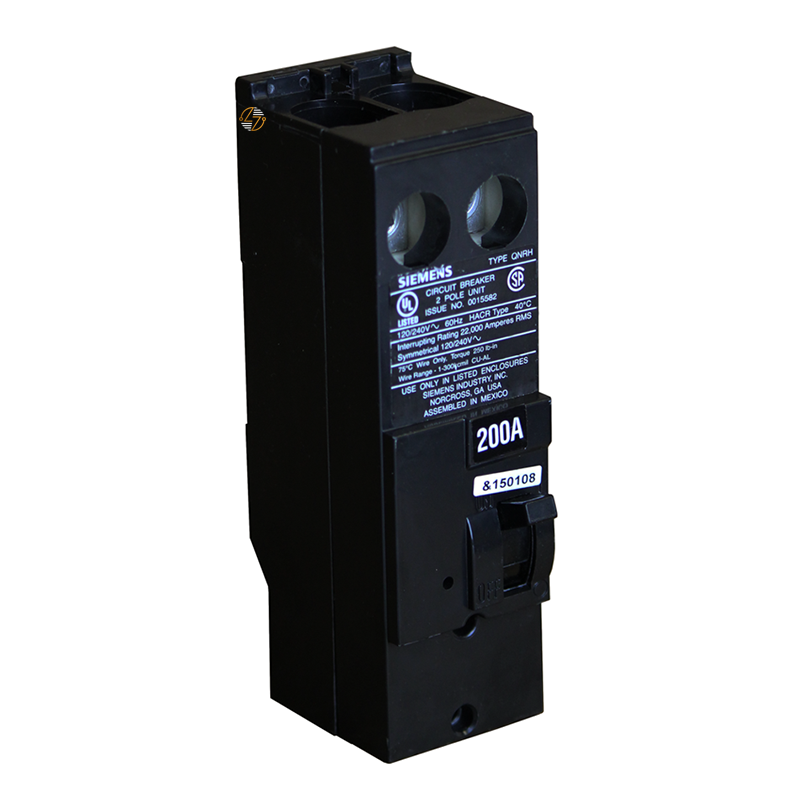

QN2200R - 200Amp Circuit Breaker

QN2200R - 200Amp Circuit Breaker

If you need a 200 amp Type QNR main circuit breaker, the QN2200R is built for compatible residential load centers using a 120/240VAC electrical system. It has a 2-pole design with a thermal magnetic trip, so it responds to both long-term overloads and high fault currents. The breaker installs with a plug-in connection and uses a reversed handle, making it important to match the requirements of the panel before installation.

This breaker carries a 10kA interrupting rating at 120/240VAC and is rated for operation at 50/60Hz in ambient temperatures up to 40°C. It is also HACR rated, making it suitable for approved heating and air conditioning equipment. Because it serves as a residential main breaker, the QN2200R requires four panel spaces. Whether you're replacing an existing breaker or restoring an older panel, matching the correct part number and breaker type helps ensure proper fit and performance.

Key Features and Benefits

• Part Number: Part Number: QN2200R
• 200 Amp Rating: 200 Amp rating
• Two-Pole Configuration: Two-pole configuration
• Type QNR: Type QNR residential main breaker
• Plug-In Mounting: Plug-in mounting
• Reversed Handle: Reversed handle
• Thermal Magnetic Trip: Thermal magnetic trip
• 10kA Interrupting Capacity: 10kA interrupting capacity at 120/240VAC
• HACR Rating: HACR rated
• Panel Space Requirement: Requires four panel spaces
• Operating Temperature: Rated for 40°C operation
• Frequency: 50/60Hz


Technical Specifications

• Part Number: QN2200R

• Type: QNR

• Poles: 2

• Amperage: 200A

• Voltage: 120/240VAC

• Interrupting Rating: 10kA

• Trip Type: Thermal Magnetic

• Mounting: Plug-In

• Frequency: 50/60Hz

• Ambient Temperature: 40°C

• Handle: Reversed

• Panel Spaces: 4

• Dimensions:
  • Height: 6.44 in.
  • Width: 2.00 in.
  • Depth: 2.38 in.

Material Compliance and Certifications

• HACR Rating: HACR rated
• Overcurrent Protection: Thermal magnetic overcurrent protection
• Voltage Rating: Rated for 120/240VAC systems
• Ambient Operating Temperature: 40°C ambient operating temperature


Where It Works Best

• The QN2200R is used in compatible residential load centers that require a Type QNR 200 amp main breaker with a reversed handle. It is commonly used when replacing an existing main breaker, repairing an electrical panel, or maintaining residential power distribution equipment.
