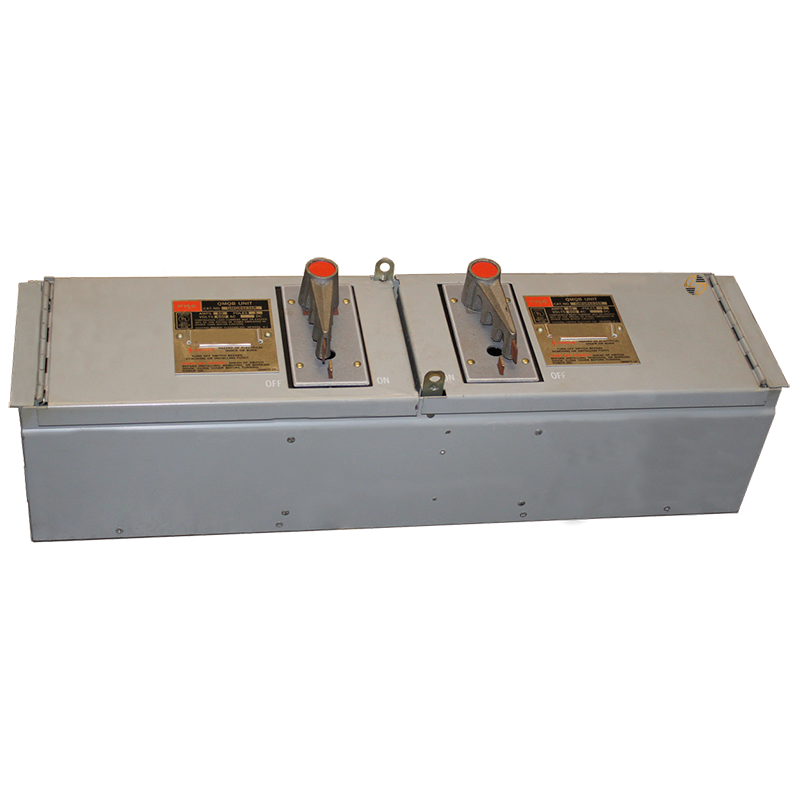

The Federal Pacific QMQB6636 panelboard switch is a 60 amp, 600 volt switch used in many commercial and industrial electrical systems. It’s a 3-phase, 3-pole unit designed to handle higher power loads where consistent operation is expected. This model uses a fusible twin-unit setup, meaning overcurrent protection is handled by fuses rather than the switch alone. That’s often preferred in systems where protecting downstream equipment is important. The bolt-in mounting style allows the switch to sit firmly in place inside the panelboard, helping keep everything secure once installed.

Key Features and Benefits

• Rated for 60 amps at 600 volts
• 3-phase, 3-pole design for commercial and industrial applications
• Fusible twin-unit configuration for overcurrent protection
• Accepts Class RK1 and RK5 fuses
• Bolt-in style mounting for a stable, secure installation

Technical Specifications

• Voltage Rating: 600V AC
• Current Rating: 60 Amps
• Phases: 3
• Poles: 3
• Configuration: Fusible twin unit
• Fuse Compatibility: Class RK1, Class RK5
• Approximate Dimensions: 21.00" W x 5.50" H x 5.00" D

Material Compliance and Certifications

• NEMA Type 1 enclosure for indoor use
• Built to meet standard electrical safety and performance requirements

Where It Works Best

• This panelboard switch is commonly found in commercial buildings, industrial facilities, and other electrical distribution systems that need controlled power switching with fuse protection. It’s a good fit for applications where steady performance, equipment protection, and a straightforward installation matter more than anything fancy.
