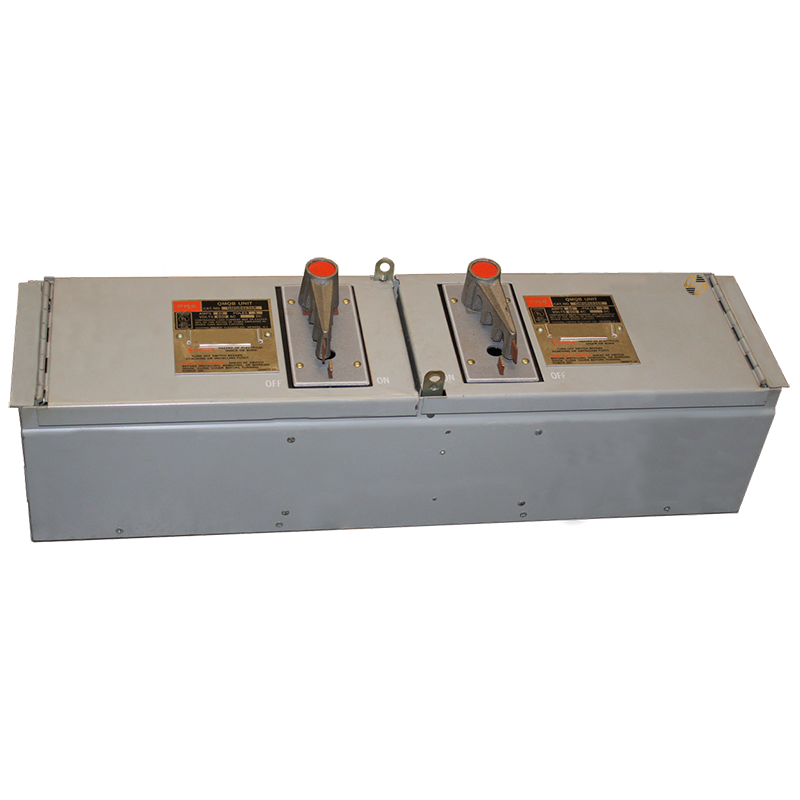

QMQB3336B - 30Amp Panelboard Switch

QMQB3336B - 30Amp Panelboard Switch

The Federal Pacific QMQB3336B Panelboard Switch is engineered for dependable performance in industrial and commercial electrical distribution systems. This 3-pole, 3-phase fusible switch operates at a voltage rating of 600V and a current rating of 30A, making it ideal for diverse applications requiring robust protection and reliability. Its bolt-in type design ensures straightforward integration into panelboards, while its dual/twin configuration maximizes installation flexibility.

Key Features and Benefits

• Fuse Compatibility: Designed to accept Class RK1 and RK5 fuses, as well as H, K, J, and R classes, for tailored overcurrent protection in various settings.
• Compact and Durable Design: With dimensions optimized for space efficiency and a bolt-in type construction, it delivers reliable and seamless panelboard integration.
• Indoor Protection: Rated NEMA 1 for indoor use, offering basic protection against dust and indirect splashing.


Technical Specifications

• Voltage Rating: 600V A.C.
• Current Rating: 30 Amperes
• Poles: 3
• Fuse Classes Supported: RK1, RK5, H, K, J, R
• Configuration: Dual/Twin Fusible Unit
• Dimensions: 21.00"W x 5.50"H x 5.00"D
• Mounting Type: Bolt-in

Material Compliance and Certifications

• UL-98 Listed: Meets rigorous safety standards for electrical equipment, certified under File Number E466967.


Suitability

• The QMQB3336B is a perfect fit for industrial and commercial environments where high-performance, reliable electrical distribution is critical. Its flexibility to accommodate multiple fuse types, along with a compact, bolt-in design, ensures ease of installation and adaptability for various power system requirements.


This Federal Pacific Panelboard Switch stands out as a durable, safety-certified solution for dependable electrical protection, offering value and peace of mind for demanding applications.
