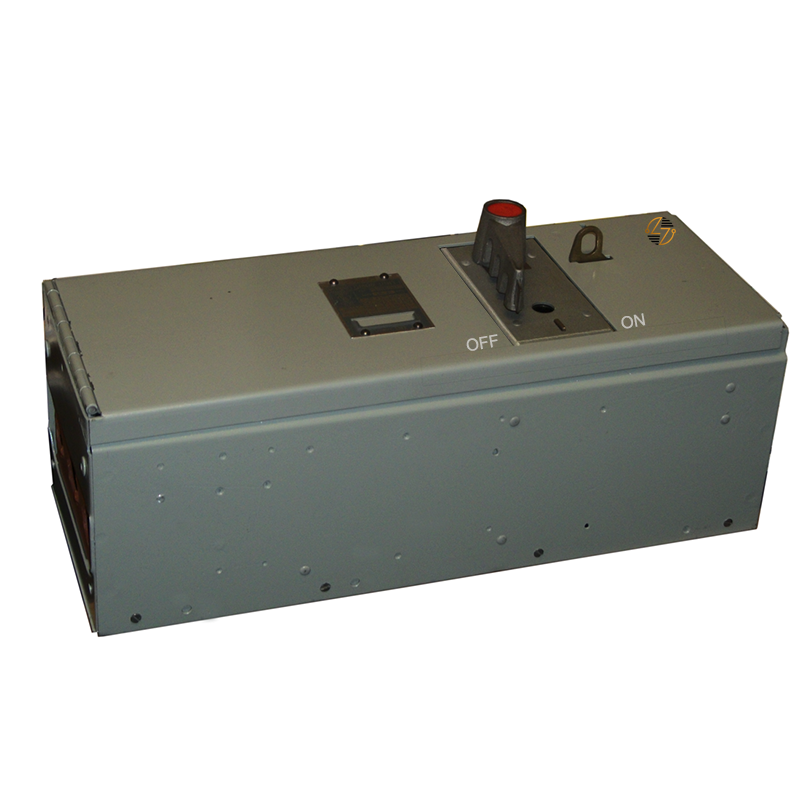

QMQB1032R - 100Amp Panelboard Switch

QMQB1032R - 100Amp Panelboard Switch

The Federal Pacific QMQB1032R handles power control in commercial and industrial electrical systems where consistent performance matters. This 3-pole, 100 amp, 250 volt AC fusible panelboard switch bolts directly into compatible panelboards, which helps installers secure it quickly and keep the panel layout clean. Electricians often use this switch in indoor electrical rooms because it delivers dependable operation without adding unnecessary complexity to the system.

Key Features and Benefits

• Bolts directly into panelboards, allowing for a secure fit and straightforward installation
• Accepts Class RK1 and RK5 fuses, giving flexibility when selecting overcurrent protection
• Uses a NEMA 1 enclosure, making it suitable for indoor electrical environments
• Supports daily operation in commercial and industrial applications without frequent adjustments

Technical Specifications

• Rated at 100 amps
• Uses a 3-pole configuration
• Operates at 250 volts AC
• Supports Class RK1 and RK5 fuses
• Built as a QMQB bolt-in panelboard switch
• Measures approximately 14.00" wide × 5.50" high × 5.00" deep

Material Compliance and Certifications

• Federal Pacific manufactures the QMQB1032R to meet established electrical safety and performance standards.
• The switch carries a UL Listing, confirming that it meets industry requirements for approved applications.

Where It Works Best

• Electricians install the QMQB1032R in commercial buildings, industrial facilities, and institutional locations that rely on fusible panelboard switches for circuit protection.
• It performs well in electrical rooms, service panels, and equipment areas where installers need a reliable, bolt-in solution that works as expected.
