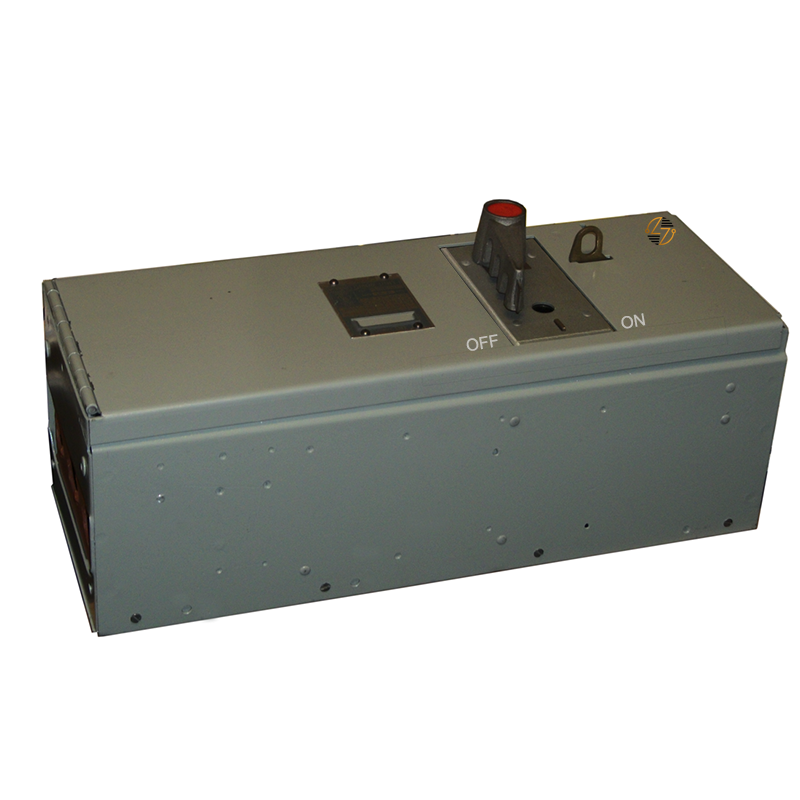

QMQB1032 w/ Mounting Kit - 100Amp Panelboard Switch

QMQB1032 w/ Mounting Kit - 100Amp Panelboard Switch

The QMQB1032 panelboard switch is designed for situations where dependable power control and circuit protection are simply expected to work without fuss. This is a fusible panelboard switch rated at 100 amps and built to handle both AC and DC power, making it a practical fit in many commercial and industrial electrical systems. It combines a disconnect function with overcurrent protection, helping reduce the risk of damage caused by overloads or short circuits. The compact size allows it to fit neatly into compatible panelboards, and the included mounting kit makes installation more straightforward than sourcing parts separately.

Key Features and Benefits

• Interrupting Capacity: Capable of interrupting fault currents up to 200,000 amperes at 240 volts
• AC/DC Compatibility: Designed for use in both alternating current and direct current systems
• Fuse Acceptance: Accepts Class RK1 and RK5 fuses for dependable overcurrent protection
• Bolt-In Construction: Bolt-in style construction helps keep the switch firmly in place once installed
• Mounting Kit Included: Supplied with a mounting kit to support proper, secure installation

Technical Specifications

• Voltage: 250 Volts AC
• Current Rating: 100 Amps
• Poles: 3
• Dimensions:
  • Width: 14.00 inches
  • Height: 5.50 inches
  • Depth: 5.00 inches
• Configuration: QMQB fusible single-unit panelboard switch
• Fuse Compatibility: Class RK1 and RK5
• Mounting Hardware: Included

Material Compliance and Certifications

• UL Listing: UL listed under file numbers E6294 and E33139
• cULus Certification: cULus certified for use in both U.S. and Canadian electrical installations

Where It Works Best

• This switch is commonly used in commercial buildings, industrial facilities, and other electrical systems where space is limited but protection and reliability are still required. It works well in panelboard applications that need a clean, straightforward disconnect with built-in fuse protection.
