QMQB1032 - 100Amp Panelboard Switch

QMQB1032 - 100Amp Panelboard Switch

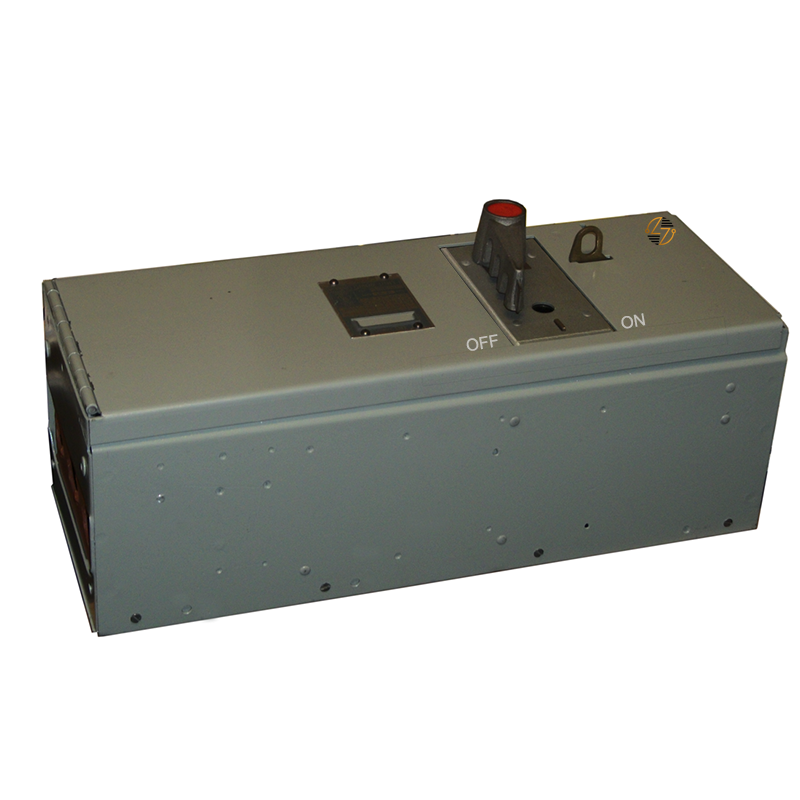

The Federal Pacific QMQB1032 is a 100 amp fusible panelboard switch commonly used in commercial and industrial electrical systems where dependable circuit control is required. It’s designed to handle both AC and DC power and provides a straightforward way to protect circuits from overloads and short circuits. The switch installs using a bolt-in style connection and includes a mounting kit, which helps speed up installation and keeps everything firmly in place once installed. For applications that require higher fault protection, this unit is rated to interrupt up to 200,000 amperes at 240 volts.

Key Features and Benefits

• Rated at 100 amps with a 250V AC voltage capacity
• High interrupting rating of up to 200,000A at 240V
• Compatible with Class RK1 and RK5 fuses
• Bolt-in mounting style for a secure panelboard fit
• Mounting hardware included to simplify installation
• Suitable for use in both AC and DC systems

Technical Specifications

• Amperage: 100 Amps
• Voltage: 250 Volts AC
• Number of Poles: 3
• Switch Type: QMQB fusible single unit panel switch
• Fuse Type: Class RK1, Class RK5
• Dimensions: 14.00" wide x 5.50" high x 5.00" deep
• Mounting Kit: Included

Material Compliance and Certifications

• UL Listed under File E6294 and E33139
• cULus certified for use in the United States and Canada

Where It Works Best

• The QMQB1032 panelboard switch is well suited for commercial buildings, industrial facilities, and other installations where space is limited but reliable circuit protection is still needed. It’s often used in panelboard systems that require a simple, durable fusible switch with a high interrupting rating and easy installation.
