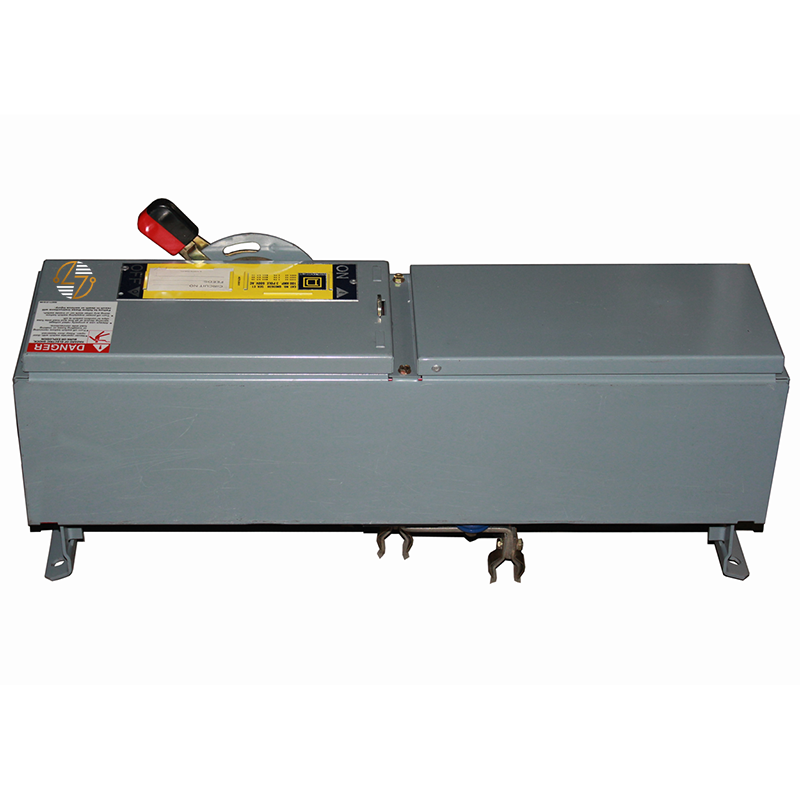

QMJ364H - 200Amp Panelboard Switch

QMJ364H - 200Amp Panelboard Switch

The Square D QMJ364H Panelboard Switch is a high-performance, fusible, single-unit switch designed for integration into QMJ plug-in type panelboards. With a robust 200-amp rating, a 600V AC capacity, and three poles, this switch is engineered for demanding electrical applications in commercial and industrial environments. Its compatibility with Class J fuses ensures superior overcurrent and short-circuit protection, while the plug-in design facilitates easy installation and maintenance. This versatile switch meets Series E1 or E2 standards, offering exceptional reliability and safety.

Key Features and Benefits

• High Capacity: Rated for 200 amperes and 600 volts AC, the QMJ364H delivers dependable power distribution for critical applications.
• Plug-In Design: Simplifies installation and enhances system flexibility for retrofit and new installations.
• Advanced Protection: Compatible with Class J fuses for reliable overcurrent and short-circuit protection.
• Durable Construction: Designed to withstand rigorous operational demands with compliance to UL and CSA standards.
• Versatile Applications: Suitable for commercial and industrial environments, including manufacturing plants, warehouses, and distribution centers.


Technical Specifications

• Voltage Rating: 600V AC

• Current Rating: 200A

• Number of Poles: 3

• Fuse Compatibility: Class J fuses

• Dimensions: 23.00"L x 9.00"H x 10.00"D

• Mounting Type: Plug-in panelboard switch

• Series Compatibility: Series E1 or E2


Material Compliance and Certifications

• Certifications: UL Listed under File E6294 and E33139; cULus certified, ensuring adherence to the highest safety standards.
• Environmental Compliance: Green Premium™ product, meeting stringent environmental and sustainability requirements.
• Standards Compliance: Conforms to NEMA KS1 standards, reinforcing its reliability and safety credentials.


Suitability

• The Square D QMJ364H is designed for use in QMB plug-in type panelboards, making it ideal for applications requiring robust circuit protection and operational safety. Its compact dimensions and plug-in mounting capability enable seamless integration into existing systems, reducing downtime and maintenance costs. With a proven track record in power distribution, this switch is an essential component for achieving efficient and safe electrical system management in various industries.
