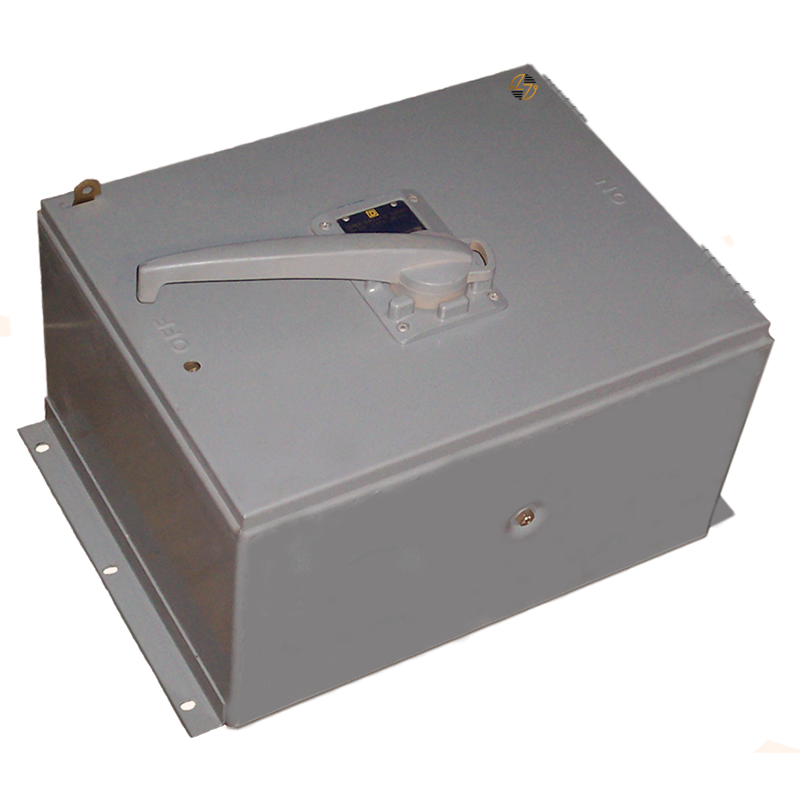

QMB3660 - 600Amp Panelboard Switch

QMB3660 - 600Amp Panelboard Switch

The Square D QMB3660 Panelboard Switch is a high-capacity, fusible disconnect switch engineered by Schneider Electric for demanding industrial and commercial electrical systems. This versatile, bolt-in type switch provides reliable overcurrent and short-circuit protection with a design that ensures safety, durability, and ease of maintenance. Rated for 600 amperes and 600 volts AC, the QMB3660 is built to handle substantial electrical loads while maintaining industry-leading performance.

Key Features and Benefits

• Visible Blade Design: Ensures a clear view of switch status for enhanced operator safety.
• Compact Bolt-In Type: Facilitates easy installation and removal in panelboards, reducing downtime during maintenance.
• Wide Fuse Compatibility: Accepts Class RK1 and RK5 fuses, as well as Class H, R, J, L, and 600V Class T fuses for diverse application needs.
• Rugged Construction: Designed with glass-reinforced polyester bus supports and extruded bus bars for mechanical strength and longevity.


Technical Specifications

• Voltage Rating: 600V AC maximum

• Current Rating: 600 amperes

• Number of Poles: 3

• Fuse Type: Class RK1 & RK5 compatibility

• Series: 1 through 4 compatibility

• Dimensions: 19.00"L x 15.00"H x 10.50"D

Material Compliance and Certifications

• UL Listed: Conforms to UL 50 and UL 67 safety standards
• CSA Certified: Meets CSA C22.2 No. 29-1989 requirements for panelboards


Suitability

• This single-unit, fusible panelboard switch is ideal for applications requiring a robust and reliable solution for power distribution and protection. Its compact, bolt-in design makes it a perfect fit for service entrance equipment in industrial plants, commercial buildings, and other facilities demanding high interrupting capacity and operational reliability.
