QMB363T - 100Amp Panelboard Switch

QMB363T - 100Amp Panelboard Switch

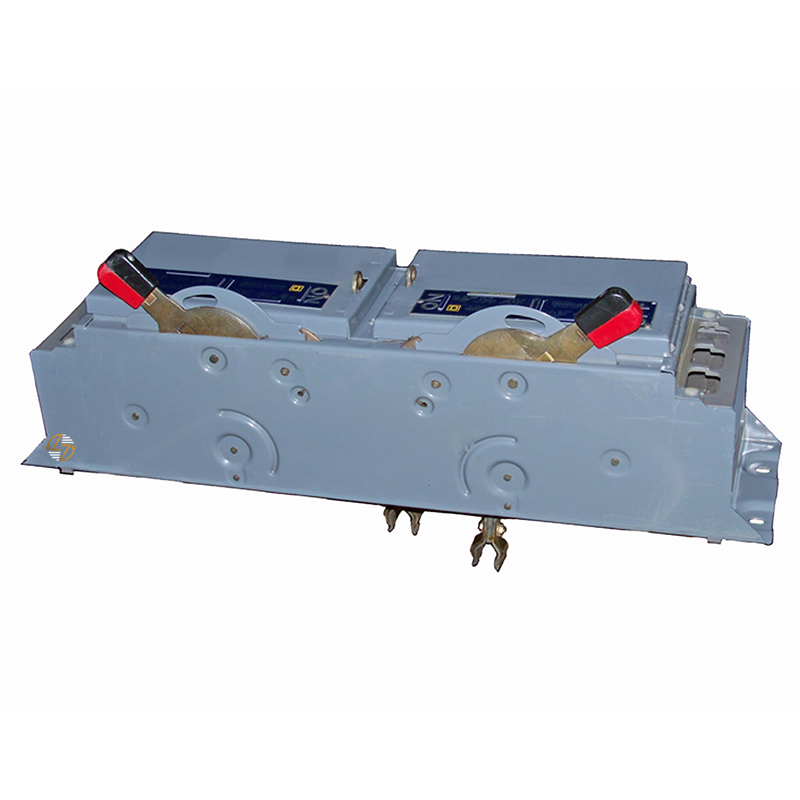

The Square D QMB363TW Panelboard Switch by Schneider Electric is a premium, high-capacity solution designed for reliable and efficient power distribution in industrial, commercial, and institutional applications. As a Type QMB Plug-In Panelboard Switch, this fusible twin unit delivers advanced circuit protection, ease of use, and superior performance. Rated for 600 Volts AC, 100 Amps, and featuring a 3-pole configuration, the QMB363TW is engineered to handle demanding electrical systems while ensuring safety and operational reliability.

Key Features and Benefits:

• Enhanced Circuit Protection: Accepts Class RK1, RK5, and J fuses, providing robust protection against overloads and short circuits to safeguard critical equipment.
• 3-Pole Configuration: Designed for balanced and efficient power distribution in three-phase systems.
• Plug-In Design: Simplifies installation and maintenance, minimizing downtime and enabling quick integration into panelboards.
• Durable Construction: Built on a QMB frame type, ensuring reliable performance in demanding environments.

Technical Specifications:

• Series: E1 or E2
• Amperage Rating: 100 Amps
• Voltage Rating: 600 Volts AC
• Pole Configuration: 3-pole
• Switch Type: Fusible Twin Unit
• Fuse Compatibility: Accepts Class RK1, RK5, and J Fuses
• Dimensions: 23.00" L x 7.50" H x 10.00" D

Material Compliance and Certifications:

• UL Listed: Certified by Underwriters Laboratories (UL) for meeting strict safety and performance standards.
• RoHS Compliance: Constructed using environmentally friendly materials in compliance with global sustainability requirements.
• NEC Compliance: Designed in accordance with the National Electrical Code (NEC), ensuring safe and reliable operation in various applications.

Suitability:

• Industrial Facilities: Provides reliable power distribution for heavy machinery, manufacturing equipment, and other high-demand setups.
• Commercial Buildings: Ensures safe and efficient electrical management for offices, retail spaces, and other commercial environments.
• Institutional Settings: Delivers consistent and secure power distribution for schools, hospitals, and public infrastructure.
