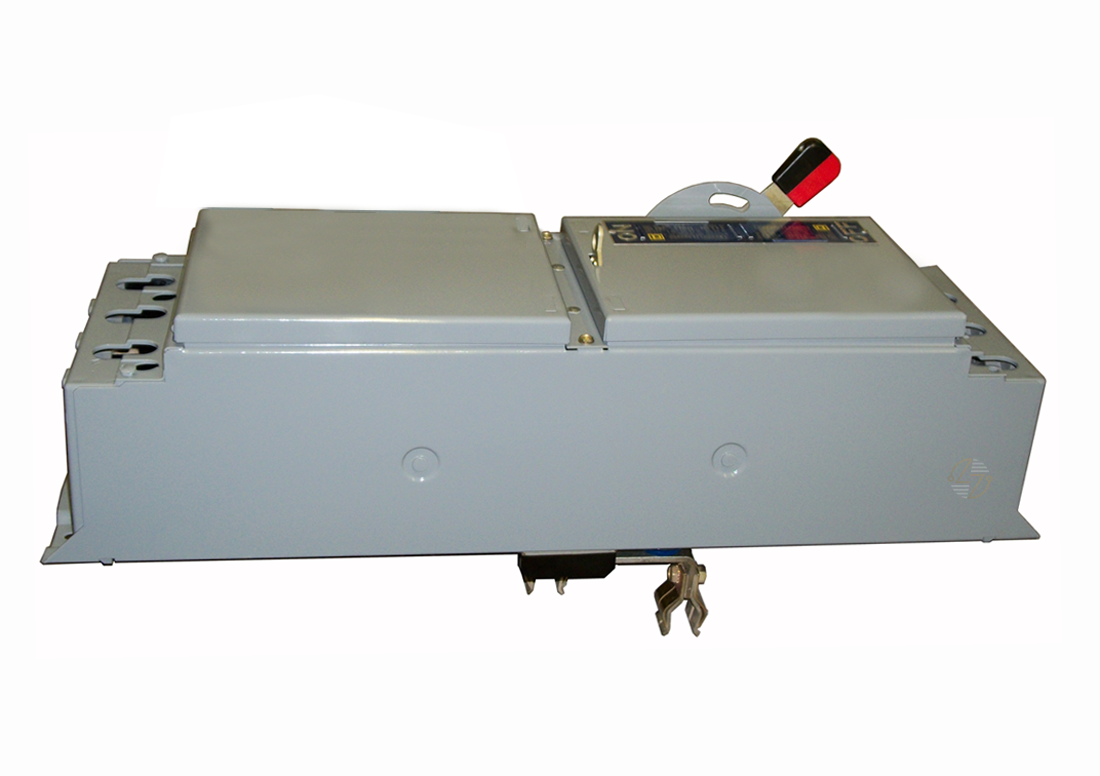

QMB363HD - 100Amp Panelboard Switch

QMB363HD - 100Amp Panelboard Switch

The Square D QMB363HD Panelboard Switch is a durable and efficient fusible single-unit switch designed to handle high-capacity power distribution in commercial and industrial systems. Rated for 600 Volts A.C. and 100 Amps, this Type QMB plug-in panelboard switch ensures reliable circuit protection and consistent performance for critical applications. Part of the trusted Series D2, the QMB363HD is compatible with Class RK1, RK5, and J fuses, offering flexible and precise overcurrent protection. Its plug-in design facilitates easy installation and maintenance, while its robust construction ensures long-term durability in demanding environments.

Key Features and Benefits:

• Fusible Single-Unit Design: Provides robust circuit protection to safeguard electrical systems and equipment.
• Class RK1, RK5, and J Fuse Compatibility: Supports multiple high-performance fuse types for efficient overcurrent management.
• Plug-In Configuration: Simplifies installation and maintenance, reducing downtime with secure and efficient connections.
• Series D2 Standards: Built to meet the rigorous standards of Square D’s Series D2 lineup, ensuring dependable operation in critical applications.

Technical Specifications:

• Voltage Rating: 600 Volts A.C.
• Amperage Rating: 100 Amps
• Frame Type: QMB
• Poles: 3
• Fuse Type: Accepts Class RK1, RK5, and J Fuses
• Series Compatibility: Series D2
• Mounting Type: Plug-In
• Dimensions: 22.00" L x 6.00" H x 10.00" D

Material Compliance and Certifications:

• Certifications: UL Listed and IEC Compliant, meeting stringent industry safety and quality standards.
• Material Composition: Constructed from corrosion-resistant materials to ensure long-term reliability and consistent operation.
• Environmental Standards: Fully compliant with RoHS guidelines, supporting environmentally sustainable practices.

Suitability:

• High-capacity power distribution systems in industrial and commercial facilities.
• Applications requiring dependable circuit protection and efficient power management.
• Electrical setups in healthcare environments, manufacturing plants, and data centers.
