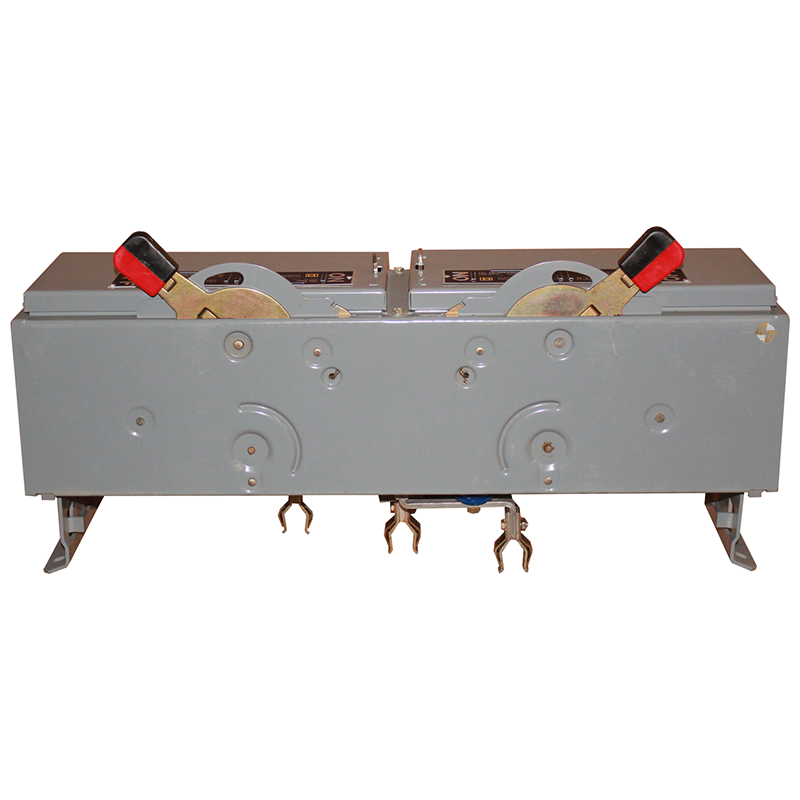

QMB323TW - 100Amp Panelboard Switch

QMB323TW - 100Amp Panelboard Switch

The Square D QMB323TW Panelboard Switch by Schneider Electric is a premium solution for efficient and reliable power distribution in industrial, commercial, and institutional applications. As a Type QMB Plug-In Panelboard Switch, this fusible twin unit delivers advanced circuit protection, operational efficiency, and long-term durability. With a 250-volt AC rating, 100-amp capacity, and 3-pole configuration, the QMB323TW is designed to handle demanding power distribution requirements while ensuring safety and system integrity. Built on the durable QMB frame type, this switch is compatible with Class RK1, RK5, and J fuses, offering flexible options for enhanced protection. Its plug-in design simplifies installation and maintenance, reducing downtime and ensuring seamless system integration.

Key Features and Benefits:

• Advanced Circuit Protection: Accepts Class RK1, RK5, and J fuses, safeguarding against overloads and short circuits to protect equipment and personnel.
• Plug-In Design: Simplifies installation and maintenance, reducing downtime and allowing for easy integration into existing panelboards.
• Rugged Construction: Built on a QMB frame type, ensuring reliable performance in demanding industrial and commercial environments.

Technical Specifications:

• Series: E1 or E2
• Amperage Rating: 100 Amps
• Voltage Rating: 250 Volts AC
• Pole Configuration: 3-pole
• Switch Type: Fusible Twin Unit
• Fuse Compatibility: Accepts Class RK1, RK5, and J Fuses
• Dimensions: 23.00" L x 6.00" H x 10.00" D

Material Compliance and Certifications:

• UL Listed: Fully certified by Underwriters Laboratories (UL) for rigorous safety and performance standards.
• RoHS Compliance: Manufactured with environmentally sustainable materials in compliance with global sustainability guidelines.
• NEC Compliance: Fully adheres to the National Electrical Code (NEC) to ensure safe and reliable operation.

Suitability:

• Industrial Facilities: Delivers reliable power distribution for heavy machinery, equipment, and manufacturing processes.
• Commercial Buildings: Provides dependable and efficient electrical management for office buildings, retail outlets, and other commercial spaces.
• Institutional Environments: Ensures consistent and safe power delivery for schools, hospitals, and government facilities.
