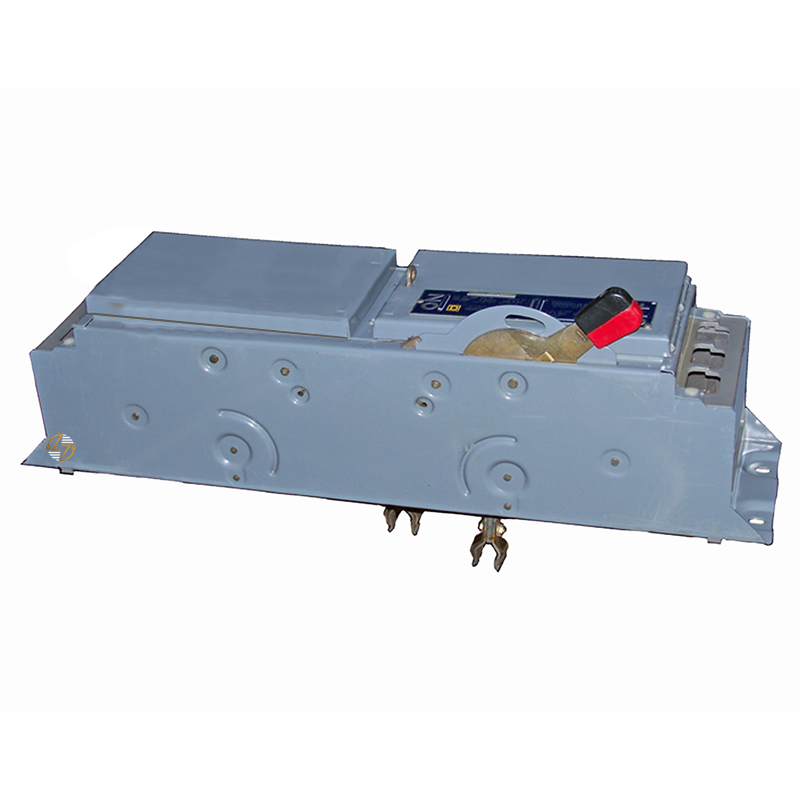

QMB323HD - 100Amp Panelboard Switch

QMB323HD - 100Amp Panelboard Switch

The Square D QMB323HD Panelboard Switch is a premium, fusible single-unit switch designed for robust power distribution in industrial and commercial environments. Rated for 250 Volts A.C. and 100 Amps, this Type QMB plug-in panelboard switch from the trusted Series D2 lineup delivers advanced circuit protection for medium- to high-capacity applications. Compatible with Class RK1, RK5, and J fuses, the QMB323HD ensures reliable overcurrent management while its plug-in design simplifies installation and maintenance. With its durable construction and compact form, this switch integrates seamlessly into panelboard systems, making it ideal for demanding electrical setups.

Key Features and Benefits:

• Fusible Single-Unit Design: Provides reliable circuit protection, safeguarding equipment and enhancing system safety.
• Class RK1, RK5, and J Fuse Compatibility: Supports a range of high-performance fuse types for versatile and efficient overcurrent protection.
• Plug-In Configuration: Facilitates quick, secure installation and easy maintenance, reducing downtime and operational costs.
• Series D2 Proven Reliability: Part of Square D’s renowned product series, ensuring long-term performance and durability.

Technical Specifications:

• Voltage Rating: 250 Volts A.C.
• Amperage Rating: 100 Amps
• Frame Type: QMB
• Poles: 3
• Fuse Type: Accepts Class RK1, RK5, and J Fuses
• Mounting Type: Plug-In
• Dimensions: 22.00" L x 6.00" H x 10.00" D

Material Compliance and Certifications:

• Certifications: UL Listed and IEC Compliant, ensuring adherence to stringent industry safety and quality standards.
• Material Composition: Constructed from corrosion-resistant materials to provide long-lasting reliability and consistent operation.
• Environmental Standards: Fully compliant with RoHS guidelines, supporting sustainable and environmentally friendly practices.

Suitability:

• High-capacity power distribution systems in industrial and commercial environments.
• Applications requiring robust circuit protection and efficient power management.
• Electrical systems in manufacturing facilities, healthcare facilities, and data centers.
