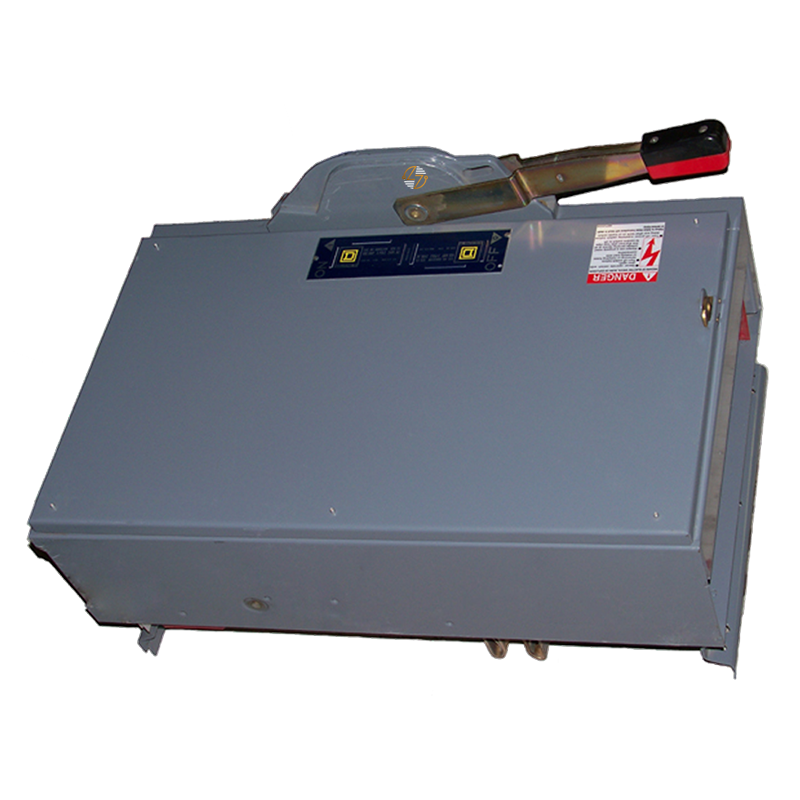

QMB225W - 400Amp Panelboard Switch

QMB225W - 400Amp Panelboard Switch

The Square D QMB225W Panelboard Switch by Schneider Electric is a robust, high-performance solution for safe and reliable electrical power distribution. Designed as a fusible single unit with a Type QMB plug-in configuration, this switch provides exceptional circuit protection and operational efficiency. With a heavy-duty 400-ampere rating and compatibility with Class RK1, RK5, and J fuses, the QMB225W is built to handle high-capacity power loads while safeguarding equipment and personnel. Its rugged construction, easy installation, and wide voltage compatibility make it an indispensable component in industrial, commercial, and institutional settings where safety and durability are paramount.

Key Features and Benefits:

• Unmatched Circuit Protection: Accepts Class RK1, RK5, and J fuses to ensure reliable protection against overloads and short circuits.
• Plug-In Configuration: Simplifies installation and replacement, reducing downtime and maintenance efforts.
• Durable Design: Built on a rugged QMB frame type to ensure long-lasting performance and reliability under heavy loads.

Technical Specifications:

• Series: E1 or E2
• Amperes: 400
• Voltage Rating: 250 Volts AC
• Poles: 2
• Switch Type: Fusible Single Unit
• Fuse Compatibility: Accepts Class RK1, RK5, and J Fuses
• Dimensions: 23.00" L x 15.00" H x 10.50" D

Material Compliance and Certifications:

• UL Listed: Certified by Underwriters Laboratories (UL) for high safety and performance standards.
• RoHS Compliance: Manufactured using environmentally friendly materials to reduce environmental impact.
• NEC Compliance: Meets the requirements of the National Electrical Code (NEC), ensuring safe and code-compliant installations.

Suitability:

• Industrial Facilities: Handles high-capacity power distribution in manufacturing plants, warehouses, and heavy machinery setups.
• Commercial Buildings: Ensures efficient electrical management in office complexes, retail stores, and hospitality environments.
• Institutional Settings: Delivers consistent and reliable power for schools, hospitals, and public facilities.
