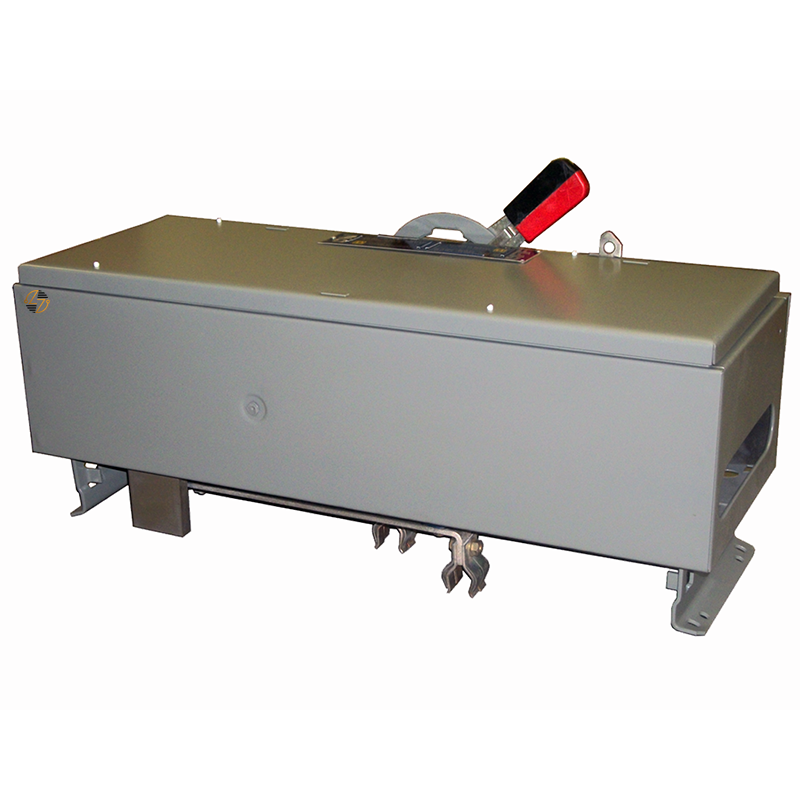

QMB224W - 200Amp Panel Switch

QMB224W - 200Amp Panel Switch

The Square D QMB224W Panelboard Switch by Schneider Electric delivers outstanding performance and reliability for demanding power distribution systems. This Type QMB Plug-In Panelboard Switch, designed as a fusible single unit, provides enhanced safety and efficient circuit protection, making it ideal for industrial, commercial, and institutional applications. With a high 200-amp rating, the QMB224W ensures dependable power management for heavy-duty electrical systems. Built on the robust QMB frame type and compatible with multiple fuse types, this panelboard switch offers unmatched versatility, safety, and long-lasting durability. Its plug-in design streamlines installation, saving time and reducing downtime, while its rugged construction guarantees performance even in the toughest environments.

Key Features and Benefits:

• High Amperage Capacity: Rated for 200 Amps, this panelboard switch is ideal for heavy-duty electrical setups requiring consistent power distribution.
• Superior Circuit Protection: Accepts Class RK1, RK5, and J fuses, ensuring maximum protection against overloads and short circuits to safeguard your electrical system.
• Plug-In Type Design: Enables quick and seamless installation, reducing downtime and simplifying maintenance in demanding facilities.
• Reliable Performance: Built on a durable QMB frame type, this switch is engineered to withstand harsh operating conditions and deliver long-term reliability.

Technical Specifications:

• Series: E1 or E2
• Amperage Rating: 200 Amps
• Voltage Rating: 250 Volts AC
• Pole Configuration: 2-pole
• Switch Type: Fusible Single Unit
• Fuse Compatibility: Accepts Class RK1, RK5, and J Fuses
• Dimensions: 23.00" L x 9.00" H x 10.00" D

Material Compliance and Certifications:

• UL Listed: Fully certified by Underwriters Laboratories (UL), meeting stringent safety and performance standards.
• RoHS Compliance: Constructed with environmentally responsible materials, ensuring compliance with global sustainability guidelines.
• NEC Compliance: Designed in accordance with the National Electrical Code (NEC) to meet industry safety requirements.

Suitability:

• Industrial Facilities: Perfect for power-intensive operations such as manufacturing plants and heavy machinery setups.
• Commercial Buildings: Delivers safe and efficient power distribution for offices, retail spaces, and commercial complexes.
• Institutional Settings: Provides reliable and consistent power management for schools, hospitals, and public infrastructure.
