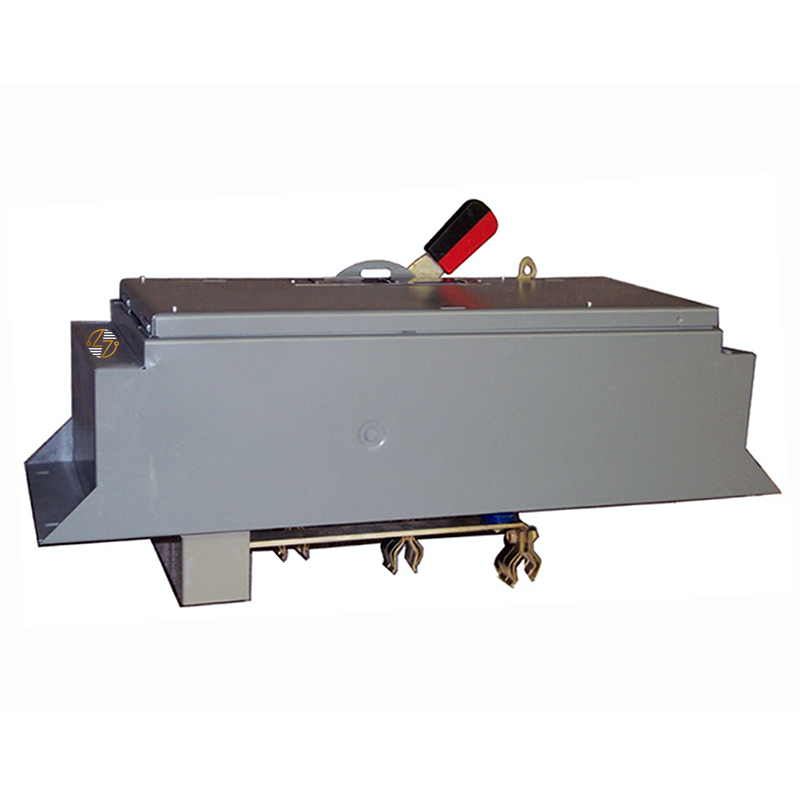

QMB224 - 200Amp Panelboard Switch

QMB224 - 200Amp Panelboard Switch

The Square D QMB224 Panelboard Switch is a premium, fusible single-unit switch designed for industrial and commercial applications that demand reliable power distribution and circuit protection. Rated for 250 Volts A.C. and 200 Amps, this Type QMB plug-in panelboard switch from the renowned Series D2 ensures robust performance in medium- to high-capacity systems. Its compatibility with Class RK1, RK5, and J fuses offers versatile overcurrent protection options, while its plug-in configuration simplifies installation and maintenance. Built to last, the QMB224 delivers exceptional durability and efficiency, making it a trusted choice for critical power management.

Key Features and Benefits:

• High Voltage and Current Capacity: Rated for 250 Volts A.C. and 200 Amps, meeting the needs of demanding power systems with consistent performance.
• Fusible Single-Unit Design: Provides robust circuit protection to safeguard equipment and enhance system reliability.
• Class RK1, RK5, and J Fuse Compatibility: Offers flexibility in fuse selection to meet specific protection requirements.
• Plug-In Type Configuration: Simplifies installation and reduces downtime, allowing for quick and secure connections.
• Proven Series D2 Reliability: A trusted product from the Square D Series D2 lineup, known for its performance and dependability.

Technical Specifications:

• Voltage Rating: 250 Volts A.C.
• Amperage Rating: 200 Amps
• Frame Type: QMB
• Poles: 2
• Fuse Type: Accepts Class RK1, RK5, and J Fuses
• Mounting Type: Plug-In
• Dimensions: 22.00" L x 9.00" H x 12.00" D

Material Compliance and Certifications:

• Certifications: UL Listed and IEC Compliant, meeting stringent safety and quality standards for industrial applications.
• Material Composition: Constructed with corrosion-resistant materials to withstand harsh environments and ensure long-term reliability.
• Environmental Standards: Fully compliant with RoHS guidelines, supporting environmentally sustainable practices.

Suitability:

• High-capacity power distribution systems in commercial and industrial facilities.
• Applications requiring robust circuit protection and efficient power management.
• Electrical setups in healthcare facilities, manufacturing plants, and data centers.
