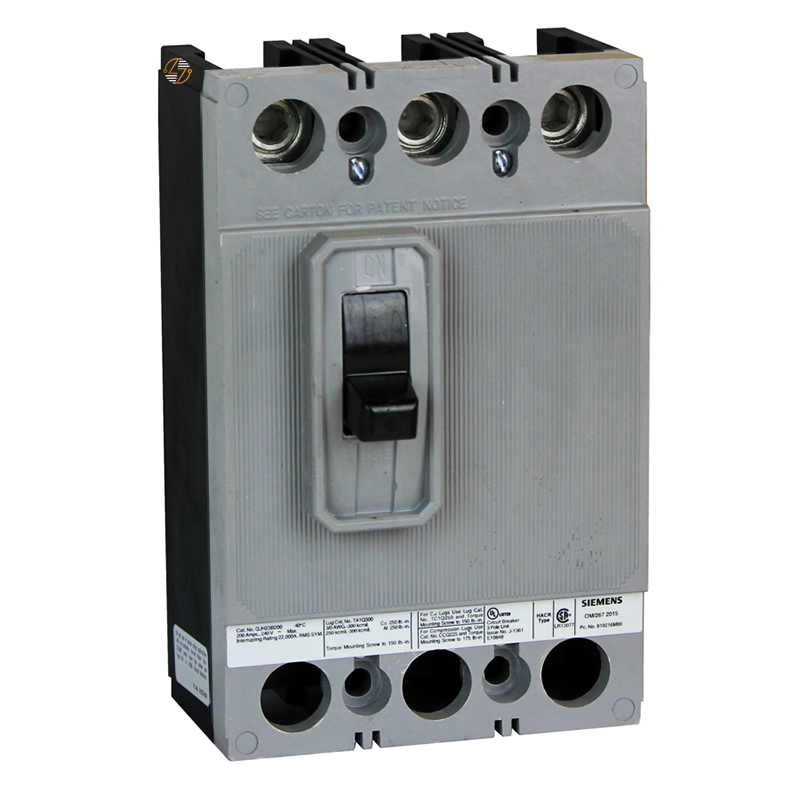

QJH23B200 - 200Amp Circuit Breaker

QJH23B200 - 200Amp Circuit Breaker

The QJH23B200 is a 3-pole, 200-amp molded-case circuit breaker designed for use in your compatible electrical distribution systems that require 22kA interrupting capacity at 240VAC. Built for dependable circuit protection, this breaker helps you safeguard electrical equipment and conductors from overloads and short circuits while providing the proper form, fit, and function for compatible installations. Rated for 40°C operation and HACR applications, the QJH23B200 is well-suited for commercial and industrial environments where maintaining existing electrical infrastructure is important. It also includes load-side lugs, helping you to simplify installation when used in compatible panelboards and switchgear. Constructed to last, this breaker is an ideal functional replacement for systems designed to accept a QJH-type circuit breaker.

Key Features and Benefits

• 200 Amp continuous current rating
• 3-pole configuration for three-phase electrical systems
• 22kA interrupting capacity at 240VAC
• Type QJH molded case circuit breaker
• Rated for operation in 40°C ambient environments
• HACR Rated for heating, air conditioning, and refrigeration equipment applications
• Includes load-side lugs for compatible installations
• Designed to provide the proper form, fit, and function in compatible legacy electrical systems
• Built to last for dependable service in commercial and industrial applications


Technical Specifications

• Part Number: QJH23B200

• Type: QJH

• Product Type: Molded Case Circuit Breaker

• Poles: 3

• Amperage: 200 Amps

• Voltage Rating: 240 VAC

• Interrupting Rating (A.I.C.): 22kA @ 240VAC

• Ambient Temperature Rating: 40°C

• HACR Rated: Yes

• Included Accessories: Load-Side Lugs

• Dimensions:
  • Height: 7.0 in.
  • Width: 4.5 in.
  • Depth: 2.53 in.

Material Compliance and Certifications

• HACR Rated for applicable heating, air conditioning, and refrigeration equipment
• Rated for operation in 40°C ambient conditions
• Manufactured as a molded case circuit breaker for use in compatible electrical distribution equipment
• Designed to meet the original electrical and mechanical requirements of compatible QJH breaker installations


Where It Works Best

• The QJH23B200 is commonly used in commercial buildings, industrial facilities, manufacturing plants, institutional properties, and other electrical distribution systems requiring a 200A, 3-pole QJH molded-case circuit breaker. It is well-suited for maintaining compatible panelboards, switchboards, and similar equipment where matching the original breaker type, electrical ratings, and physical dimensions is essential for proper installation and operation.
