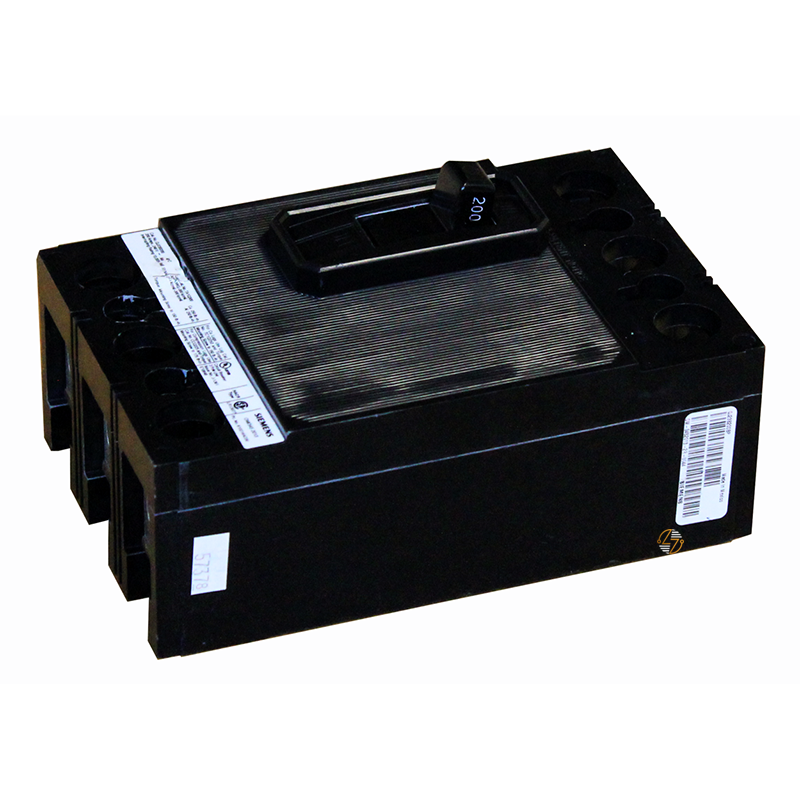

QJ23B20000S01 - 200A Circuit Breaker w/ 120 V.AC Shunt

QJ23B20000S01 - 200A Circuit Breaker w/ 120 V.AC Shunt

Ensure the safety and reliability of your electrical infrastructure with the QJ23B20000S01 Circuit Breaker, now featuring a factory-installed 120 V.AC shunt for added functionality. Designed for both commercial and industrial applications, this robust circuit breaker offers unparalleled performance and protection. With a current rating of 200 amps, a 10 kAIC interrupting rating, and a 3-pole design, the QJ23B20000S01 is ideal for safeguarding your electrical systems against overloads and short circuits.

Key Features and Benefits:

• High Performance: The QJ23B20000S01 delivers exceptional reliability with its 200-ampere rating, ensuring consistent performance even under demanding conditions.
• Enhanced Safety Assurance: Engineered to protect your electrical circuits, it effectively prevents damage by interrupting power flow during overloads and short circuits, reducing the risk of fire and equipment failure. The factory-installed 120 V.AC shunt adds functionality for remote operation or tripping as part of an integrated system.
• Durability: Built to last, this circuit breaker features a sturdy construction that withstands harsh environments, providing long-term protection for your electrical systems.
• Easy Installation: The QJ23B20000S01 is designed for straightforward installation, making it a convenient choice for electricians and contractors who require a dependable and easy-to-integrate solution.

Technical Specifications:

• Type: Molded Case Circuit Breaker
• Rated Current: 200 Amperes
• Voltage Rating: 240 Volts AC
• Frequency: 50/60 Hz
• Interrupting Rating: 10 kAIC at 240V AC
• Number of Poles: 3
• Additional Feature: Factory-Installed 120 V.AC Shunt
• Weight: 4.149 lbs
• Dimensions: Standard MCCB size

Material Compliance and Certifications:

• RoHS Compliant: Since July 1, 2006, the QJ23B20000S01 has adhered to the Restriction of Hazardous Substances (RoHS) directive, ensuring it is free from harmful materials and safe for use in environmentally conscious applications.

Suitability:

The QJ23B20000S01 is perfect for a wide range of applications, including commercial buildings, industrial facilities, and residential complexes. Its reliable performance and enhanced features make it a trusted choice for protecting critical electrical circuits in settings such as office buildings, manufacturing plants, and multi-unit residential dwellings.
