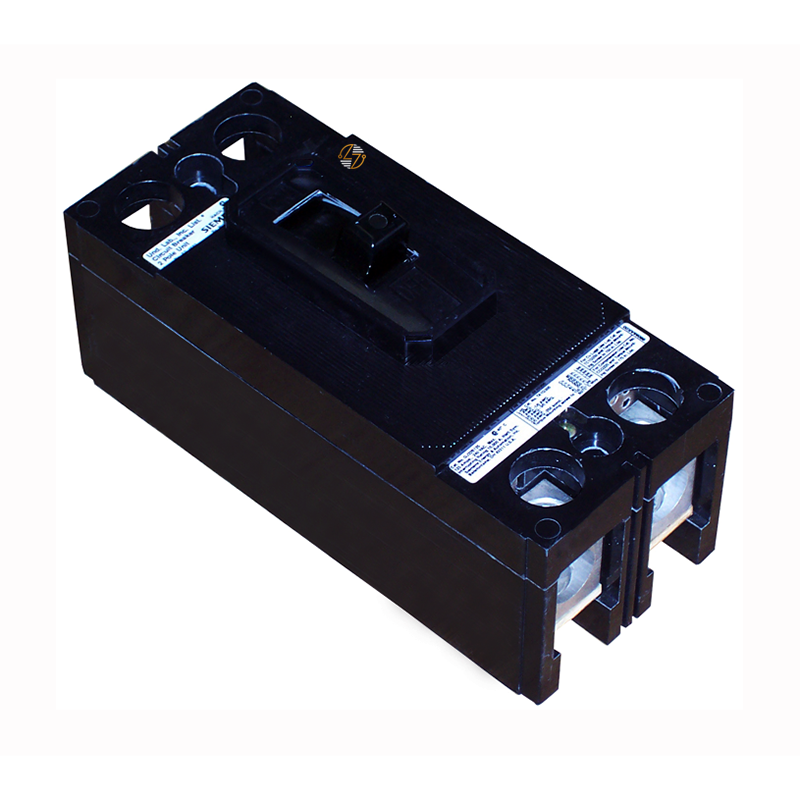

QJ22B200 - 200Amp Circuit Breaker

QJ22B200 - 200Amp Circuit Breaker

The QJ22B200 is a 2-pole, 200-amp molded case circuit breaker designed for use in your compatible Type QJ electrical distribution systems. Rated for 120/240VAC with a 10kA A.I.C. interrupting capacity, this breaker provides dependable circuit protection against overloads and short circuits in commercial and industrial electrical applications. Built for long service life, it is intended as a form, fit, and functional replacement for compatible installations where maintaining the original equipment configuration is important. This breaker is also HACR rated for use with heating, air conditioning, and refrigeration equipment where applicable. Designed for operation in 40°C ambient environments, the QJ22B200 includes load-side lugs to help you simplify installation and secure conductor termination.

Key Features and Benefits

• 200 Amp continuous current rating.
• Two-pole configuration for 120/240VAC systems.
• Type QJ design for compatible panelboards and switchboards.
• 10kA A.I.C. interrupting rating at 120/240VAC.
• Molded case construction designed for long-lasting service.
• HACR rated for compatible heating, air conditioning, and refrigeration applications.
• Suitable for operation in 40°C ambient temperatures.
• Includes load-side lugs for convenient field installation.
• Designed as a form, fit, and functional replacement for compatible legacy electrical systems.

Technical Specifications

• Part Number: QJ22B200
• Type: QJ
• Poles: 2
• Amperage: 200 Amps
• Voltage Rating: 120/240VAC
• Interrupting Rating (A.I.C.): 10kA @ 120/240VAC
• Frequency: 50/60 Hz
• Ambient Temperature Rating: 40°C
• Construction: Molded Case Circuit Breaker
• Included Accessories: Load-Side Lugs
• Dimensions:
  • Height: 7.0 in.
  • Width: 3.0 in.
  • Depth: 2.53 in.

Material Compliance and Certifications

• HACR Rated.
• Designed for 40°C ambient operating conditions.
• Molded case circuit breaker construction.
• Manufactured to meet applicable industry standards for its specified ratings and intended application. Always verify compatibility with your equipment and local electrical code requirements before installation.

Where It Works Best

• The QJ22B200 is well suited for commercial and industrial electrical distribution systems that require a 200-amp, 2-pole Type QJ circuit breaker. It is commonly used in compatible panelboards and switchboards to provide branch or feeder circuit protection. This breaker is an excellent choice when maintaining the original design and compatibility of an existing electrical system is the priority, making it ideal for repairs, maintenance, and replacement applications in facilities that rely on legacy electrical equipment.
