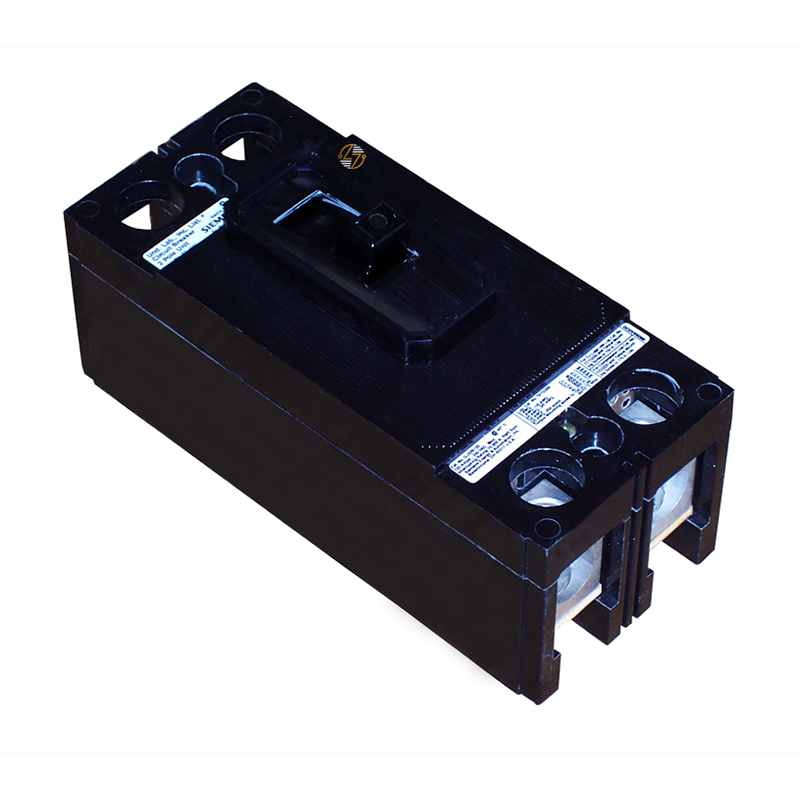

QJ22B090 - 90Amp Circuit Breaker

QJ22B090 - 90Amp Circuit Breaker

Need a 90-amp Type QJ circuit breaker for an existing electrical system? The QJ22B090 is a 2-pole molded-case circuit breaker rated for 120/240 VAC with a 10 kA interrupting capacity. It's made for your applications that require these exact electrical ratings and physical dimensions, making it a practical choice when replacing a breaker in compatible equipment.

This breaker is HACR-rated for use in compatible heating, air conditioning, and refrigeration equipment. It also includes load-side lugs and carries a 40°C rating for the environments it was built to serve. Suppose you're maintaining an existing panel or replacing a failed breaker; matching the original specifications matters. The QJ22B090 is built to last and provides the form, fit, and function expected of a Type QJ breaker.

Key Features and Benefits

• 2-pole molded case circuit breaker.
• 90 Amp rating.
• 120/240VAC.
• 10kA interrupting capacity.
• Type QJ.
• HACR Rated.
• Rated for 40°C applications.
• Includes load-side lugs.
• Form, fit, and functional replacement for compatible equipment.
• Built to last.

Technical Specifications

• Part Number: QJ22B090
• Type: QJ
• Product Type: Molded Case Circuit Breaker
• Poles: 2
• Amperage: 90 Amps
• Voltage Rating: 120/240VAC
• Interrupting Capacity: 10kA @ 120/240VAC
• Temperature Rating: 40°C
• HACR Rated: Yes
• Included: Load-Side Lugs
• Dimensions:
  • Height: 7.0 in.
  • Width: 3.0 in.
  • Depth: 2.53 in.

Material Compliance and Certifications

• HACR Rated.
• 40°C rated.
• Molded case circuit breaker construction.

Where It Works Best

• The QJ22B090 is used in compatible panelboards, switchboards, and electrical distribution equipment that require a Type QJ, 90 amp, 2-pole circuit breaker. It's also suitable for compatible HVAC equipment that calls for an HACR-rated breaker. Always verify the breaker type, amperage, voltage, and interrupting rating before installation.
