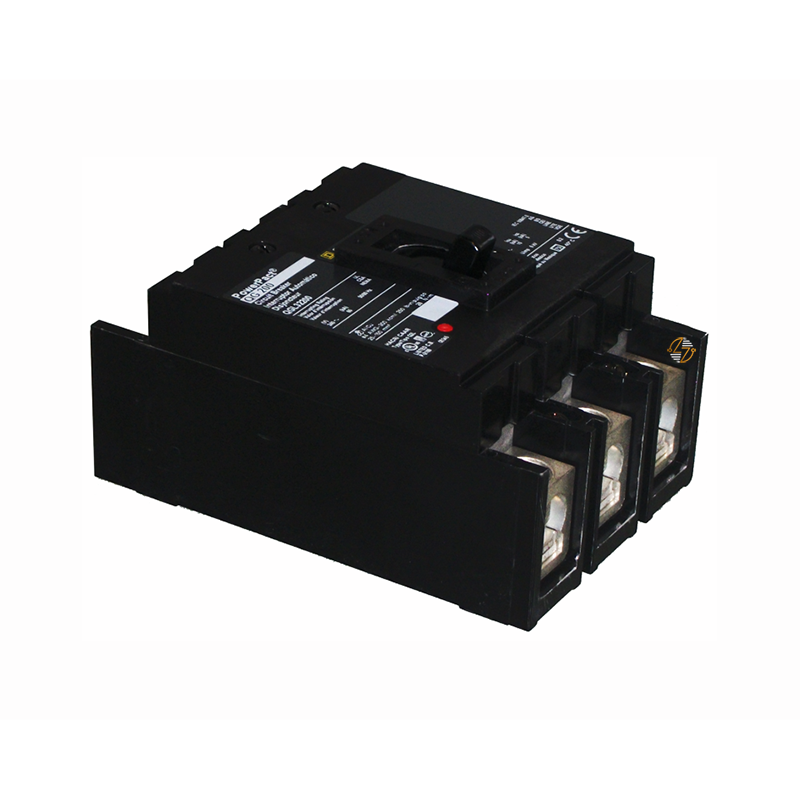

QGL32225 - 225A Circuit Breaker

QGL32225 225A Circuit Breaker

The Schneider Electric PowerPacT QGL32225 Circuit Breaker is a top-tier solution for safeguarding and managing electrical systems in commercial and industrial settings. This robust device is designed to provide exceptional protection and reliable performance, ensuring the safety and continuity of your electrical operations. With a rated operational voltage of 240V AC and a line current of 225A, this 3-pole breaker is engineered to handle substantial electrical loads while maintaining peak efficiency.

Key Features and Benefits:

• High Breaking Capacity: The QGL32225 boasts a high interrupting rating of 65kA at 240V AC, providing superior protection against overloads and short circuits. This ensures the safety of your electrical system even under the most demanding conditions.
• Thermal Magnetic Trip Technology: Equipped with advanced thermal magnetic trip technology, this breaker offers precise and responsive protection by automatically disconnecting circuits during abnormal conditions, minimizing damage and downtime.
• Versatile Mounting Options: Available in both unit mount and I-Line constructions, the QGL32225 can be easily integrated into a variety of setups, providing flexibility and convenience in installation.
• Durable and Reliable: Engineered for high mechanical durability, this circuit breaker supports up to 5,000 no-load operations and 1,000 load cycles, ensuring long-lasting performance and reduced maintenance requirements.
• Environmental and Safety Compliance: Compliant with UL 489, CSA, and NOM standards, and IEC certified, this breaker is designed for use in worldwide applications, meeting stringent safety and quality standards.

Technical Specifications:

• Rated Current: 225 A
• Number of Poles: 3P
• Voltage Rating: 240V AC
• Interrupting Capacity: 65 kA at 240V AC
• Trip Technology: Thermal Magnetic
• Continuous Current Rating: 80%
• Magnetic Tripping Current: 2400 A
• Dimensions: Height: 6.47 in, Width: 4.5 in, Depth: 3.93 in
• Electrical Connections: Lugs on both line and load sides
• Mechanical Durability: 1,000 cycles loaded, 5,000 cycles no load
• Operating Temperature: 104‰Û?158 å¡F (40‰Û?70 å¡C)

Material Compliance and Certifications:

• RoHS/REACh Compliant: The QGL32225 meets all current environmental regulations, including RoHS and REACh, ensuring that it is free from harmful substances and safe for use in environmentally sensitive areas.
• UL Listed and CSA Certified: This breaker is UL 489 listed and CSA certified, confirming its safety, reliability, and suitability for use in a wide range of electrical applications.
• NOM and IEC Certified: Certified by NOM and IEC, the QGL32225 adheres to international standards for quality and safety, making it a versatile choice for global installations.

Suitability:

• This circuit breaker is ideal for protecting electrical circuits in commercial and industrial environments where reliability and high performance are crucial. Whether it's for managing distribution systems or ensuring the safety of critical operations, this circuit breaker delivers robust performance and peace of mind. Its versatile design and high interrupting capacity make it suitable for a variety of applications, from HVAC systems to large-scale industrial equipment.
