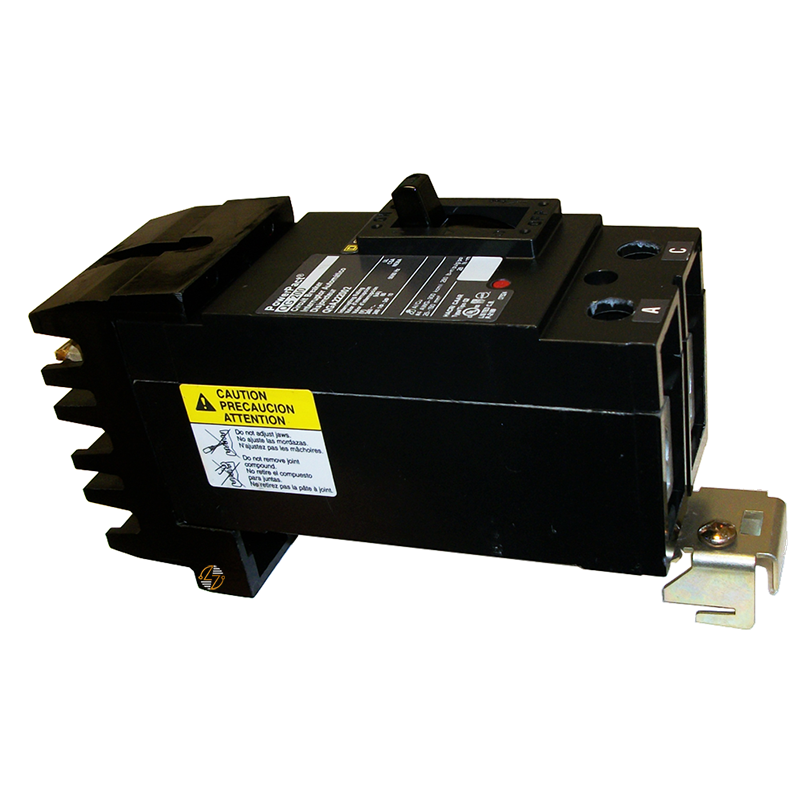

QGA222004 - 200 Amp Circuit Breaker

QGA222004 - 200 Amp Circuit Breaker

The QGA222004 PowerPact Q circuit breaker is a go-to option when you need dependable protection in a 240V system. Rated at 200 amps with a 2-pole design, it’s commonly used in commercial and light industrial setups where consistency matters more than anything fancy. It uses a thermal-magnetic trip, so it reacts the way you’d expect—handling overloads and short circuits without overcomplicating things. The 65kA interrupting rating gives it the ability to deal with higher fault levels, which makes it a good fit for more demanding panels. Installation is pretty straightforward. The I-Line connection on the line side helps it snap into place in compatible equipment, while the load-side lugs give you flexibility when wiring. There’s also a push-to-trip button on the front, which makes testing quick during routine checks—no extra tools or guesswork. It’s not flashy, but that’s the point. This is the kind of breaker that just works and keeps your system protected.

Key Features and Benefits

• 65kA interrupting rating for handling higher fault currents
• Thermal-magnetic trip unit for reliable protection
• 200A, 2-pole setup for standard distribution needs
• I-Line mounting for quick, secure installation
• Push-to-trip button for easy testing
• HACR rated for HVAC and refrigeration use
• Built for consistent, repeat operation over time

Technical Specifications

• Catalog Number: QGA222004
• Amperage: 200A
• Poles: 2
• Voltage: 240VAC, 50/60 Hz
• Interrupting Capacity: 65kA @ 120/208V AC and 240V AC
• Trip Type: Thermal-Magnetic
• Magnetic Trip: 2400A
• Continuous Rating: 80%
• Mounting Type: I-Line
• Line Connection: I-Line
• Load Connection: Lugs
• Dimensions: 6.47" H x 3" W x 3.93" D

Material Compliance and Certifications

• UL Listed
• CSA Certified
• NOM Compliant
• IEC Certified
• Meets standard requirements for commercial and industrial electrical equipment.

Where It Works Best

• You’ll usually see this breaker in:
• Commercial panelboards
• Industrial equipment setups
• HVAC systems (it’s HACR rated)
• Replacement or upgrade jobs where a 200A breaker is needed
