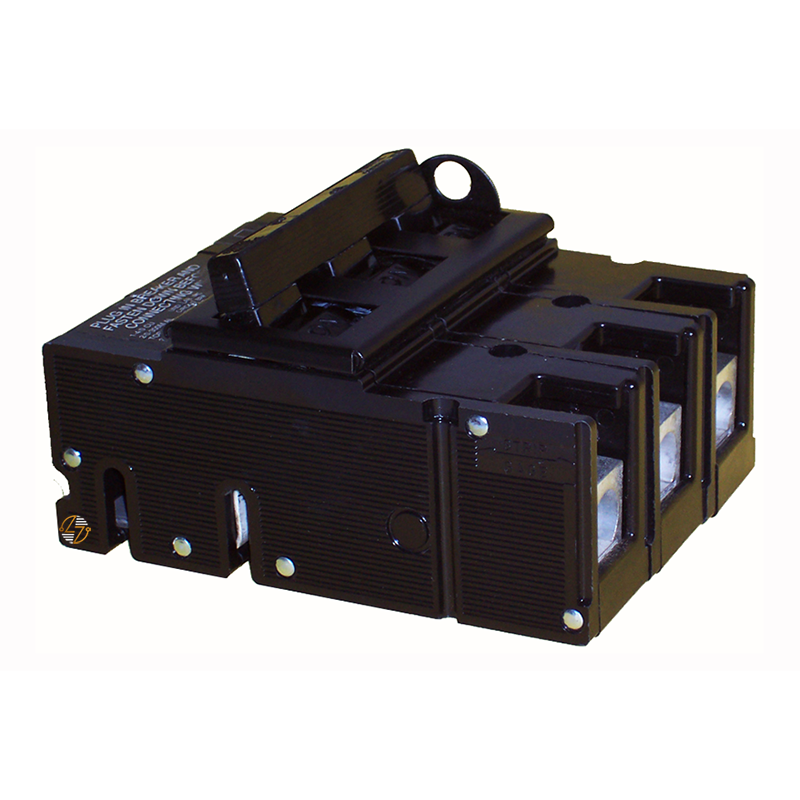

QFP24175-3 - 175Amp Circuit Breaker

QFP24175-3 - 175Amp Circuit Breaker

The QFP24175-3 is a Type QFP24 molded case circuit breaker rated at 175 amps with a 3-pole configuration and a 10kA interrupting rating at 240VAC. It is used in compatible electrical distribution systems to protect circuits from overloads and short circuits. When you're replacing an existing breaker, the part number, amperage, pole configuration, and interrupting rating should match the original specifications. The QFP24175-3 is intended for applications that require a compatible Type QFP24 breaker with the same form, fit, and function. Built to last, it can be used during routine maintenance, repairs, or replacement of existing equipment.

Key Features and Benefits

• Type QFP24 molded case circuit breaker
• 175-amp current rating
• 3-pole design
• 10kA interrupting capacity at 240VAC
• Form, fit, and function replacement for compatible installations
• Built to last


Technical Specifications

• Part Number: QFP24175-3

• Type: QFP24

• Poles: 3

• Amperage: 175 Amps

• Voltage: 240 VAC

• Interrupting Rating: 10kA @ 240VAC

• Dimensions:
  • Height: 7.0 in.
  • Width: 5.0 in.
  • Depth: 4.0 in.

Material Compliance and Certifications

• Compliance markings and certifications may vary by manufacturing run. Check the product label and your equipment requirements before installation.


Where It Works Best

• The QFP24175-3 is commonly used in commercial buildings, industrial facilities, manufacturing plants, and other electrical distribution systems that require a compatible Type QFP24 circuit breaker. It is suitable for maintenance, repair, and replacement work where the original electrical ratings need to be maintained.
