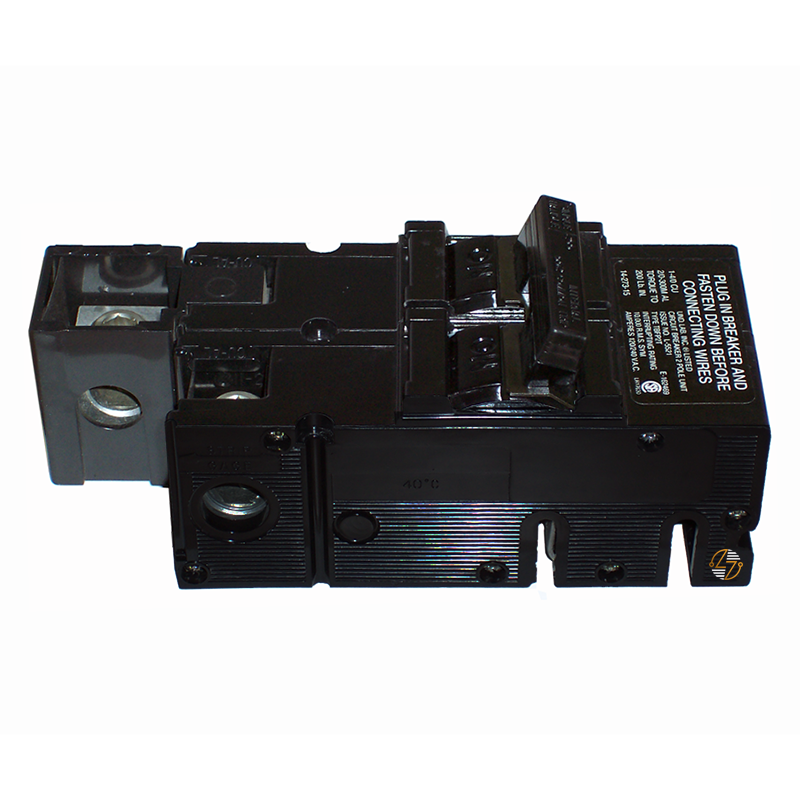

QFP2200-2T - 200 Amp Circuit Breaker

QFP2200-2T - 200 Amp Circuit Breaker

The QFP2200-2T is a 2-pole, 200-amp thermal magnetic circuit breaker used as a main residential plug-in breaker in compatible electrical panels. It has a 120/240VAC voltage rating and a 10kAIC interrupting capacity, making it suitable for residential applications that require these electrical specifications.

This breaker has a molded case construction and uses a thermal magnetic trip mechanism to respond to overloads and short circuits. Its off-set lugs allow conductors to enter perpendicular to the length of the breaker, a design that fits compatible panel layouts and can simplify wire routing during installation.

When you're replacing a breaker, matching the original part number, amperage, voltage, pole configuration, and interrupting rating is important. The QFP2200-2T is manufactured to provide the same form, fit, and function as the original breaker in compatible equipment. It is built to last when installed in the correct application.

Key Features and Benefits

• 2-pole configuration
• 200 Amp rating
• 120/240VAC
• 10kAIC interrupting capacity
• Main residential plug-in breaker
• Thermal magnetic trip mechanism
• Molded case construction
• Offset lugs for perpendicular wire entry
• Form, fit, and function replacement

Technical Specifications

• Part Number: QFP2200-2T
• Type: QFP-2T
• Poles: 2
• Amperage: 200 Amps
• Voltage: 120/240VAC
• Interrupting Rating: 10kAIC
• Dimensions:
  • Height: 7.5 in.
  • Width: 3.0 in.
  • Depth: 2.56 in.

Material Compliance and Certifications

• The QFP2200-2T is a molded case thermal magnetic circuit breaker rated for 120/240VAC systems with a 10kAIC interrupting capacity. Install only in equipment designed for this breaker and follow all applicable electrical codes.

Where It Works Best

• The QFP2200-2T is intended for compatible residential electrical panels that use a 200-amp, 2-pole main plug-in circuit breaker. It is commonly used when replacing an existing breaker with the same electrical ratings and physical configuration.
