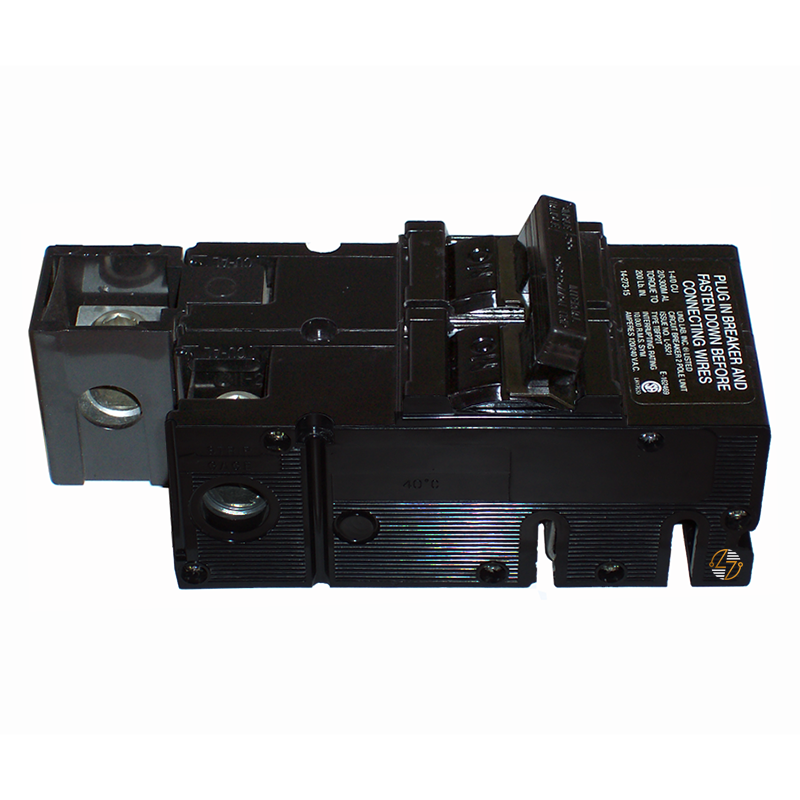

QFP2175-2T - 175 Amp Circuit Breaker

QFP2175-2T - 175 Amp Circuit Breaker

The QFP2175-2T is a 2-pole, 175 amp thermal magnetic circuit breaker used as a main breaker in your compatible residential electrical panels. It is rated for 120/240 VAC and has a 10kAIC interrupting capacity at 240 VAC. The molded case design includes offset lugs, allowing conductors to enter perpendicular to the breaker.

This breaker is used when the existing panel requires a QFP2175-2T or a breaker with the same ratings and dimensions. Before installation, confirm that the part number, amperage, voltage, and interrupting rating match the original equipment. Using the correct replacement helps you to maintain the panel's intended configuration. The QFP2175-2T is built to last and is intended as a form, fit, and function replacement for compatible applications.

Key Features and Benefits

• 175 Amp rating
• 2 poles
• Main residential plug-in design
• Thermal magnetic trip mechanism
• Molded case construction
• 120/240 VAC rating
• 10kAIC @ 240 VAC
• Offset lugs for perpendicular wire entry
• Form, fit, and function replacement

Technical Specifications

• Part Number: QFP2175-2T

• Type: QFP-2T

• Poles: 2

• Amperage: 175 Amps

• Voltage Rating: 120/240 VAC

• Interrupting Rating: 10kAIC @ 240 VAC

• Dimensions:
  • Height: 7.5 in.
  • Width: 3.0 in.
  • Depth: 2.56 in.
• Breaker Type: Main Residential Plug-In

• Trip Type: Thermal Magnetic

• Lug Style: Offset


Material Compliance and Certifications

• This molded case thermal magnetic circuit breaker is intended for use in compatible electrical distribution equipment. Check the required ratings and dimensions before installation. Follow applicable local and national electrical codes.

Where It Works Best

• The QFP2175-2T is used in residential load centers that require a 175 amp, 2-pole main breaker. It is commonly installed during breaker replacement when the original part number and specifications need to be matched.
