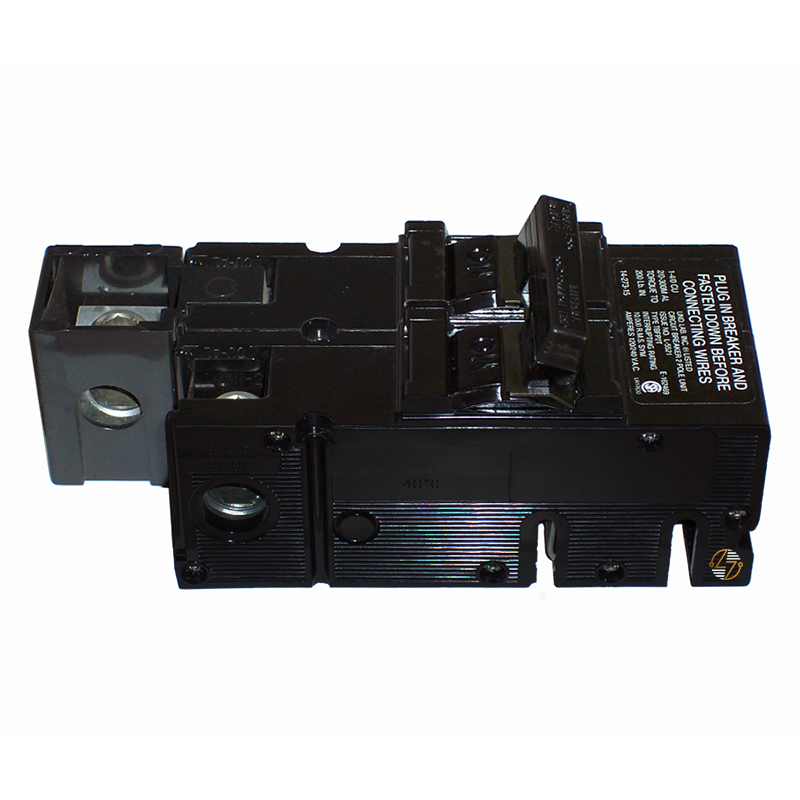

QFP2150-2T - 150 Amp Circuit Breaker

QFP2150-2T - 150 Amp Circuit Breaker

The QFP2150-2T is a 150-amp, 2-pole main residential plug-in molded-case thermal-magnetic circuit breaker designed for your applications requiring dependable overcurrent and short-circuit protection in compatible residential electrical distribution equipment. Built with offset lugs, this breaker allows conductors to enter perpendicular to the breaker's length, making installation compatible with equipment designed for this configuration. With a 10 kA IC interrupting rating at 240 Volts AC, the QFP2150-2T is intended as a form, fit, and function replacement for your compatible electrical systems. Constructed for long-lasting service, it combines thermal and magnetic trip protection to safeguard electrical circuits against overloads and short circuits while remaining compatible with existing residential panel applications.

Key Features and Benefits

• 150 Amp continuous current rating for higher-capacity residential applications
• 2-pole design for use on 120/240 VAC electrical systems
• Main residential plug-in molded case circuit breaker
• Thermal magnetic trip mechanism helps protect against overloads and short circuits
• 10kAIC interrupting capacity at 240 Volts AC
• Offset lugs allow wire entry perpendicular to the length of the circuit breaker.
• Designed as a form, fit, and functional replacement for compatible equipment
• Built to last for dependable service in properly maintained electrical systems

Technical Specifications

• Part Number: QFP2150-2T

• Type: QFP-2T

• Circuit Breaker Style: Main Residential Plug-In

• Breaker Construction: Molded Case

• Trip Unit: Thermal Magnetic

• Poles: 2

• Amperage Rating: 150 Amps

• Voltage Rating: 120/240 VAC

• Interrupting Rating: 10kAIC @ 240 VAC

• Lug Configuration: Offset Lugs (Perpendicular Wire Entry)

• Dimensions:
  • Height: 7.5 in.
  • Width: 3.0 in.
  • Depth: 2.56 in.

Material Compliance and Certifications

• Molded case circuit breaker construction
• Thermal magnetic overcurrent protection
• Rated 10kAIC at 240 Volts AC
• Designed for installation in compatible residential electrical equipment when used in accordance with applicable electrical codes and manufacturer requirements

Where It Works Best

• The QFP2150-2T is well-suited for compatible residential load centers and main breaker applications requiring a 150-amp, 2-pole main circuit breaker. Its offset lug design accommodates installations where conductors are intended to enter perpendicular to the breaker body, helping maintain the original equipment configuration. It is commonly used as a form, fit, and functional replacement in residential electrical systems that require these specific electrical ratings and physical dimensions.
