QFP200-2 - 200 Amp Circuit Breaker

QFP200-2 - 200 Amp Circuit Breaker

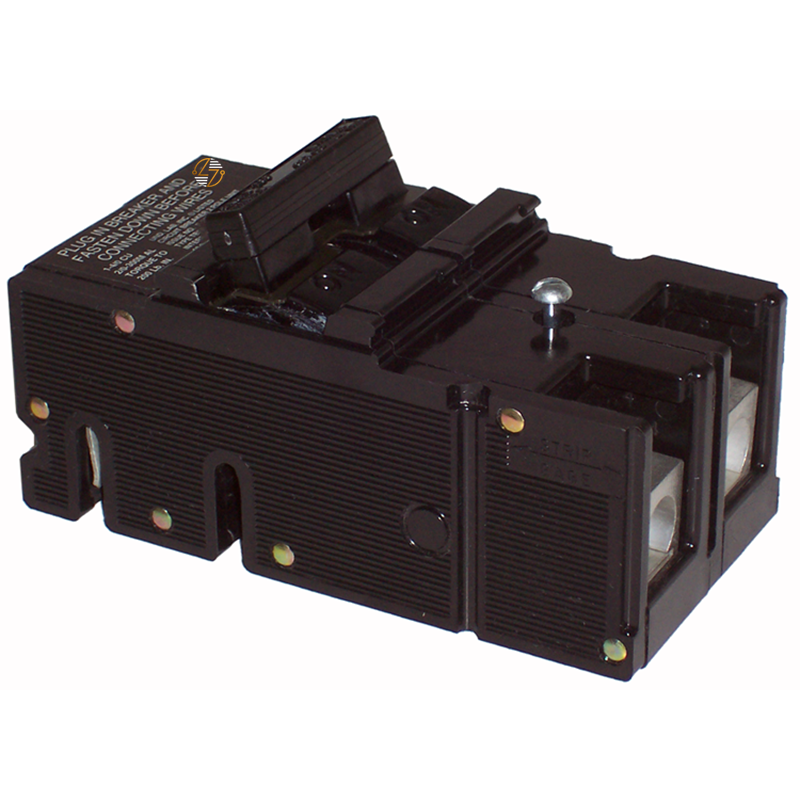

The QFP200-2 200 Amp Circuit Breaker is designed for electrical systems that demand steady power delivery and dependable protection. Built to manage high current loads, this 2-pole breaker is well suited for residential, commercial, and light industrial applications where safety and performance matter every day. Its QFP frame construction supports consistent operation while helping protect wiring and connected equipment from overloads and short circuits. Whether it’s safeguarding a main service panel or supporting power-hungry equipment, the QFP200-2 delivers reliable circuit interruption you can count on, installation after installation.

Key Features and Benefits

• High Current Capacity – Rated at 200 amps, making it a strong choice for large circuits and high-draw electrical systems.
• Effective Fault Protection – Provides an interrupting rating of 10,000 amps at 120/240 VAC to help reduce damage during electrical faults.
• Built for Daily Use – Designed with durable internal components that support long service life in demanding environments.
• Quick Trip Action – Responds promptly to overloads and short circuits, helping protect connected equipment.
• Space-Conscious Design – Compact dimensions allow for easier installation in compatible panel configurations.

Technical Specifications

• Poles: 2
• Current Rating: 200 Amps
• Voltage Rating: 120/240 VAC
• Interrupting Capacity: 10 kA @ 120/240 VAC
• Frame Type: QFP
• Dimensions:
  • Width: 3.00 inches
  • Length: 6.00 inches
  • Depth: 2.56 inches
• Weight: 5.00 lbs

Material Compliance and Certifications

Manufactured using quality, tested materials that meet established electrical safety and performance standards. Each unit is designed to deliver consistent protection and dependable operation in properly rated systems.

Where It Works Best

• Residential Applications – Ideal for main service panels, HVAC systems, and high-demand circuits such as EV charging setups.
• Commercial Settings – Suitable for offices, retail spaces, and buildings with moderate electrical loads.
• Light Industrial Use – A solid option for workshops, small machinery, and auxiliary power systems where stable circuit protection is required.
