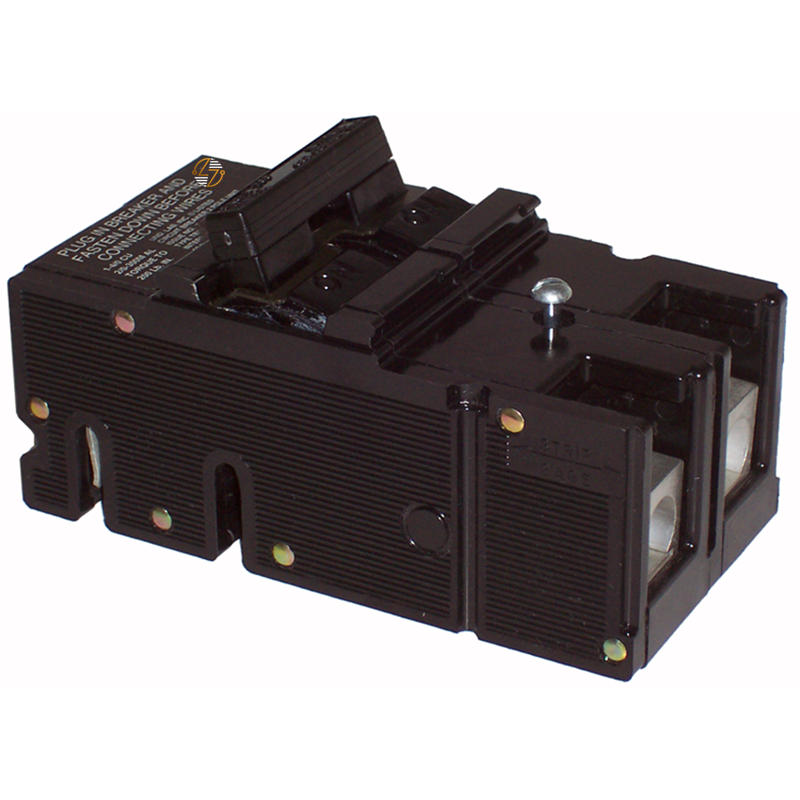

QFP125-2 - 125 Amp Circuit Breaker

QFP125-2 - 125 Amp Circuit Breaker

The QFP125-2 is a 125 Amp, 2-pole molded case circuit breaker designed for use as a main residential plug-in breaker in your compatible electrical panels. It features a thermal magnetic trip mechanism that responds to overloads and short circuits, helping you to protect the electrical system from excessive current. With a 120/240VAC voltage rating and a 10kA interrupting capacity, this breaker is intended for residential applications that require these electrical specifications. Before replacing an existing breaker, it's important to confirm that the part number, electrical ratings, and panel compatibility all match the original installation. Choosing the correct replacement helps you maintain the intended operation of the electrical system. The molded case construction is made for everyday service and is built to last. Whether replacing a damaged breaker or servicing an existing panel, the QFP125-2 is intended as a form, fit, and functional replacement for compatible QFP applications.

Key Features and Benefits

• 125 Amp current rating.
• Two-pole design.
• Main residential plug-in configuration.
• Thermal magnetic trip mechanism.
• Molded case construction built to last.
• 10 kA interrupting rating at 120/240 VAC.
• Form, fit, and functional replacement for compatible QFP circuit breakers.


Technical Specifications

• Part Number: QFP125-2

• Type: QFP

• Product Type: Molded Case Thermal Magnetic Circuit Breaker

• Mounting Style: Main Residential Plug-In

• Poles: 2

• Current Rating: 125 Amps

• Voltage Rating: 120/240 VAC

• Interrupting Rating: 10kA @ 120/240VAC

• Dimensions:
  • Height: 6.0 inches
  • Width: 3.0 inches
  • Depth: 2.56 inches

Material Compliance and Certifications

• This molded case circuit breaker is manufactured for use in compatible residential electrical equipment.
• Installers should verify compatibility, electrical ratings, and any certification markings on the breaker before installation. All work should be completed in accordance with applicable electrical codes.


Where It Works Best

• The QFP125-2 is intended for compatible residential load centers that use a 125 Amp, 2-pole main plug-in circuit breaker. It is commonly used when replacing an existing breaker with the same electrical ratings and physical configuration during maintenance or repair.
