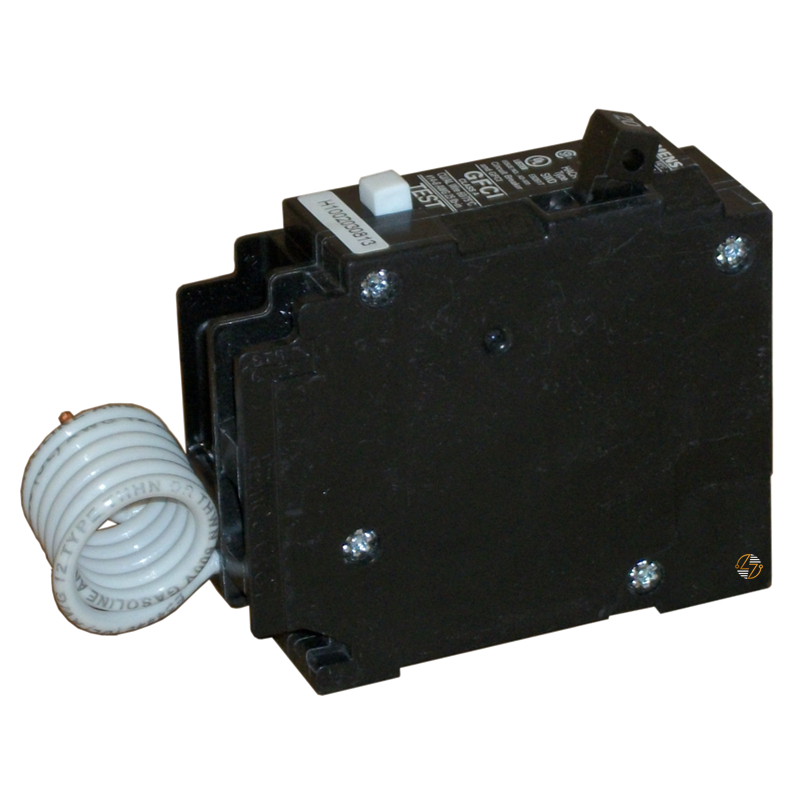

QF130 - 30Amp Circuit Breaker

QF130 - 30Amp Circuit Breaker

The QF130 is a 30-Amp, 1-pole Type QPF Ground-Fault Circuit Interrupter (GFCI) circuit breaker designed to provide both branch-circuit protection and Class A ground-fault protection (5 mA trip level) for 120 VAC electrical systems. Built for your applications requiring personnel protection from ground faults, this plug-on breaker combines thermal-magnetic overcurrent protection with integrated GFCI functionality in a single device. Its 10 kA interrupting capacity helps protect electrical equipment during fault conditions. At the same time, le the HACR rating makes it suitable for use in heating, air conditioning, and refrigeration applications where permitted by code. Designed for proper form, fit, and function in compatible load centers and panelboards, the QF130 is built to last and provides a dependable replacement option for maintaining your existing electrical systems.

Key Features and Benefits

• 30 Amp current rating for compatible 120VAC branch circuits.
• Single-pole design for 120VAC applications.
• Type QPF configuration for compatible electrical panels.
• Integrated Class A Ground-Fault Circuit Interruption (GFCI) with a 5mA trip threshold to help protect people from electrical shock.
• 10kA A.I.C. interrupting rating at 120VAC.
• Plug-on installation for compatible load centers.
• HACR Rated for approved heating, air conditioning, and refrigeration applications.
• Combines overcurrent and ground-fault protection in one breaker.
• Built to last for dependable service in compatible electrical systems.


Technical Specifications

• Part Number: QF130

• Type: QPF

• Poles: 1

• Amperage: 30 Amps

• Voltage: 120VAC

• Interrupting Rating (A.I.C.): 10kA @ 120VAC

• Ground-Fault Protection: Class A GFCI (5mA)

• Mounting Style: Plug-On

• HACR Rated: Yes

• Dimensions:
  • Height: 3.13 in.
  • Width: 1.00 in.
  • Depth: 2.50 in.

Material Compliance and Certifications

• Class A Ground-Fault Circuit Interruption (GFCI) protection with a 5mA trip threshold.
• HACR Rated for qualifying HVAC and refrigeration applications.
• Manufactured to meet applicable industry standards for its design and intended use.
• Intended for installation in compatible equipment and in accordance with applicable electrical codes and manufacturer specifications.


Where It Works Best

• The QF130 is well suited for 120VAC branch circuits requiring both overcurrent protection and Class A ground-fault protection, including locations where electrical codes specify GFCI protection. It is commonly used in compatible residential, commercial, and light-industrial electrical systems, as well as in approved HVAC and refrigeration installations. When replacing an existing breaker, always verify compatibility with the installed panelboard or load center and confirm that the electrical ratings match the application's requirements.
