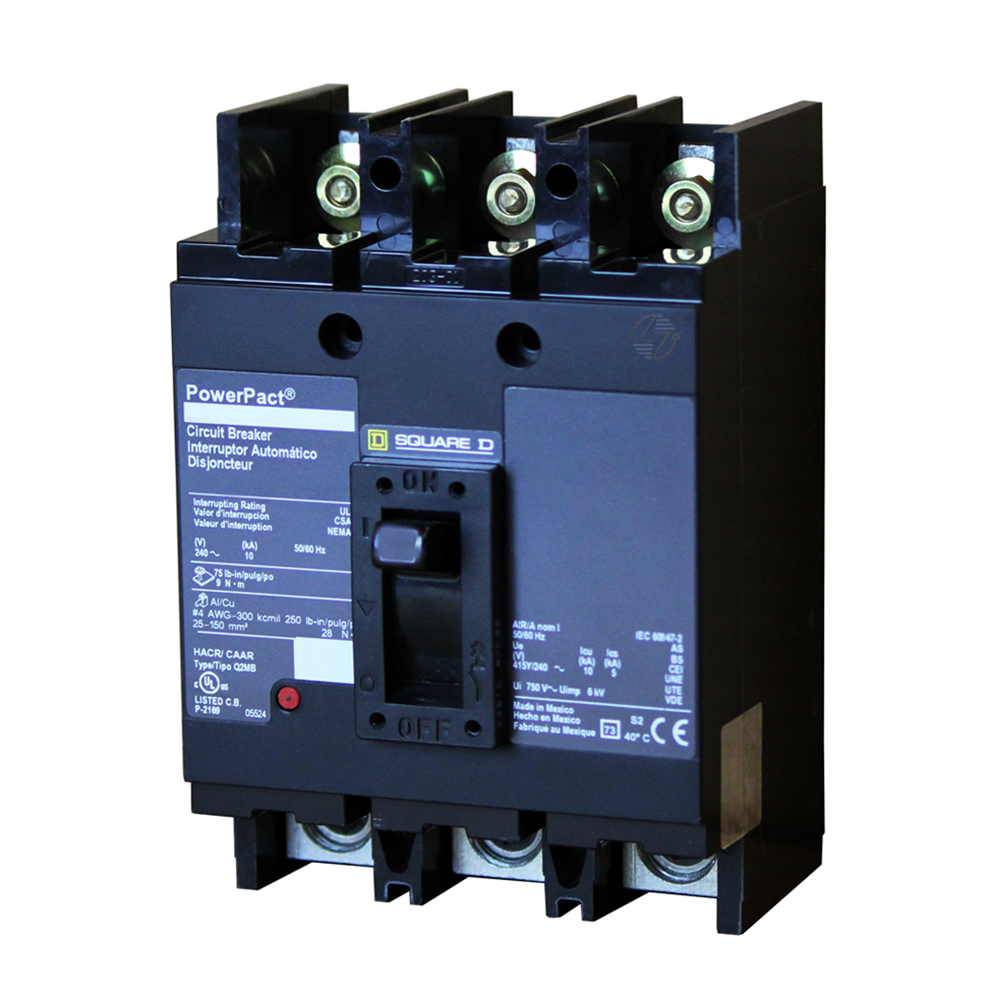

QDP32200TP - 200 Amp Circuit Breaker

QDP32200TP - 200 Amp Circuit Breaker

The QDP32200TP 200A Circuit Breaker is built for heavy-duty performance, delivering reliable overcurrent protection in commercial and industrial environments. Whether you're upgrading existing electrical infrastructure or starting a new installation, this breaker offers the safety, durability, and ease-of-use that professionals trust.

Key Features and Benefits

• Handles High Faults with Confidence: Rated for 25,000 amps interrupting capacity at 240VAC and 208Y/120VAC, this breaker is ready to handle significant electrical faults, helping to reduce system damage and downtime.
• Built for Easy Installation: Comes equipped with terminal nuts on the line side and sturdy lugs on the load side, making installation quicker and more secure. It also includes a push-to-trip button for straightforward manual testing.
• Designed to Last: With a mechanical lifespan of up to 5,000 cycles, the QDP32200TP is built to hold up over time, even in demanding environments. That means fewer replacements and less maintenance.

Technical Specifications

• Rated Current: 200 Amps

• Poles: 3

• Voltage: 240V AC, 50/60 Hz

• Interrupting Capacity:
  • 25kA at 120/208V AC and 240V AC
• Continuous Current Rating: 80%

• Magnetic Trip Setting: 2400 Amps

• Impulse Withstand Voltage: 8kV

• Dimensions:
  • Height: 6.47 inches
  • Width: 4.5 inches
  • Depth: 3.93 inches
• Mounting: Unit mount with lugs on load side, terminal nuts on line side

• Control: Handle with push-to-trip test button

• Durability: 1,000 load cycles, 5,000 no-load cycles


Material Compliance and Certifications

• UL Listed: for dependable safety and performance
• CSA and NOM Certified: to meet North American electrical standards
• RoHS / REACh Compliant: Environmentally friendly with no hazardous substances
• Green Premium Label from Schneider Electric: for sustainable product assurance

Suitability

• Industrial facilities – Protects high-powered machinery and equipment with confidence
• Commercial buildings – Maintains safe electrical distribution in offices, retail spaces, and service centers
