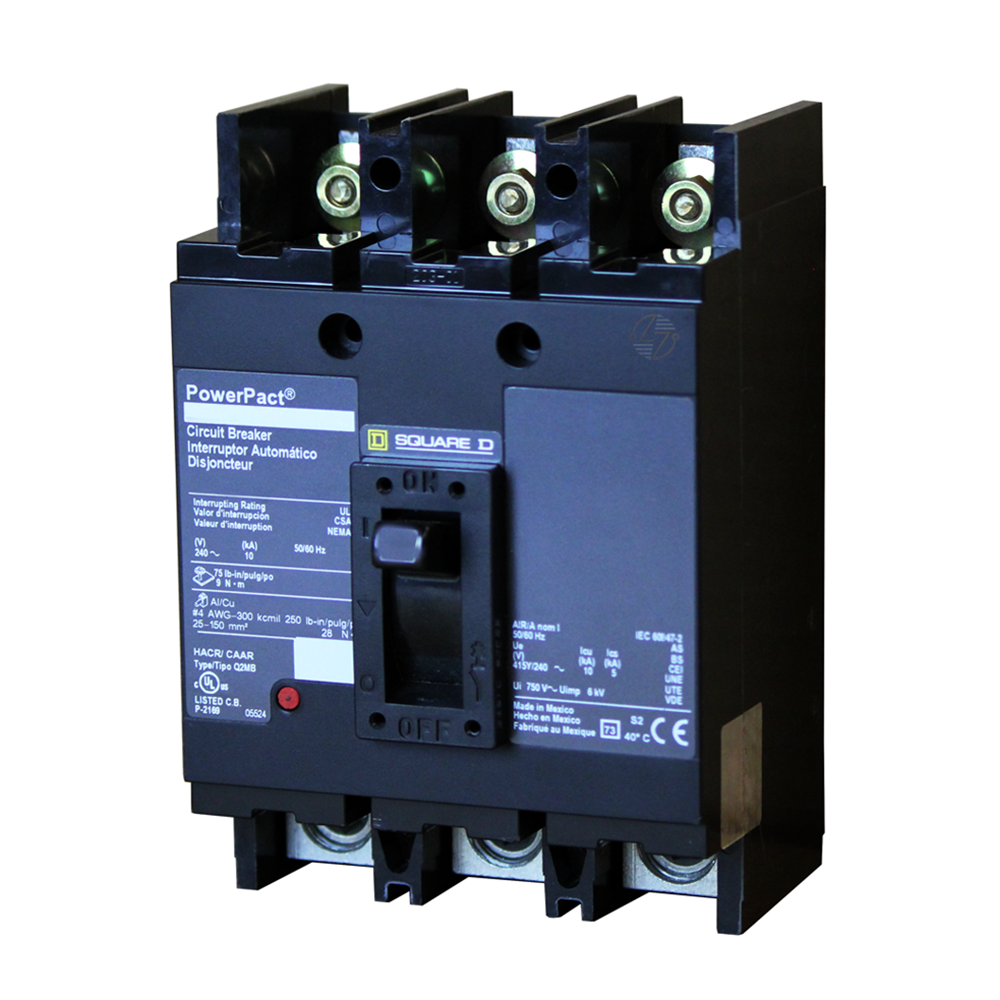

QDP32175TP - 175 Amp Circuit Breaker

QDP32175TP - 175 Amp Circuit Breaker

The QDP32175TP is a 3-pole, 175-amp thermal magnetic circuit breaker designed to provide dependable overcurrent and short-circuit protection for your commercial and industrial electrical distribution systems. Built with a non-interchangeable trip unit, this breaker delivers consistent performance by maintaining a fixed trip setting, helping you to protect connected equipment from overloads and fault conditions. Rated for 25 kA interrupting capacity at 240 VAC, it is well suited for applications where reliable circuit protection is essential. The breaker features 1/4-20" studs on the line side for secure incoming power connections and lug terminals on the load side for straightforward field wiring. Whether you're replacing an existing breaker or maintaining electrical infrastructure, the QDP32175TP offers the performance and durability professionals expect for demanding power distribution environments.

Key Features and Benefits

• 175 Amp continuous current rating for higher-capacity electrical distribution applications.
• 3-pole configuration protects three-phase electrical systems.
• Thermal magnetic trip mechanism responds to both sustained overloads and instantaneous short circuits.
• Non-interchangeable trip unit maintains a fixed trip rating for consistent circuit protection.
• 25 kA interrupting capacity at 240 VAC helps safely interrupt high fault currents.
• 1/4-20" line-side studs provide secure incoming power connections.
• Load-side lug terminals simplify installation and field wiring.
• Designed for dependable performance in commercial and industrial power distribution systems.


Technical Specifications

• Part Number: QDP32175TP

• Type: QDP

• Trip Unit: Thermal Magnetic, Non-Interchangeable

• Poles: 3

• Current Rating: 175 Amps

• Interrupting Rating: 25kA @ 240VAC

• Line Connection: 1/4-20" Studs

• Load Connection: Lug Terminals

• Dimensions:
  • Height: 6.5 in.
  • Width: 4.5 in.
  • Depth: 3.13 in.

Material Compliance and Certifications

• The QDP32175TP is manufactured for electrical power distribution applications and is designed to meet the performance requirements of its product class.  Refer to the equipment documentation and product labeling for specific certifications, compliance with standards, and installation requirements applicable to your project.


Where It Works Best

• The QDP32175TP is an excellent choice for protecting commercial buildings, industrial facilities, manufacturing equipment, distribution panels, switchboards, and other three-phase electrical systems operating at 240VAC. Its combination of a 175-amp rating, thermal-magnetic protection, and 25 kA interrupting capacity makes it well-suited for applications that require dependable overcurrent protection, reliable operation, and secure electrical connections in demanding environments.
