QDM22100TN - 100 Amp Circuit Breaker

QDM22100TN - 100 Amp Circuit Breaker

When you need dependable protection for your commercial or industrial electrical systems, the Schneider Electric QDM22100TN PowerPacT Q-Frame Circuit Breaker delivers the performance you can trust. Designed for 240V AC applications, this 2-pole breaker handles up to 100 amps with a 25kA interrupting capacity, making it ideal for demanding environments where safety and uptime are critical. Built to last with thermal-magnetic trip technology and engineered for easy installation and maintenance, this breaker is a go-to choice for professionals who need reliable power protection without unnecessary downtime.

Key Features and Benefits

• High Fault Current Handling: Rated to safely interrupt up to 25kA at 208Y/120V AC and 240V AC, protecting your equipment during overloads and fault conditions.
• Thermal-Magnetic Trip Technology: Automatically responds to short circuits and overloads, cutting power quickly to prevent system damage.
• Durable, Long-Lasting Design: Tested for 1,000 loaded cycles and 5,000 no-load cycles, reducing replacements and minimizing operational disruptions.
• Manual Power Disconnect: Features a push-to-trip button for fast, safe manual shutoff during servicing.
• Eco-Friendly Construction: Awarded Schneider Electric’s Green Premium™ label, compliant with RoHS and REACh standards for a reduced environmental footprint.


Technical Specifications

• Voltage: 240V AC, 50/60 Hz

• Current Rating: 100A

• Poles: 2

• Interrupting Capacity: 25kA

• Impulse Withstand Voltage: 8kV (UL)

• Trip Technology: Thermal-magnetic with 2400A magnetic trip current

• Continuous Current Rating: 80%

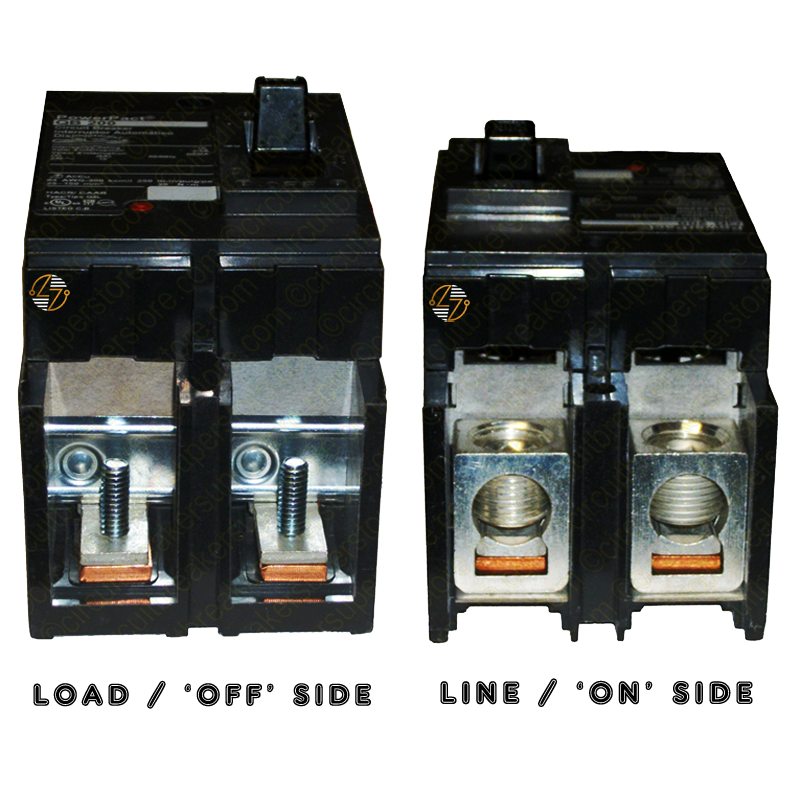

• Mounting: Unit mount with load-side lugs and line-side terminal nuts

• Connections: Lugs (line), Terminal nut (load)

• Dimensions:
  • Height: 6.47 inches
  • Width: 3 inches
  • Depth: 3.93 inches
• Mechanical Life: 1,000 loaded cycles / 5,000 unloaded cycles


Material Compliance and Certifications

• Standards Met: UL, CSA, NEMA, NOM-003-SCFI-2000
• Certifications: UL Listed, CSA Certified, NOM Approved
• Environmental Compliance: RoHS and REACh compliant, PVC-free, halogen-free
• Sustainability: Green Premium™ eco-label


Suitability

• The QDM22100TN is commonly installed in HVAC systems, commercial buildings, data centers, and industrial facilities that require dependable power protection. Electricians, contractors, and facility managers choose this breaker for its proven reliability, long service life, and straightforward maintenance in mission-critical electrical setups.
