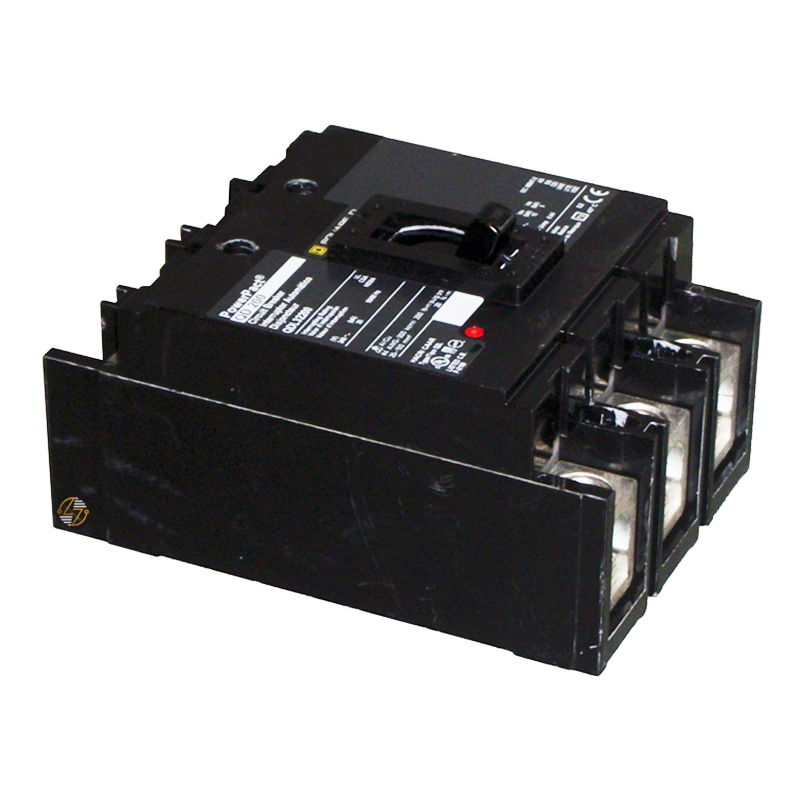

QDL32100 - 100 Amp Circuit Breaker

QDL32100 - 100 Amp Circuit Breaker

Protect your electrical system with the QDL32100 PowerPact Q-frame circuit breaker. This 3-pole, 100-amp breaker handles demanding commercial and industrial applications with ease. It operates at 240VAC and interrupts up to 25kA of fault current, giving you dependable protection. The thermal-magnetic trip unit reacts quickly to both overloads and short circuits, keeping your equipment safe and your operation running without interruption.

Key Features and Benefits

• Handles Fault Currents: Up to 25kA, ensuring strong electrical protection.
• Thermal-Magnetic Trip Technology: Responds fast to overloads and short circuits.
• Easy Installation: Supports lug or bus-mounted configurations.
• Durability: Withstands up to 1000 loaded cycles and 5000 no-load cycles for long-lasting use.
• Safety Standards: Meets UL, CSA, and IEC safety standards for proven reliability.


Technical Specifications

• Rated Current: 100A

• Poles: 3

• Voltage: 240VAC, 50/60 Hz

• Impulse Withstand Voltage: 8 kV UL

• Magnetic Tripping: 2400A

• Magnetic Hold: 1200A

• Breaking Capacity: 25kA at 240VAC

• Dimensions:
  • Height: 6.47 inches
  • Width: 4.5 inches
  • Depth: 3.93 inches

Material Compliance and Certifications

• Environmental Compliance: Meets RoHS and REACh standards and avoids hazardous substances.
• Green Premium™ Label: Indicates environmental performance.
• Certifications: Certified by UL, CSA, and NOM for safety and quality assurance.


Suitability

• Use the QDL32100 circuit breaker to protect power systems in commercial buildings, industrial plants, and utility installations. Install it in panelboards, switchboards, or standalone enclosures when you need consistent, dependable circuit protection. The QDL32100 gives you a durable, safety-focused solution that keeps your electrical infrastructure performing at its best.
