QDF32175TS - 175 Amp Circuit Breaker

QDF32175TS - 175 Amp Circuit Breaker

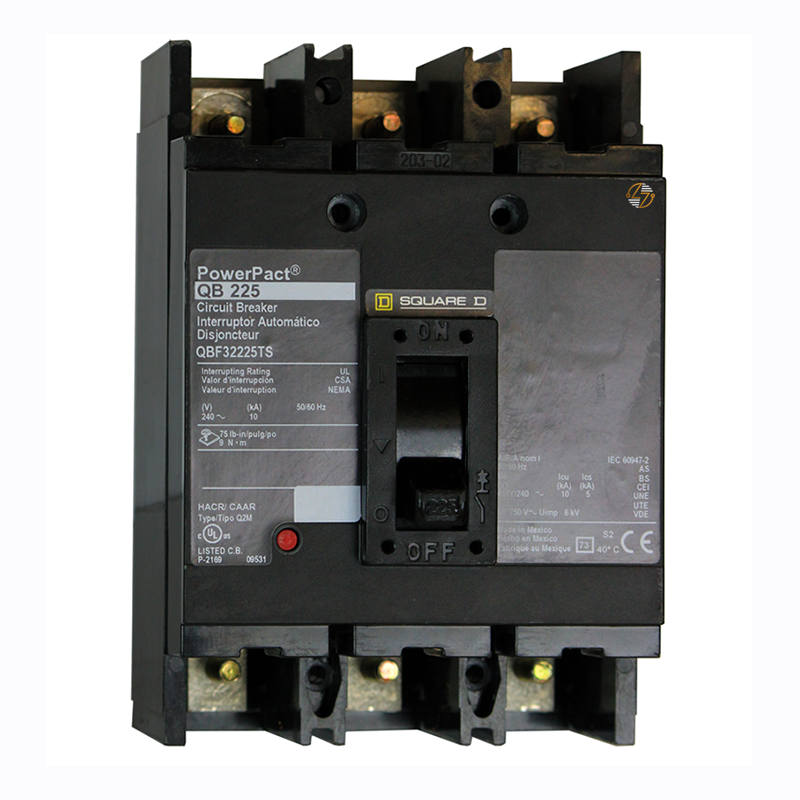

The QDF32175TS is a 3-pole, 175-amp thermal-magnetic circuit breaker designed to provide dependable overcurrent and short-circuit protection for 240 VAC electrical distribution systems. Featuring a 25 kA interrupting capacity at 240 VAC, this breaker helps protect electrical equipment and branch circuits in demanding commercial and industrial applications. Its non-interchangeable trip unit provides a fixed protective setting, helping maintain consistent system coordination and reducing the possibility of unauthorized trip modifications. Built with 1/4-20 inch studs on both the line and load sides, the QDF32175TS allows for secure cable terminations where stud-mounted connections are required. Whether you're replacing an existing breaker or maintaining critical electrical infrastructure, this thermal-magnetic breaker delivers the reliable performance and circuit protection that professionals expect.

Key Features and Benefits

• 175 Amp current rating for medium- to high-capacity electrical distribution applications.
• 3-pole configuration protects three-phase power systems.
• Thermal magnetic trip mechanism responds to both prolonged overloads and instantaneous short-circuit conditions for dependable circuit protection.
• A 25 kA interrupting rating at 240 VAC helps safely interrupt high fault currents.
• Non-interchangeable trip unit maintains a fixed trip calibration for consistent protection.
• 1/4-20-inch studs on both the line and load sides provide secure, reliable cable terminations.
• Engineered for dependable performance in commercial, industrial, and institutional electrical systems.
• Suitable for replacement, maintenance, and equipment service applications where compatible QDF breakers are specified.


Technical Specifications

• Part Number: QDF32175TS

• Type: QDF

• Trip Unit: Thermal Magnetic, Non-Interchangeable

• Poles: 3

• Amperes: 175A

• Interrupting Capacity: 25kA @ 240VAC

• Voltage Rating: 240VAC

• Line/Load Connections: 1/4-20" Studs on Both Line and Load Sides

• Dimensions:
  • Height: 6.5 in.
  • Width: 4.5 in.
  • Depth: 3.13 in.

Material Compliance and Certifications

• The QDF32175TS is manufactured to meet the design and performance requirements associated with its product series. Always verify compatibility with your existing electrical equipment and consult applicable local electrical codes, equipment documentation, and installation requirements before installation. Proper installation by a qualified electrical professional is recommended to help ensure safe operation and compliance with applicable standards.


Where It Works Best

• The QDF32175TS is well-suited for a wide variety of commercial and industrial electrical distribution applications requiring dependable three-phase overcurrent protection. Typical installations include commercial buildings and office facilities, manufacturing and industrial plants, electrical distribution panels, mechanical equipment and HVAC systems, pumps, compressors, and motor-driven equipment, institutional and educational facilities, and service entrance and power distribution equipment where a compatible QDF breaker is specified. With its combination of a 175A rating, thermal magnetic protection, 25kA interrupting capacity, and stud-style line and load connections, the QDF32175TS offers a dependable solution for protecting valuable electrical equipment while supporting reliable operation in demanding environments.
