QDF22175TS - 175 Amp Circuit Breaker

QDF22175TS - 175 Amp Circuit Breaker

Schneider Electric designed the QDF22175TS circuit breaker to deliver dependable protection for 240VAC systems. This 175-amp, 2-pole breaker safeguards wiring and equipment by quickly cutting power during overloads or short circuits. Electricians and facility managers choose it for its ability to handle high fault currents while keeping electrical systems running safely and efficiently. With a 25kA interrupting rating and a responsive thermal-magnetic trip system, it actively protects your setup from costly damage and downtime.

Key Features and Benefits

• Interrupts up to 25kA at 240VAC: Shields circuits from severe electrical faults.
• Thermal-Magnetic Trip Unit: Detects and responds rapidly to overloads and short circuits.

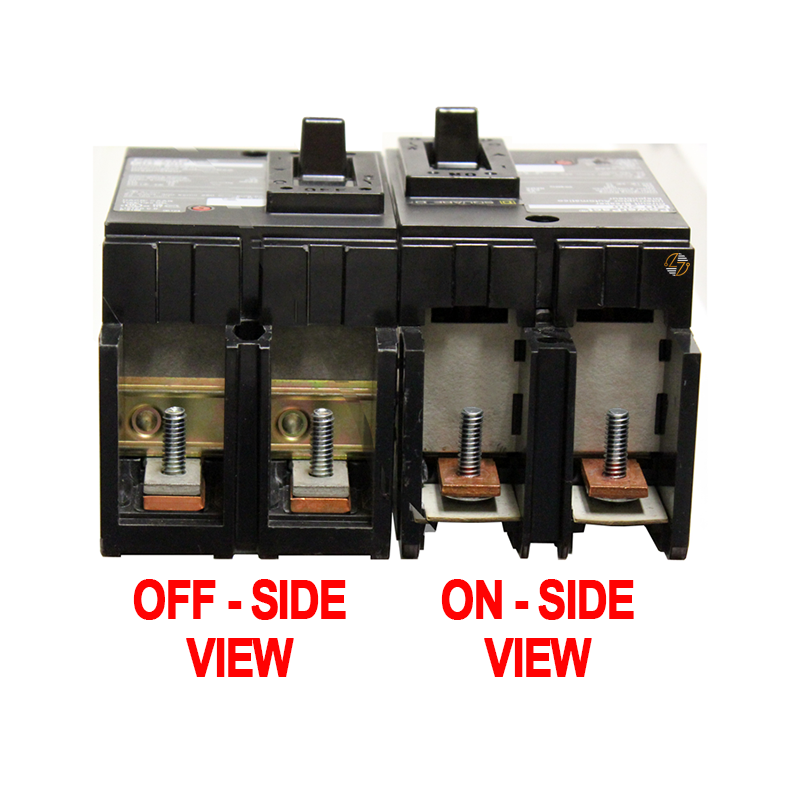

• Easy Installation: Busbar connections and studs on both line and load sides.
• Push-to-Trip Button: Allows manual shutdown during maintenance or emergencies.


Technical Specifications

• Amperage: 175A

• Poles: 2

• Voltage: 240V AC, 50/60 Hz

• Interrupting Capacity:
  • 25kA at 120/208V AC
  • 25kA at 240V AC
• Impulse Voltage: 8kV

• Mechanical Life: 1,000 loaded cycles / 5,000 no-load cycles

• Mounting: Unit mount with busbar

• Dimensions:
  • Width: 3.00 inches
  • Length: 6.50 inches
  • Depth: 3.13 inches
• Weight: 4.10 lbs


Material Compliance and Certifications

• Environmental Standards: Meets RoHS and REACh environmental standards and carries Schneider Electric’s Green Premium™ sustainability label.
• Certifications: Holds UL, CSA, and NOM certifications for verified safety and quality.


Suitability

• Use this breaker in industrial facilities, commercial buildings, and large residential panels that demand high amperage protection. Professionals rely on it to actively protect electrical systems, minimize hazards, and maintain uninterrupted operation.
