QDF22100TS - 100 Amp Circuit Breaker

QDF22100TS - 100 Amp Circuit Breaker

The QDF22100TS from Schneider Electric’s PowerPacT Q-Frame series delivers dependable protection for your electrical systems. This 2-pole, 100-amp breaker actively safeguards against overloads and short circuits in 240VAC applications. Electricians and contractors choose it for its strong 25kA interrupting capacity and proven performance in residential, commercial, and light industrial environments.

Key Features and Benefits

• Stops Dangerous Faults: Handles up to 25kA at 240VAC to quickly interrupt severe short circuits.
• Ensures Precise Tripping: Thermal magnetic trip unit reacts fast to overloads, preventing equipment damage.

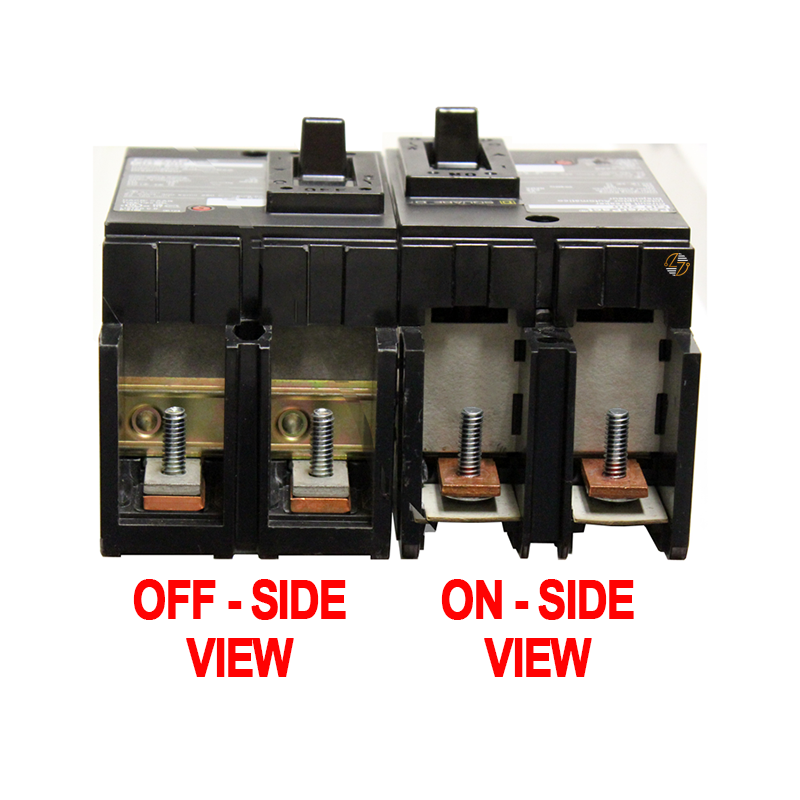

• Simplifies Installation: Busbar connection with studs on both ends allows you to mount and wire it easily.
• Gives You Manual Control: Built-in push-to-trip button lets you safely disconnect power during service or emergencies.


Technical Specifications

• Amperage: 100A

• Poles: 2

• Voltage Rating: 240V AC, 50/60 Hz

• Interrupting Capacity:
  • 25kA at 120/208V AC and 240V AC
• Impulse Withstand: 8kV

• Durability: 1,000 cycles (loaded), 5,000 cycles (no load)

• Mounting: Unit mount, busbar

• Dimensions:
  • Width: 3.00 inches
  • Length: 6.50 inches
  • Depth: 3.13 inches
• Weight: 4.10 lbs


Material Compliance and Certifications

• Environmental Standards: Meets RoHS and REACh environmental standards
• Sustainability: Carries Schneider Electric’s Green Premium™ label for sustainable design and manufacturing.


Suitability

• Install the QDF22100TS in industrial facilities, commercial properties, or residential panels where you need reliable overcurrent protection. Its high fault-handling capacity and quick-acting trip unit help keep your electrical system safe while meeting modern code and safety requirements.
