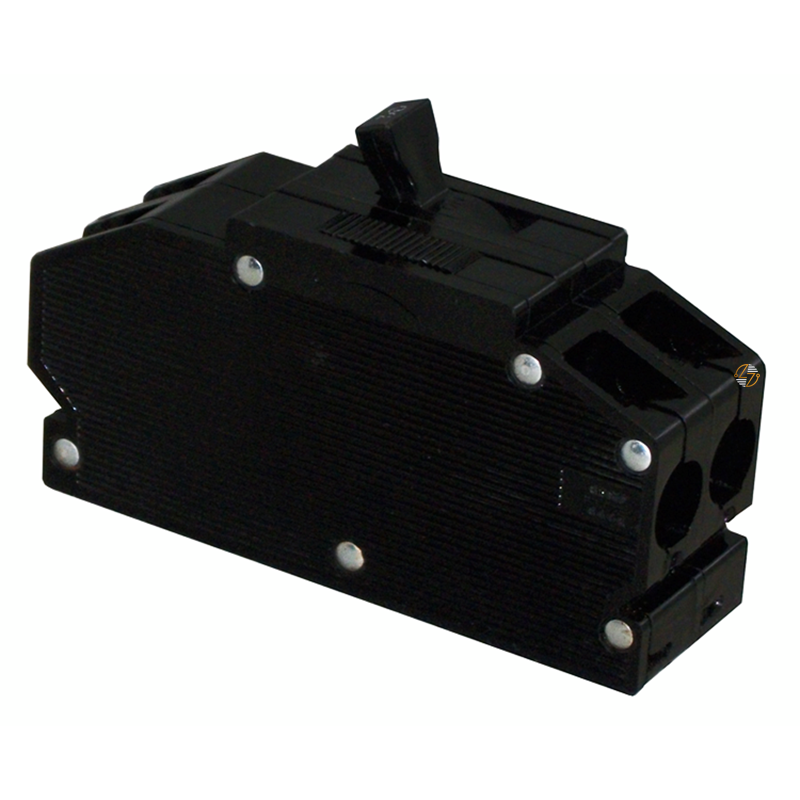

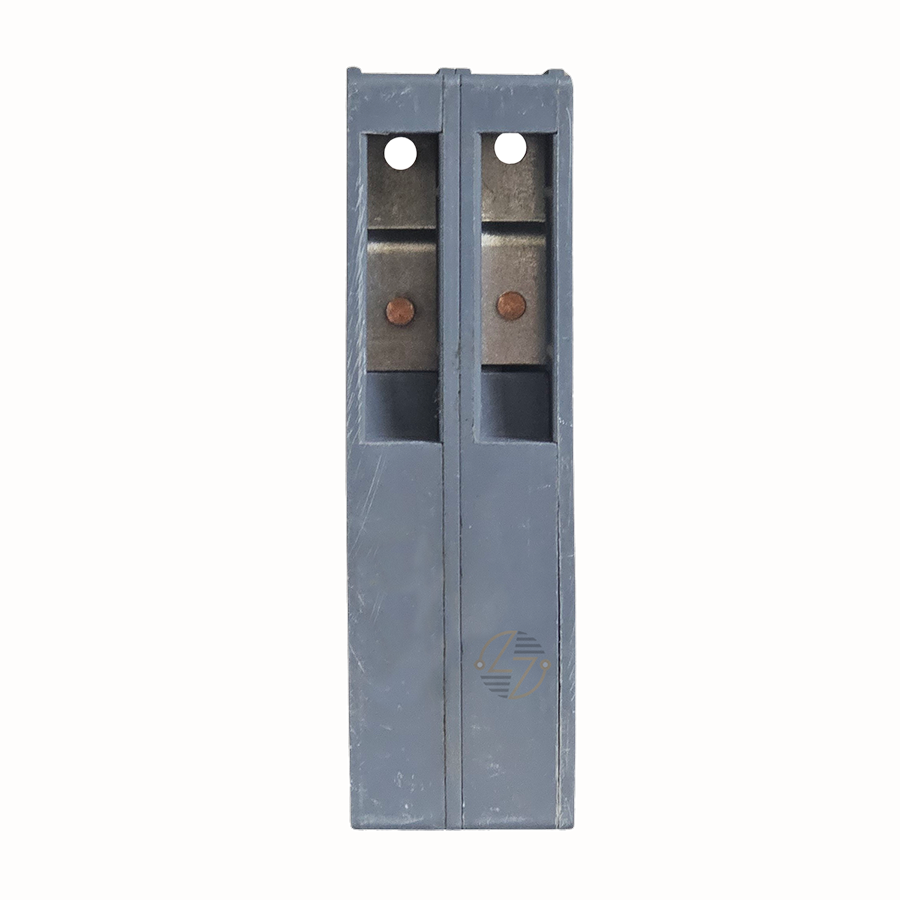

QCB60 - 60 Amp Circuit Breaker

QCB60 - 60 Amp Circuit Breaker

The QCB60 60 amp circuit breaker is a solid option when you need dependable two-pole protection without giving up space in the panel. It’s designed for 120/240 VAC systems and carries a 10,000 amp A.I.C. rating, which means it can handle serious fault conditions before they become expensive problems. The compact QCB frame makes this breaker easier to work with in panels that are already full, especially during upgrades or replacements. It’s a straightforward, no-nonsense breaker built for everyday electrical loads in residential and light commercial environments.

Key Features and Benefits

• 10,000 A.I.C. Rating – Helps protect wiring and connected equipment during short circuits and overloads.
• 2-Pole Configuration – Covers two circuits in one breaker, reducing clutter inside the panel.
• Compact QCB Frame – Designed to fit where space is limited and clean installations matter.
• Consistent Performance – Built to handle regular use without frequent nuisance trips.

Technical Specifications

• Poles: 2
• Current Rating: 60 Amps
• Voltage Rating: 120/240 VAC
• Interrupting Rating: 10,000 A A.I.C. @ 120/240 VAC
• Frame Type: QCB
• Dimensions:
  • Width: 1.50 in
  • Length: 4.81 in
  • Depth: 2.50 in
• Weight: 2.25 lbs

Material Compliance and Certifications

• The QCB60 is manufactured using materials that meet UL safety standards and is tested for performance and reliability.
• It’s built to align with current electrical codes, helping reduce issues during installation and inspection while supporting long-term system safety.

Where It Works Best

• Residential service panels and sub-panels
• Light commercial electrical installations
• HVAC circuits
• Small machinery and equipment circuits
• Workshops and utility areas
