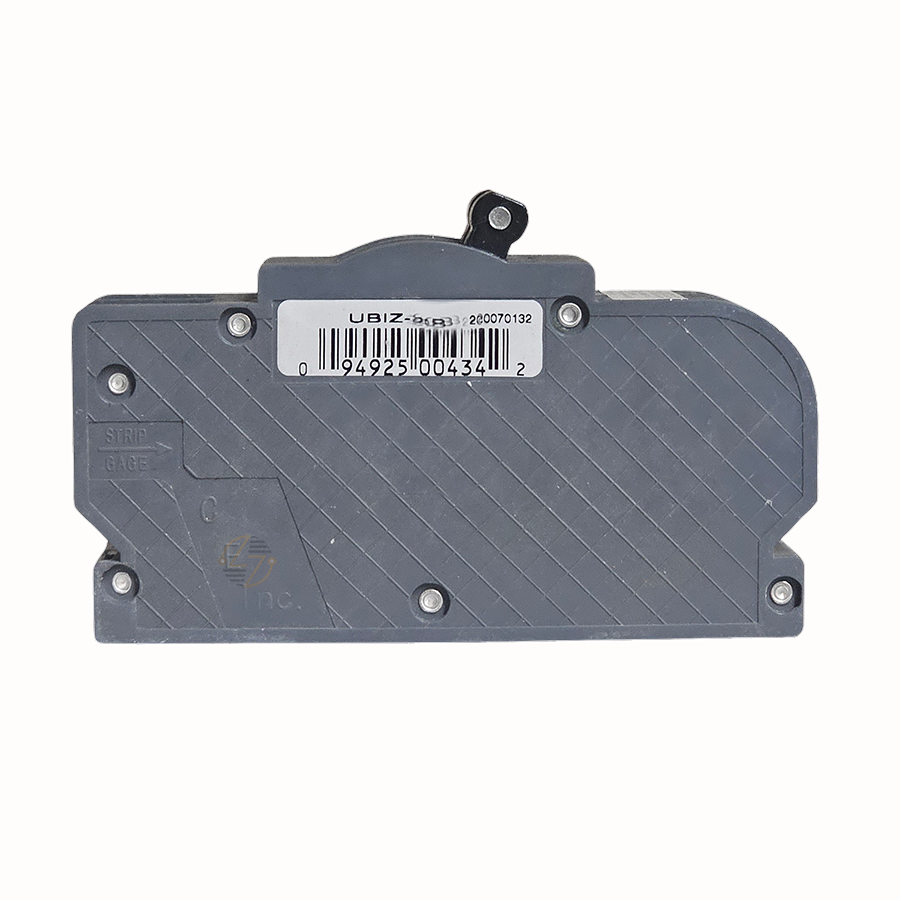

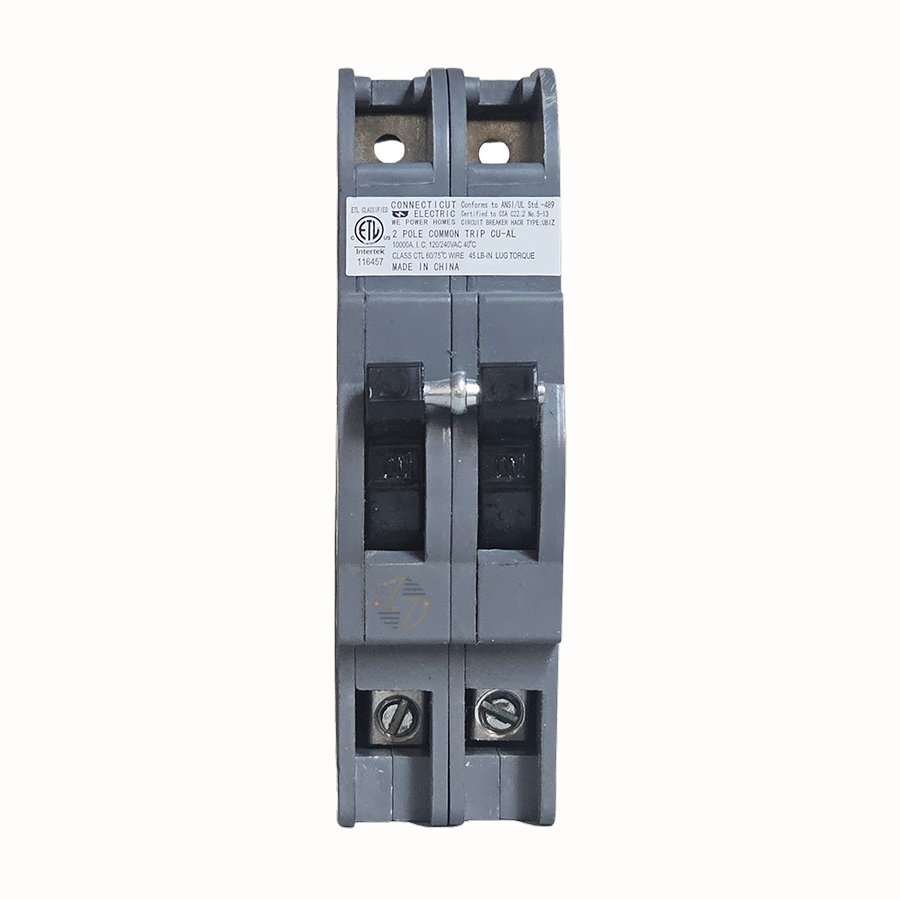

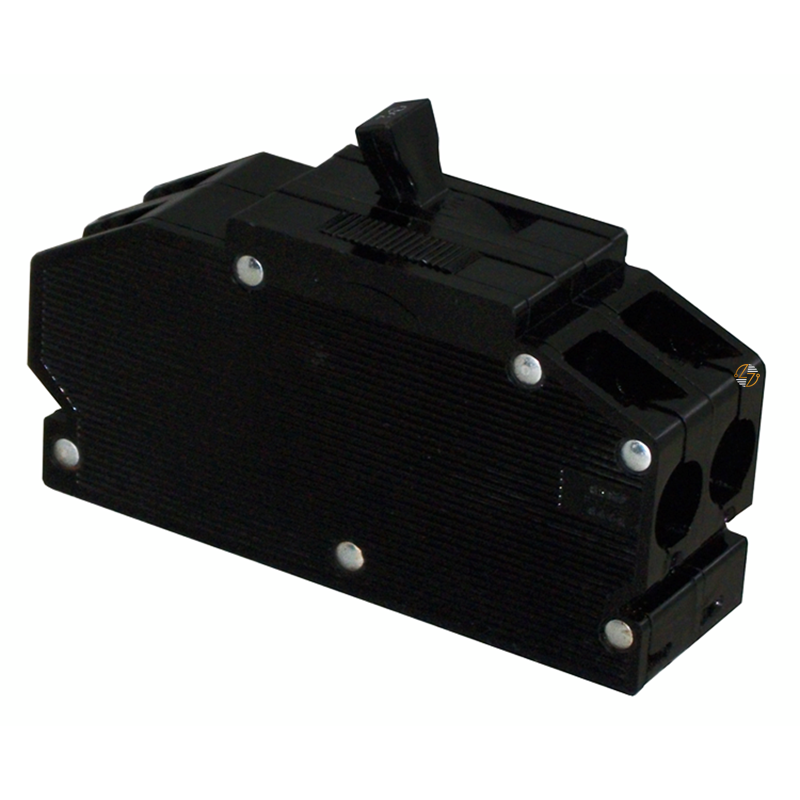

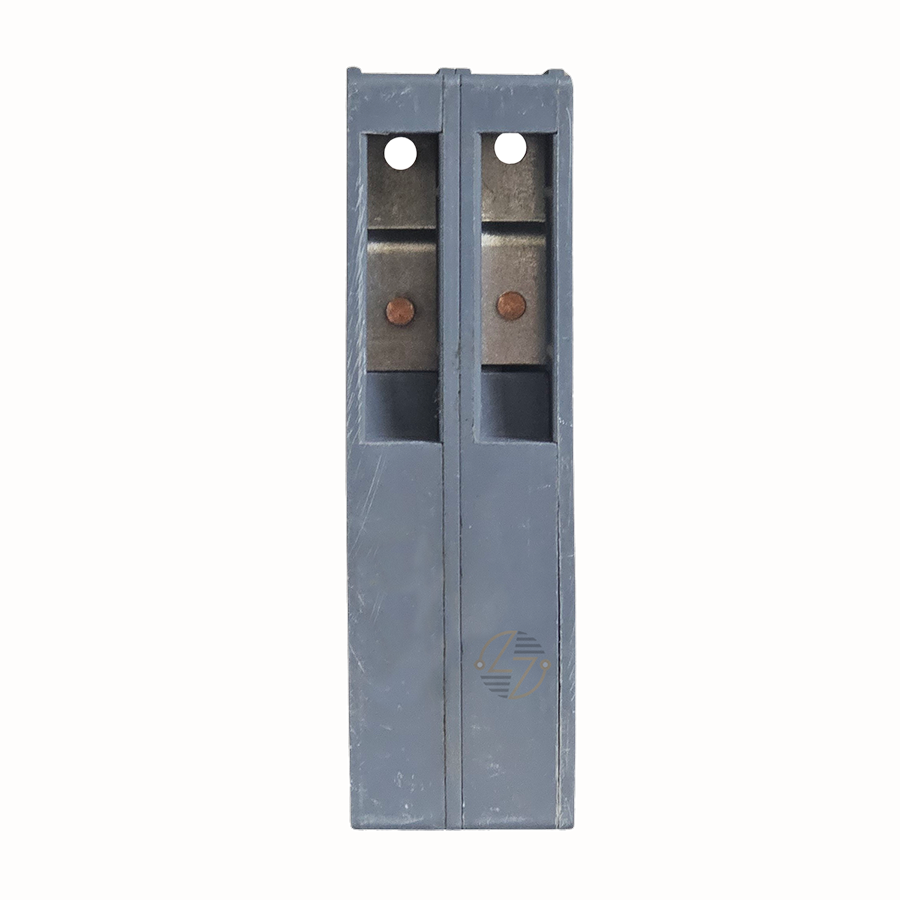

QCB15 - 15 Amp Circuit Breaker

QCB15 - 15 Amp Circuit Breaker

The QCB15 is a 2-pole, 15-amp bolt-on circuit breaker designed for use in your compatible electrical distribution equipment requiring a Type QCB breaker. Rated for 120/240VAC applications with a 10kA interrupting capacity (A.I.C.), it provides branch circuit protection by interrupting overloads and short circuits before they can damage connected equipment or wiring. Its bolt-on mounting design helps you to provide a secure mechanical and electrical connection within compatible panelboards, making it a practical form, fit, and functional replacement for existing installations. Built to last, the QCB15 is well suited for maintaining and servicing electrical systems where matching the original breaker type and ratings is essential for proper operation.

Key Features and Benefits

• 15 Amp current rating for branch circuit protection.
• 2-pole configuration for 120/240VAC applications.
• Bolt-on mounting provides a secure installation in compatible equipment.
• Type QCB circuit breaker for form, fit, and functional replacement in compatible panelboards.
• 10kA A.I.C. rating at 120/240VAC for interrupting available fault current within its listed capacity.
• Compact design simplifies installation in spaces where space is limited.
• Built to last for continued service in properly maintained electrical systems.


Technical Specifications

• Part Number: QCB15

• Type: QCB

• Product Type: Bolt-On Circuit Breaker

• Poles: 2

• Amperes: 15A

• Voltage Rating: 120/240VAC

• Interrupting Rating (A.I.C.): 10kA @ 120/240VAC

• Dimensions:
  • Height: 4.81 in.
  • Width: 1.50 in.
  • Depth: 2.50 in.

Material Compliance and Certifications

• Designed for use in compatible electrical distribution systems requiring a Type QCB circuit breaker.
• Intended for installation by qualified personnel in accordance with applicable electrical codes and manufacturer requirements.
• Verify compatibility with the existing panelboard and electrical system before installation to ensure proper fit and operation.


Where It Works Best

• The QCB15 is well suited for commercial, industrial, and institutional electrical distribution systems that utilize compatible Type QCB bolt-on panelboards. It is commonly used to protect 120/240VAC branch circuits serving lighting, receptacles, and other general electrical loads where a 2-pole, 15-amp circuit breaker with a 10kA interrupting rating matches the original equipment requirements. Its form, fit, and functional compatibility make it an ideal choice for maintaining existing electrical systems while preserving the installation's intended design.
