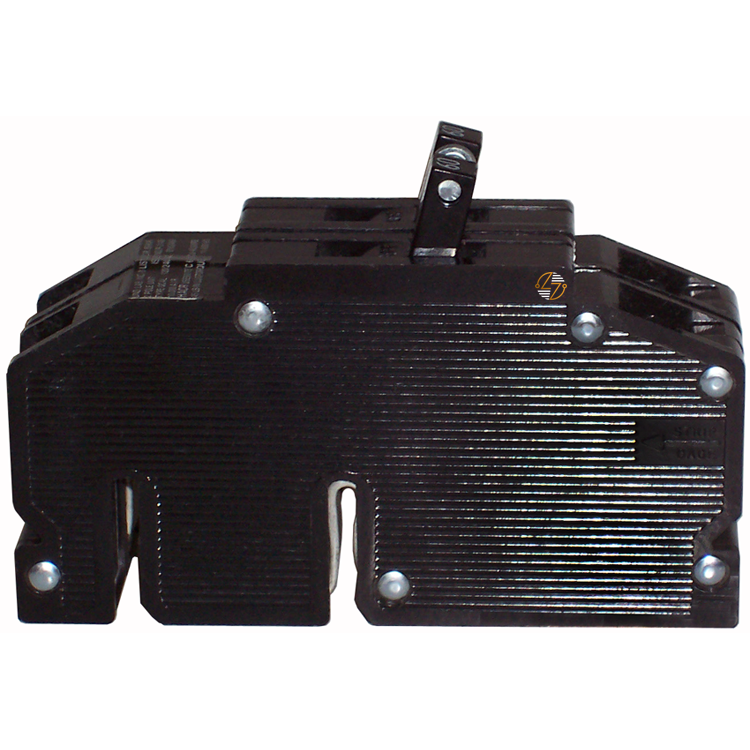

QCAL100 - 100Amp Circuit Breaker

QCAL100 - 100Amp Circuit Breaker

The QCAL100 is a 100-amp, 2-pole QC plug-on thermal-magnetic circuit breaker designed as a direct replacement for the original QCAL100. It is made to match the original breaker's form, fit, and function, allowing it to fit the existing mounting location without panel modifications.

Rated for 120/240VAC with a 10kA interrupting capacity, this breaker is intended for use in your compatible load centers and electrical distribution panels where the original QCAL100 was installed. Its thermal-magnetic trip mechanism helps you to protect electrical circuits from overloads and short circuits while maintaining the same electrical ratings as the original application.

Whether you're repairing an existing panel or replacing a worn breaker in a legacy electrical system, this aftermarket replacement offers a practical solution while maintaining compatibility with the original installation.

Key Features and Benefits

• Designed as a direct replacement for the QCAL100.
• Matches the original form, fit, and function.
• 100 Amp, 2-pole configuration.
• QC plug-on design for compatible panels.
• Thermal-magnetic protection against overloads and short circuits.
• Rated 10kA at 120/240VAC.
• Fits the original breaker location without modification.
• Suitable for maintaining existing electrical systems.


Technical Specifications

• Part Number: QCAL100

• Amperage: 100 Amps

• Poles: 2

• Type: QC

• Mounting Style: Plug-On

• Trip Type: Thermal-Magnetic

• Voltage Rating: 120/240VAC

• Interrupt Rating: 10kA

• Dimensions:
  • Height: 4.81 in
  • Width: 1.50 in
  • Depth: 2.50 in

Material Compliance and Certifications

• This replacement breaker is manufactured for use in compatible electrical systems and is designed to meet applicable industry requirements for its intended application.
• Always verify compatibility with your panel before installation.
• Have electrical work completed by a qualified electrician when required by local codes.


Where It Works Best

• The QCAL100 replacement breaker is well-suited for replacing original breakers in compatible residential, commercial, and light-industrial electrical panels. It is intended for maintaining existing electrical systems where the original QCAL100 was installed, making it a practical choice for repairs and routine maintenance.
