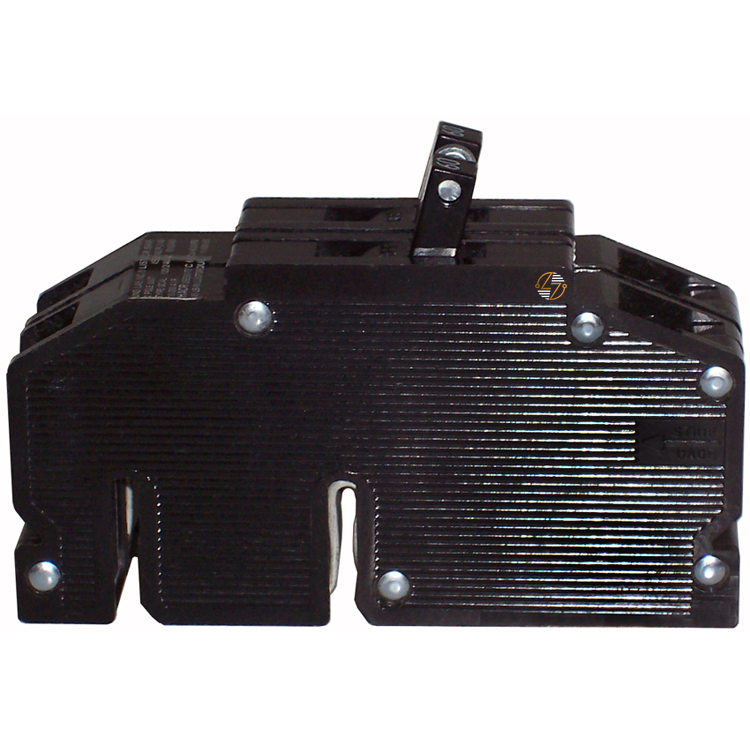

QC50 - 50Amp Circuit Breaker

QC50 - 50Amp Circuit Breaker

The QC50 is a 50-amp, 2-pole plug-on thermal-magnetic circuit breaker designed for use in your compatible QC series panels. This aftermarket replacement fits the same mounting location as the original QC50 and carries a 120/240VAC rating with a 10k A I.C. interrupting capacity. Its thermal-magnetic trip unit responds to both overloads and short circuits, providing branch-circuit protection in residential and light-commercial electrical systems. The plug-on design allows the breaker to install in compatible load centers without modifying the existing panel. Before replacing any circuit breaker, verify that the panel requires a QC-type breaker with matching electrical ratings.

Key Features and Benefits

• Aftermarket replacement for QC50 applications.
• 50 Amp rating.
• Two-pole configuration.
• Plug-on installation.
• Thermal-magnetic trip unit.
• Rated 120/240VAC.
• 10k A.I.C. interrupting capacity.
• Built to last.
• Form, fit, and functional replacement for compatible QC series panels.


Technical Specifications

• Part Number: QC50

• Type: QC

• Amperage: 50A

• Poles: 2

• Voltage: 120/240VAC

• Interrupting Rating: 10k A.I.C.

• Trip Mechanism: Thermal-Magnetic

• Mounting Style: Plug-On

• Dimensions:
  • Height: 4.81 in.
  • Width: 1.50 in.
  • Depth: 2.50 in.

Material Compliance and Certifications

• This replacement breaker is manufactured for use as a form, fit, and functional replacement in compatible QC applications. Verify compatibility before installation and follow all applicable electrical codes. Installation should be completed by a qualified person familiar with electrical distribution equipment.


Where It Works Best

• Use this breaker in compatible QC series load centers and panelboards that require a 50 Amp, 2-pole plug-on circuit breaker. It is commonly used during the maintenance and repair of existing electrical systems in which the original QC50 configuration is specified.
