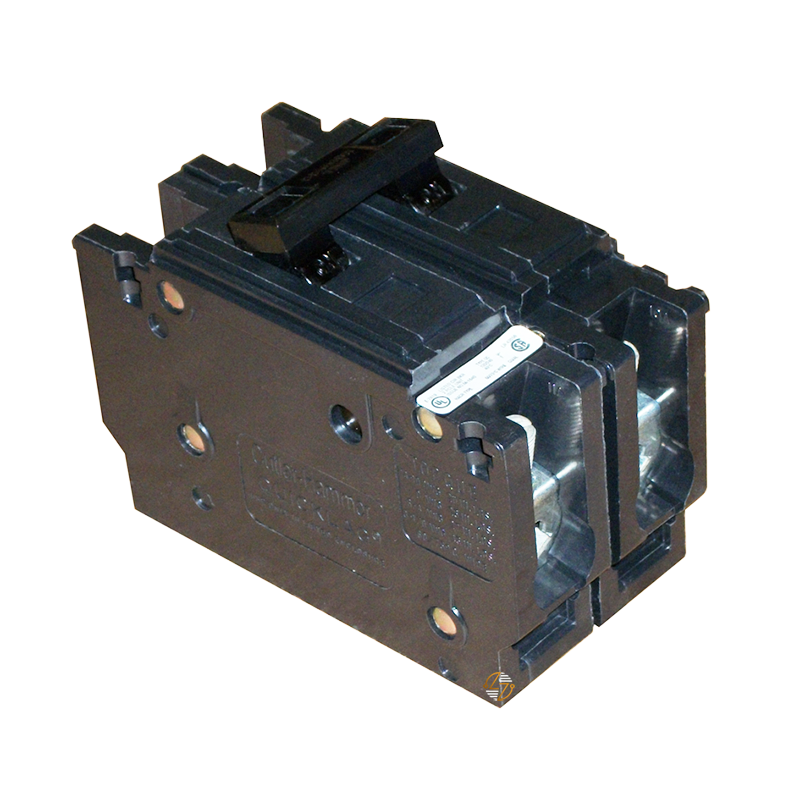

QC2015 - 15 Amp Circuit Breaker

QC2015 - 15 Amp Circuit Breaker

The QC2015 is a 2-pole, 15-amp Type QC circuit breaker rated for your 120/240 VAC systems with a 10 kAIC interrupting capacity. It uses a thermal-magnetic trip mechanism to protect branch circuits from overloads and short circuits, and is built for operation in ambient temperatures up to 40°C.

This breaker features a Quicklag design with a Cable-In/Cable-Out connection and carries an HACR rating for qualifying heating and air conditioning applications. Its compact size makes it a practical replacement for compatible equipment or a suitable choice for your new installations requiring a 2-pole 15-amp breaker.

Key Features and Benefits

• 15 Amp Current Rating: 15 Amp current rating.
• Two-Pole Breaker: Two-pole breaker.
• Type QC: Type QC.
• 120/240VAC Rating: 120/240VAC.
• 10k AIC Interrupting Rating: 10k AIC interrupting rating.
• Thermal Magnetic Trip: Thermal magnetic trip.
• Quicklag Design: Quicklag design.
• Cable-In/Cable-Out Configuration: Cable-In/Cable-Out configuration.
• HACR Rated: HACR rated.
• 40°C Ambient Operation: Designed for 40°C ambient temperatures.


Technical Specifications

• Part Number: QC2015

• Type: QC

• Poles: 2

• Amperage: 15 Amps

• Voltage: 120/240VAC

• Interrupting Rating: 10k AIC

• Trip Type: Thermal Magnetic

• Configuration: Cable-In/Cable-Out

• HACR Rated: Yes

• Ambient Temperature: 40°C

• Dimensions:
  • Height: 3.75 in.
  • Width: 2.00 in.
  • Depth: 2.50 in.

Material Compliance and Certifications

• HACR Rated: HACR rated.
• 40°C Ambient Operation: Designed for use in ambient temperatures up to 40°C.
• Installation Requirements: Install only in compatible equipment and in accordance with applicable electrical codes.


Where It Works Best

• The QC2015 is commonly used in residential, commercial, and light industrial electrical systems that require a 2-pole, 15-amp breaker. It can be used on compatible branch circuits that serve lighting, receptacles, HVAC equipment, and other 120/240 VAC loads.
