QBP32225TP - 225 Amp Circuit Breaker

QBP32225TP - 225 Amp Circuit Breaker

The QBP32225TP is a 3-pole, 225 amp thermal magnetic circuit breaker designed to provide dependable overcurrent and short-circuit protection for your commercial and industrial electrical distribution systems. Built with a non-interchangeable trip unit, this breaker delivers consistent, factory-calibrated performance to help you safeguard connected equipment while supporting reliable system operation. Featuring a 10kA interrupting capacity at 240VAC, the QBP32225TP is well suited for applications requiring dependable circuit protection in panelboards, switchboards, and other power distribution equipment. Its configuration includes 1/4-20" studs on the line side for secure incoming connections and lug terminals on the load side to simplify installation and maintenance. Whether you're replacing an existing breaker or maintaining critical electrical infrastructure, the QBP32225TP offers the performance and reliability professionals expect in demanding environments.

Key Features and Benefits

• 225 Amp Current Rating: 225 Amp current rating for high-capacity commercial and industrial applications.
• Three-Pole Design: Three-pole design provides protection for three-phase electrical systems.
• Thermal Magnetic Trip Mechanism: Thermal magnetic trip mechanism helps protect against both overloads and short circuits.
• Non-Interchangeable Trip Unit: Non-interchangeable trip unit ensures factory-set, consistent protection characteristics.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 240VAC for dependable fault interruption.

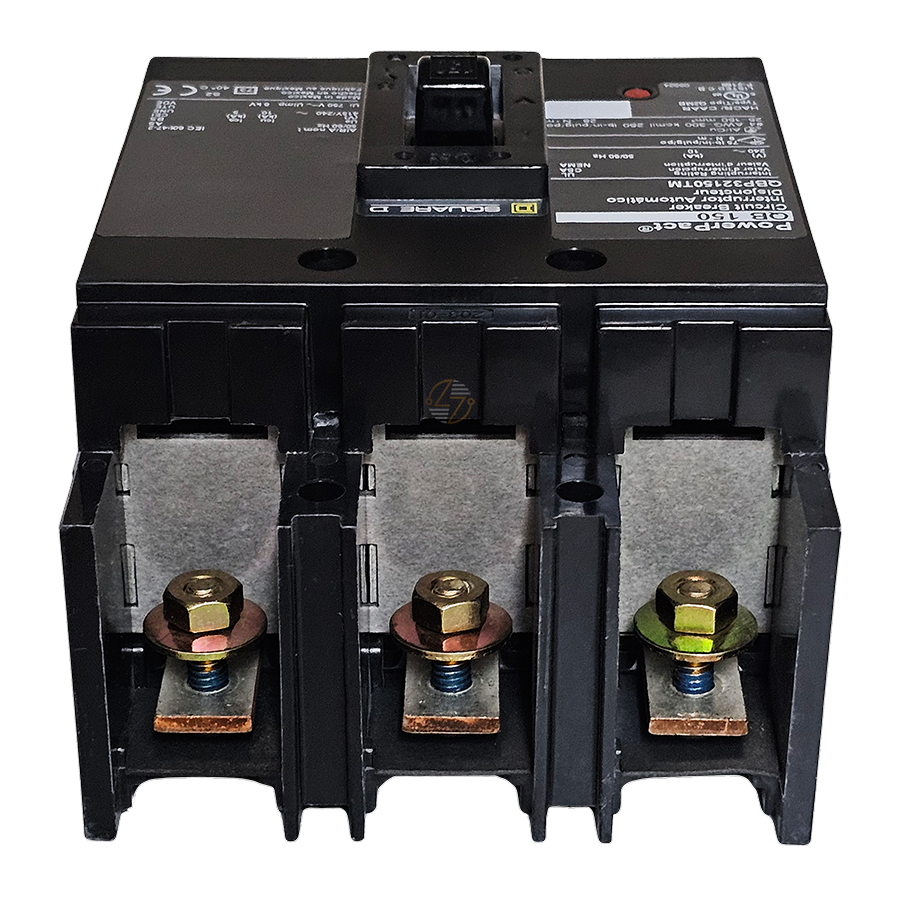

• Line-Side Connection: 1/4-20" line-side studs provide secure incoming power connections.
• Load-Side Connection: Load-side lug terminals allow for straightforward conductor termination.
• Reliable Equipment Protection: Designed to support reliable operation while helping protect electrical equipment from damage caused by overcurrent conditions.

Technical Specifications

• Part Number: QBP32225TP

• Type: QBP

• Circuit Breaker Type: Thermal Magnetic

• Trip Unit: Non-Interchangeable

• Poles: 3

• Amperage: 225 Amp

• Interrupting Rating: 10kA @ 240VAC

• Line Side Connection: 1/4-20" Studs

• Load Side Connection: Lug Terminals

• Dimensions:
  • Height: 6.5 in.
  • Width: 4.5 in.
  • Depth: 3.13 in.

Material Compliance and Certifications

• Industry Standards: The QBP32225TP is manufactured for use in electrical power distribution systems and is designed to meet applicable industry performance standards for its product class.
• Installation Requirements: Always verify compatibility with your existing equipment and ensure installation is performed in accordance with applicable electrical codes, manufacturer requirements, and local regulations.


Where It Works Best

• The QBP32225TP is an excellent choice for a variety of commercial and industrial electrical systems where dependable overcurrent protection is essential. Typical applications include commercial buildings, industrial facilities, manufacturing plants, distribution panels and panelboards, switchboards, facility maintenance and equipment upgrades, and three-phase power distribution systems. Its combination of a 225A rating, thermal magnetic protection, and 3-pole configuration makes the QBP32225TP a dependable solution for protecting electrical systems while helping maintain safe, efficient operation.
