QBP22200TM - 200 Amp Circuit Breaker

QBP22200TM - 200 Amp Circuit Breaker

The Schneider Electric QBP22200TM circuit breaker is built for electricians and facility managers who need dependable protection for their electrical systems. Part of the PowerPacT Q Series, this 2-pole, 200-amp breaker handles up to 240 volts AC and is designed to quickly respond to overloads and short circuits. Whether you’re upgrading a home panel, maintaining a commercial building, or managing industrial equipment, this breaker delivers steady, reliable performance you can count on day after day.

Key Features and Benefits

• Handles 10kA fault currents at 240 VAC: Helps keep your system safe.
• Thermal magnetic trip feature: Automatically reacts to both quick surges and long-term overloads.
• Rated for 1,000 on-load and 5,000 off-load operations: Giving it a long working life.

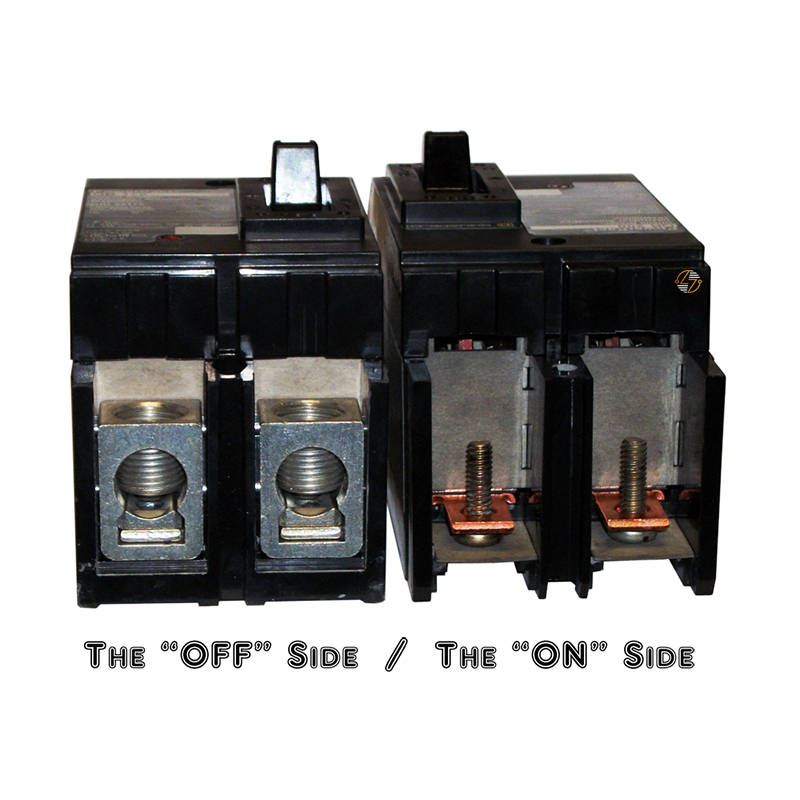

• Installs easily: Terminal nuts on the line side and lugs on the load side save time during setup.


Technical Specifications

• Voltage: 240 VAC (50/60 Hz)

• Interrupting Capacity: 10kA @ 240V

• Poles: 2

• Current: 200 Amps (80% continuous)

• Mounting: Unit mount

• Dimensions:
  • Height: 6.47 inches
  • Width: 3 inches
  • Depth: 3.93 inches
• Terminals: Terminal nut (line), lugs (load)

• Torque: 247.82 lbf·in (28 N·m)

• Durability: 1,000 cycles under load, 5,000 without load


Material Compliance and Certifications

• Certified Green Premium Product by Schneider Electric: RoHS and REACh compliant—no mercury, PVC, or hazardous materials.
• Halogen-free: Making it safer for people and environmentally friendly.


Suitability

• This breaker is a great fit for homes, offices, and industrial facilities. It’s commonly used in panel boards, switchgear, and other key power systems to protect lighting, HVAC equipment, machinery, and general electrical circuits. Perfect for both new installs and system upgrades where reliable protection is critical.
